3 individually screened 18AWG conductors in underwater polyurethane cable. 3-core for ROV 3-phase motor power, solenoid control, and subsea power distribution.
A 3-core underwater screened cable with 3 x 18AWG individually screened conductors in a PUR jacket. Commonly used for ROV thruster 3-phase motor power supply (brushless DC motor phases), solenoid valve 3-wire control, and compact subsea power distribution where 3 independent ~10A channels are needed in a single cable.
| Parameter | Specification |
|---|---|
| Conductors | 3 x 18AWG (individually screened) |
| Current per Conductor | ~10A (subsea derated) |
| Jacket Material | Polyurethane (PUR) |
| Voltage Rating | 300V RMS |
| Temperature Range | -30°C to +80°C |
| Depth Rating | Up to 4,000 m |
| Overall Shield | Foil + braid |
Request 3-core 18AWG underwater cable technical data: sales@rovcable.com -- Shanghai Kabel Intelligence Technology Co., Ltd.
Yes. This is one of the most common applications for 3 x 18AWG screened cable. The 3 conductors carry the U, V, W phases from the ESC to the thruster motor. The individual screening and overall shield minimise PWM switching noise that could interfere with subsea sensor signals.
Yes. For motor drive applications, drain wires should be connected to the ESC chassis ground at one end only. Floating the drain wire at the motor end prevents ground loops while still providing effective EMI suppression of motor switching transients.

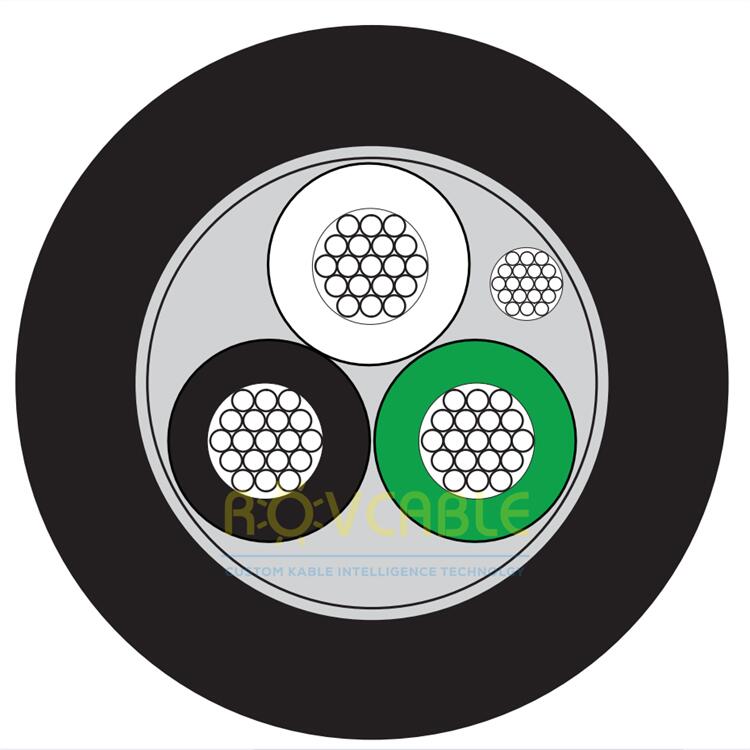

3X18AWG Underwater Screened polyurethane cables
3 conductors, 18 AWG Overall screen with foil and drain wire Nominal cable OD: 0.259'', 6.58 mm
