4 individually screened 20AWG conductors in underwater polyurethane cable. Compact 4-core signal cable for ROV and subsea instrumentation.
A compact 4-core underwater screened cable with 4 x 20AWG individually screened conductors and a PUR outer jacket. The standard choice for ROV signal interfaces and subsea instrument connections requiring 4 independent, noise-immune channels. Lightweight, flexible, and available in custom lengths.
| Parameter | Specification |
|---|---|
| Conductors | 4 x 20AWG (individually screened) |
| Jacket Material | Polyurethane (PUR) |
| Voltage Rating | 300V RMS |
| Temperature Range | -30°C to +80°C |
| Depth Rating | Up to 4,000 m |
| Overall Shield | Foil + braid |
| Flex Life | High -- suitable for dynamic ROV applications |
Order 4-core 20AWG underwater cable: sales@rovcable.com -- Shanghai Kabel Intelligence Technology Co., Ltd.
The conductors support RS-485, RS-232, CAN bus, 0--10V analogue, 4--20mA, PWM, and discrete digital signals. They can be configured as 2 differential pairs (RS-485/CAN) or 4 individual channels depending on your system requirements.
Yes. We produce custom lengths from 10 m to several kilometres on a drum. Minimum order quantities may apply for very long drums. Contact us for lead time and pricing on long-length orders.
4X20AWG Underwater Screened polyurethane cables

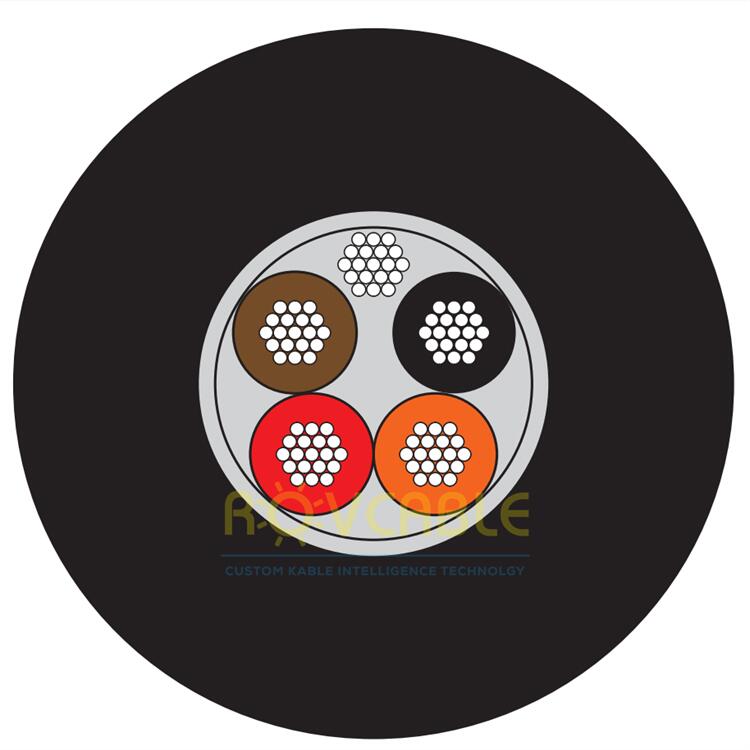

4 conductors, 20 AWG Overall screen with foil and drain wire Nominal cable OD: 0.311'', 7.90 mm
