8 conductors 22AWG underwater polyurethane cable. Compact 8-core for ROV and subsea multi-function signal and control applications.

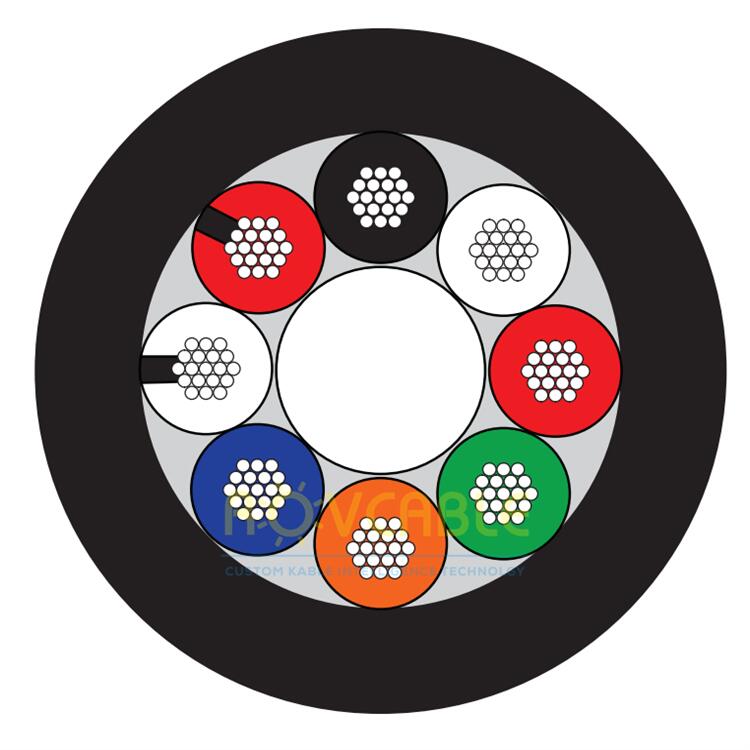

A compact 8-core underwater cable with 8 x 22AWG conductors in a PUR jacket. Providing 8 independent channels in a small-OD, flexible cable, it is suitable for ROV multi-function control, subsea sensor arrays, and underwater instrument interfaces where weight and drag minimisation are important.
| Parameter | Specification |
|---|---|
| Conductors | 8 x 22AWG |
| Jacket Material | Polyurethane (PUR) |
| Voltage Rating | 300V RMS |
| Temperature Range | -30°C to +80°C |
| Depth Rating | Up to 4,000 m |
| Shielding | Optional |
| Colour Coding | 8-colour standard |
For 8-core underwater cable in custom lengths: sales@rovcable.com -- Shanghai Kabel Intelligence Technology Co., Ltd.
22AWG conductors in a PUR cable carry approximately 3--4A (subsea derated). For higher current applications, we offer 20AWG, 18AWG, or 16AWG 8-core variants. Contact us for the appropriate gauge for your load.
Yes. We offer individually screened 22AWG versions and overall-shielded versions. For applications near variable-speed drives or PWM thruster controllers, individual screening is recommended to prevent inter-channel interference.
