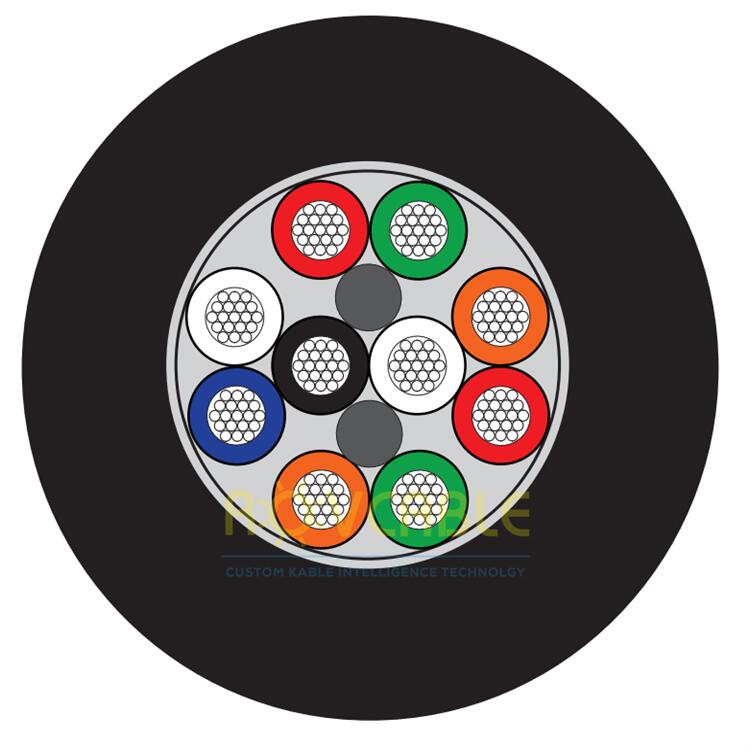

10 conductors 18AWG subsea polyurethane cable. 10-core high-current cable for complex ROV umbilicals and subsea multi-function power-control systems.
This heavy-duty 10-core subsea cable with 10 x 18AWG conductors in a PUR jacket is designed for complex ROV umbilical and subsea control systems requiring 10 high-current channels. At approximately 10A per conductor (subsea derated), this cable can simultaneously power 3+ thruster motors (3 phases each + spares), solenoid valves, and lighting loads from a single cable.
| Parameter | Specification |
|---|---|
| Conductors | 10 x 18AWG |
| Current per Conductor | ~10A (subsea derated) |
| Jacket Material | Polyurethane (PUR) |
| Voltage Rating | 300V RMS |
| Temperature Range | -30°C to +80°C |
| Depth Rating | Up to 4,000 m |
| Colour Coding | 10-colour standard |
For complex umbilical specifications and pricing: sales@rovcable.com -- Shanghai Kabel Intelligence Technology Co., Ltd.
Yes. 3 thruster motors x 3 phases = 9 conductors, with 1 conductor spare. All 10 conductors at ~10A each provide adequate current for three 100--200W ROV thrusters operating simultaneously at full power.
Yes. We can add Kevlar braid or galvanised steel wire armour to this cable for tensile strength in winch-deployed or deep-tether applications. Specify your working load and deployment depth when enquiring.
