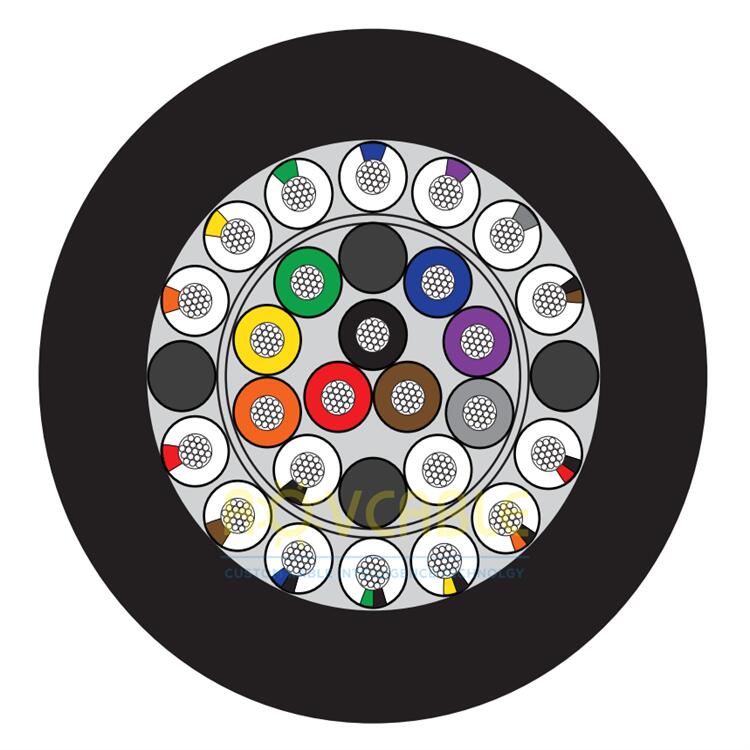

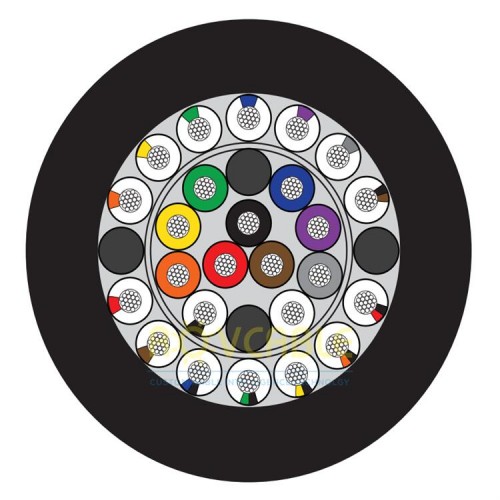

22-conductor subsea polyurethane cable. Maximum conductor count for complex ROV umbilicals and multi-function subsea control requiring 22 independent channels.
The 22-conductor subsea PUR cable is our highest conductor count standard product for ROV and complex subsea systems. With 22 independent channels available, this cable can accommodate even the most demanding ROV configurations -- combining thruster power phases, manipulator control, sonar interface, sensor inputs, lighting, and spare channels in a single compact umbilical.
| Parameter | Specification |
|---|---|
| Conductors | 22 x (custom AWG -- 20AWG standard) |
| Jacket Material | Polyurethane (PUR) |
| Voltage Rating | 300V RMS |
| Temperature Range | -30°C to +80°C |
| Depth Rating | Up to 4,000 m |
| Shielding | Overall braid (individual optional) |
| Conductor ID | Colour + numeric grouping |
Design your 22-core custom umbilical: sales@rovcable.com -- Shanghai Kabel Intelligence Technology Co., Ltd.
Yes. We can produce mixed-gauge 22-core cables, e.g. 6 x 16AWG for thruster power + 16 x 22AWG for signal and control. This optimises OD and weight while meeting the current requirements of each channel. Provide your wiring map and we will design the optimal configuration.
Yes. We can integrate 2--8 single-mode or multimode fibres alongside the 22 copper conductors in a combined optical-electrical umbilical. This enables simultaneous high-bandwidth data (via fibre) and multi-channel power/control (via copper) in a single cable.
Subsea polyurethane 22 Single conductor cables
22 conductors, 20 AWG 3 conductors, 18 AWG Nominal cable 14.96 mm
