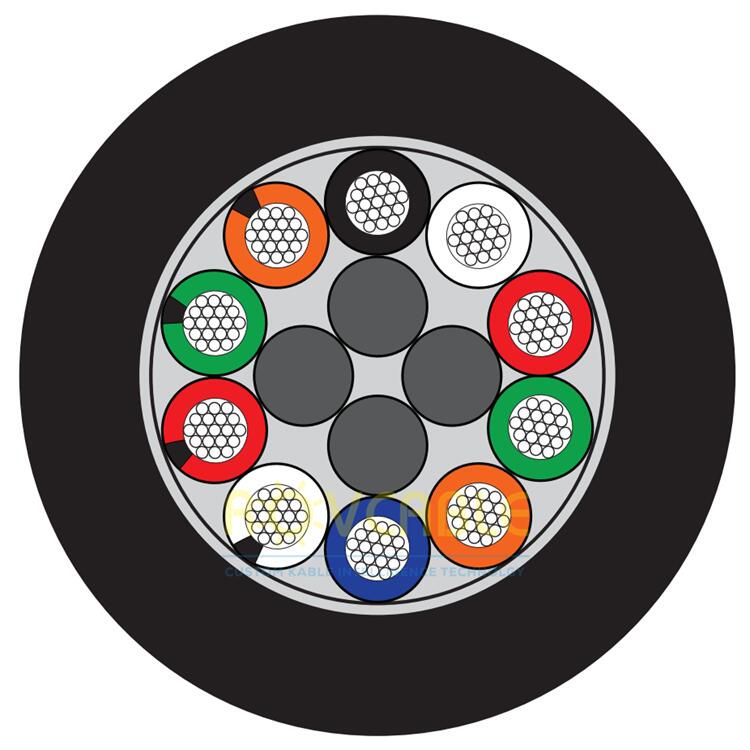

10 conductors 16AWG subsea polyurethane cable. High-power 10-core for work-class ROV umbilicals and subsea high-current power distribution systems.
Designed for work-class ROV and demanding subsea power distribution applications, this 10-core subsea cable delivers 10 x 16AWG conductors at approximately 13A per conductor (subsea derated) in a PUR jacket. It supports high-power thruster configurations, heavy-duty hydraulic power unit drives, and multi-circuit subsea power distribution.
| Parameter | Specification |
|---|---|
| Conductors | 10 x 16AWG |
| Current per Conductor | ~13A (subsea derated) |
| Jacket Material | Polyurethane (PUR) |
| Voltage Rating | 300V RMS |
| Temperature Range | -30°C to +80°C |
| Depth Rating | Up to 4,000 m |
| Armour Option | Kevlar / steel wire available |
Discuss work-class ROV umbilical specifications: sales@rovcable.com -- Shanghai Kabel Intelligence Technology Co., Ltd.
This cable supports both DC (up to 300V DC) and AC power (300V AC RMS). For higher voltage subsea power transmission (e.g. 3,000V AC for deep-sea umbilicals), we offer dedicated high-voltage cable variants. Contact us for your voltage requirements.
Yes. Kevlar braid or galvanised steel wire armour can be added. For work-class ROV umbilicals requiring breaking strengths of 2,000--10,000 kg, we design a combined power-signal-armour umbilical. Contact us with your tensile and depth specifications.
