16 conductors 22AWG underwater screened polyurethane cable. Compact multi-core for ROV and subsea multi-channel signal and instrumentation applications.

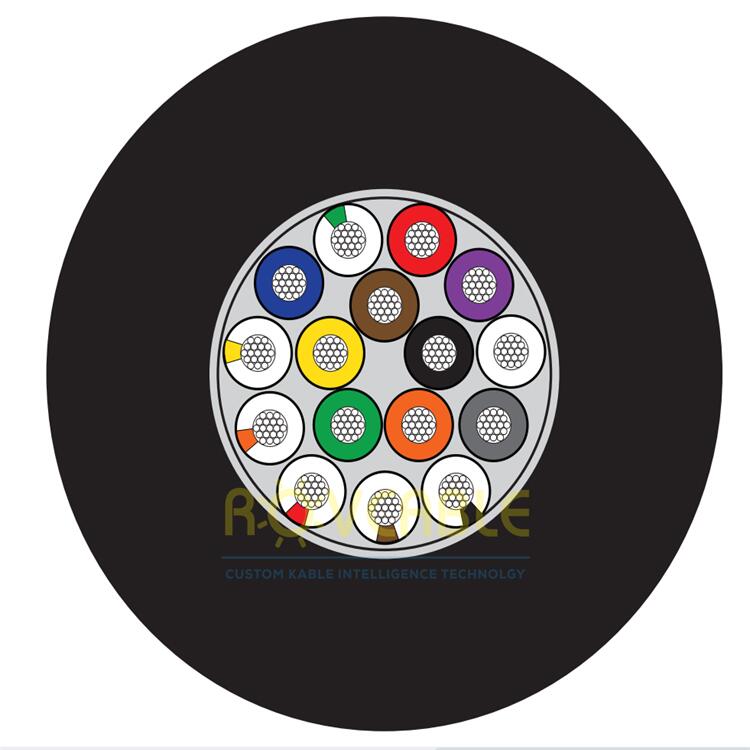

A compact multi-core underwater cable with 16 individually screened 22AWG conductors in a polyurethane jacket. The 22AWG gauge provides a smaller overall diameter than 16AWG or 20AWG alternatives, making this cable ideal for space-constrained ROV platforms and compact subsea instrument assemblies requiring up to 16 signal channels.
| Parameter | Specification |
|---|---|
| Conductors | 16 x 22AWG (individually screened) |
| Jacket Material | Polyurethane (PUR) |
| Voltage Rating | 300V RMS |
| Temperature Range | -30°C to +80°C |
| Depth Rating | Up to 4,000 m |
| Overall Shield | Foil + braid |
| Typical OD | Compact (smaller than 20AWG equivalent) |
Enquire about compact 16-core underwater cable specifications: sales@rovcable.com -- Shanghai Kabel Intelligence Technology Co., Ltd.
22AWG conductors are rated for approximately 3--5A in open air. Underwater (subsea PUR jacket), derated values of 3--4A are typical. For higher current applications, we recommend 20AWG, 18AWG, or 16AWG alternatives.
Yes. We apply a standard 16-colour code to distinguish all conductors. Custom numerical printing on individual conductors is also available for high-conductor-count cables. Please specify your preference when ordering.
