7 individually screened 20AWG conductors in underwater polyurethane cable. 7-channel signal and control for ROV subsystems and subsea instrument interfacing.

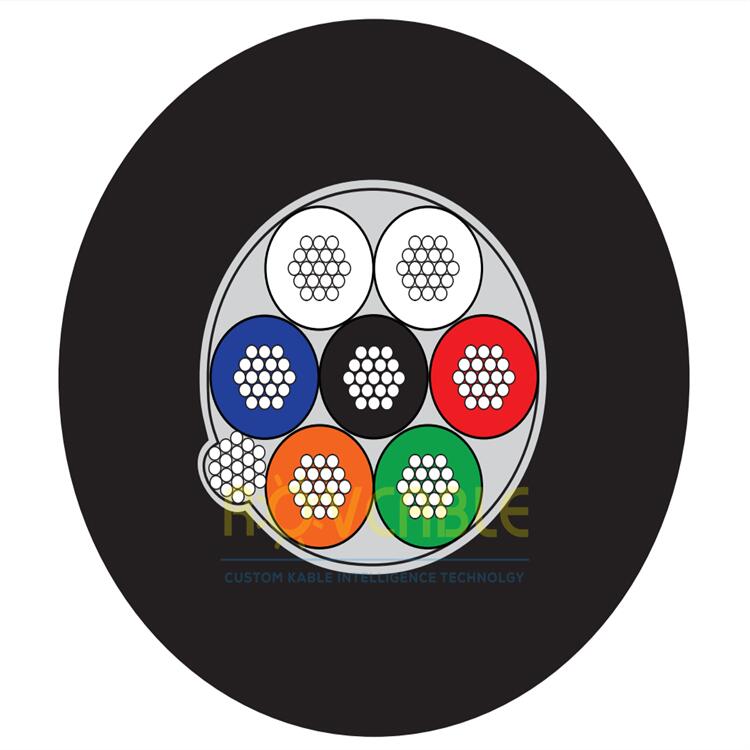

This compact 7-core underwater cable provides 7 individually screened 20AWG conductors in a PUR jacket. Commonly used for ROV systems requiring control of multiple devices through a single cable -- such as a 4-thruster ROV with heading, depth, and camera signals occupying 7 independent channels -- in a single drag-optimised cable run.
| Parameter | Specification |
|---|---|
| Conductors | 7 x 20AWG (individually screened) |
| Jacket Material | Polyurethane (PUR) |
| Voltage Rating | 300V RMS |
| Temperature Range | -30°C to +80°C |
| Depth Rating | Up to 4,000 m |
| Overall Shield | Foil + braid |
Order 7-core underwater screened cable: sales@rovcable.com -- Shanghai Kabel Intelligence Technology Co., Ltd.
Yes. 7-core is a widely used configuration for underwater cameras, small ROVs, and subsea instrument interfaces. The 7 conductors typically accommodate: 2 x power, 2 x RS-485 data, 1 x video sync, 1 x spare, and 1 x ground/shield -- matching many standard subsea connector pinouts.
Yes. We apply standard IEC or custom colour coding to 7-core cables. Common schemes: BK/BN/RD/OG/YE/GN/BU or custom per your connector wiring standard. Specify when ordering.
