Fibre Optic + Power Hybrid Cable with Kevlar Reinforcement

This advanced subsea hybrid cable combines fibre optic elements (single-mode or multimode) with copper power conductors and a Kevlar aramid braid for tensile reinforcement, all enclosed in a PUR outer jacket. Purpose-built for ROV tether applications requiring high-bandwidth fibre optic data (HD video, Gigabit Ethernet, acoustic telemetry) alongside power delivery at depth -- with the tensile strength to support the cable's own weight and the ROV/payload mass.

Key Applications

• ROV fibre optic tether cables
• Deep-sea vehicle high-bandwidth data links
• Subsea HD and 4K video transmission
• Ocean floor observatory fibre power feeds
• Military ROV and unmanned underwater vehicle (UUV) tethers

Request fibre optic hybrid cable datasheets and custom configurations: sales@rovcable.com -- Shanghai Kabel Intelligence Technology Co., Ltd.

Frequently Asked Questions

What bandwidth can fibre optic elements achieve at depth?

Single-mode fibre (G.652D) supports bandwidth limited only by the transceiver, practically achieving 10Gbps+ over several kilometres with no depth-induced attenuation. This enables full-HD, 4K, and even 8K video streaming from deep-sea ROVs.

How is the fibre protected inside the cable?

Each fibre is housed in a tight-buffered or loose-tube construction with gel filling and surrounded by Kevlar yarn. The overall Kevlar braid provides additional crush and tensile protection. The cable passes a minimum bend radius of 20x OD to prevent fibre damage during deployment.

Fiber Optic And Power Hybrid cable, Kevlar Type

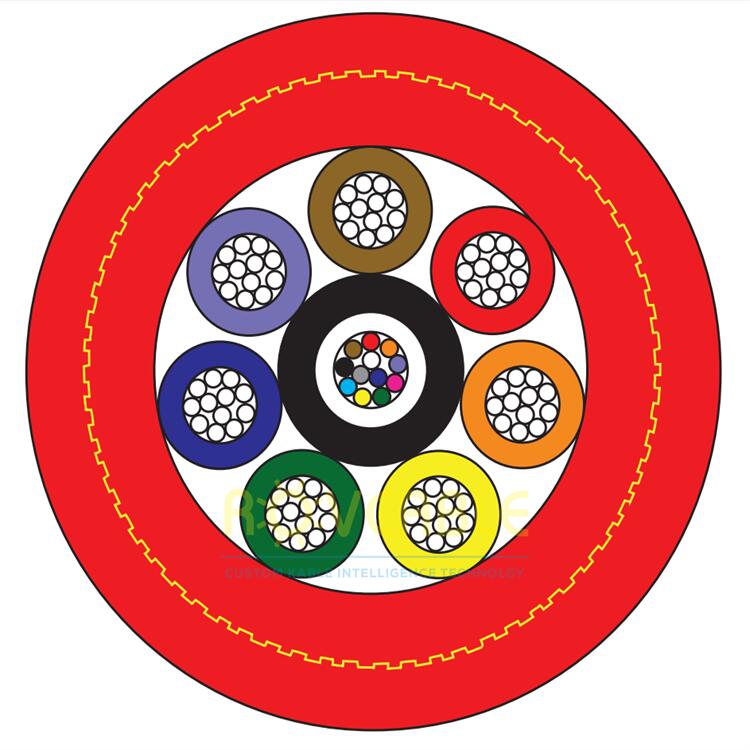

Construction characteristics

Fiber Optic Element SS RING with six single mode fibre SMF (9/125).

Conductors  1,0 mm² (18 AWG) stranded tinned copper conductor with dual wall insulation system.

Primary jacket PE. O.D. 2,23 mm (7 each) Wrap  Mylar tape

Inner Jacket Polyurethane inner jacket, 1,3 mm wall thickness

Strength Member High strength Kevlar braid

Outer Jacket Polyurethane outer jacket, 1,5 mm wall thickness

Colour of jackets  Red

Applications

• Underwater cable assemblies for ROV, AUV and subsea vehicle power and signal delivery
• Subsea sensor and instrument cabling requiring flexible, abrasion-resistant PUR jackets
• Marine renewable energy cable connections, offshore platform and coastal installations
• Underwater lighting, camera and video system cable assemblies with connector terminations
• Custom umbilical cables for oceanographic research and temporary subsea deployments

Customization Options

• Custom cable lengths from 1m to 1000m+ with specified conductor counts and gauges
• Direct moulding termination to any ROV Connector series for complete cable assemblies
• Neutral buoyancy options, Kevlar reinforcement and specialized jacket colors available
• Certified cable tension, flex and pressure testing with full test documentation
