2x2.0mm2 power + 2 twisted pairs 0.22mm2 signal with Kevlar braid underwater cable. High tensile strength for deep ROV tether and subsea deployment.
This Kevlar-braided underwater cable combines 2 x 2.0mm2 power conductors with 2 shielded twisted pairs at 0.22mm2 for signal, wrapped in a high-tenacity Kevlar (aramid) braid and PUR outer jacket. The Kevlar reinforcement provides exceptional tensile strength, enabling the cable to function as a structural tether as well as a power and signal conduit for ROV systems.
| Parameter | Specification |
|---|---|
| Power Conductors | 2 x 2.0 mm² |
| Signal Pairs | 2 x 2 x 0.22 mm² (shielded twisted pairs) |
| Reinforcement | Kevlar (aramid) braid |
| Breaking Strength | 600--1,500 kg (custom available) |
| Jacket Material | Polyurethane (PUR) |
| Voltage Rating | 300/500V RMS |
| Temperature Range | -30°C to +80°C |
| Depth Rating | Up to 6,000 m |
Request Kevlar strength test certificates: sales@rovcable.com -- Shanghai Kabel Intelligence Technology Co., Ltd.
Yes, with appropriate Kevlar braid density. A standard configuration achieves 600--1,000 kg breaking strength, suitable for most observation-class ROVs. For work-class ROVs (up to 3,000+ kg in water), we can provide heavier Kevlar braid or steel wire armour variants.
No. The Kevlar braid is electrically non-conductive and is located outside the foil-shielded signal pairs, so it has no effect on signal integrity or EMI performance.
2X2.0mm2+ 2X2X0.22mm2 Power and signal Underwater Cable Braided Kevlar

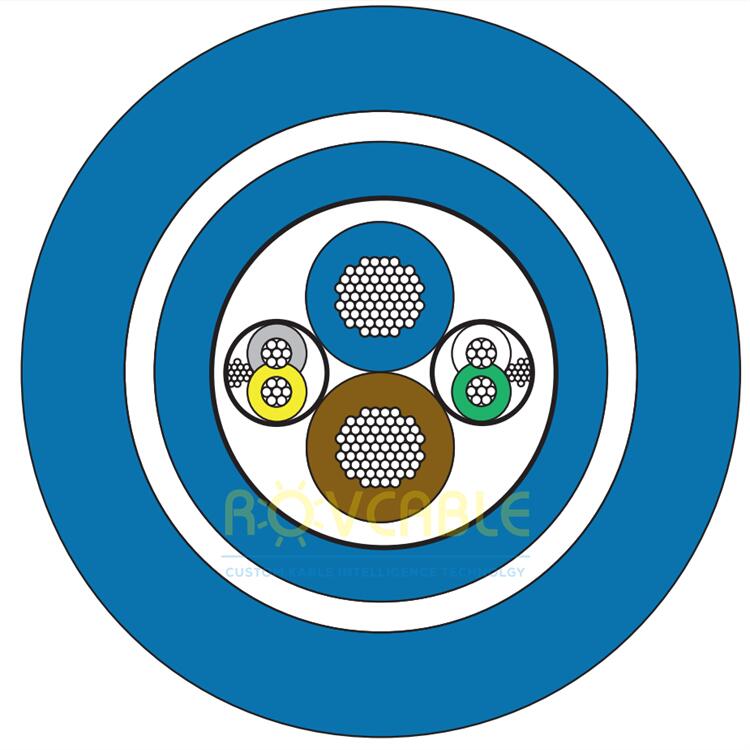

Construction characteristics
Power conductors 2.00 mm² bare copper conductor insulated with PVC (2 each)
Shielded twisted pair 0.22 mm² bare copper conductor insulated with PE.
Two conductors twisted together with a tinned copper drain wire and aluminium/polyester foil.
Inner jacket PVC jacket Inner jacket Polyurethane jacket
Strength member Braided Kevlar
Outer jacket Polyurethane jacket. Color blue
