2x1.0mm2 power + 6 twisted pairs 0.22mm2 signal underwater cable. PUR jacket, 6-channel signal transmission, ideal for ROV and subsea instrumentation control systems.
This multi-pair underwater cable combines 2 x 1.0mm2 power conductors with 6 individually shielded twisted signal pairs at 0.22mm2, all enclosed in a durable PUR jacket. The six signal channels enable complex control and instrumentation functions -- such as sensor feedback, RS-485 communications, and solenoid valve control -- alongside power delivery in a single, drag-minimising cable.
| Parameter | Specification |
|---|---|
| Power Conductors | 2 x 1.0 mm² |
| Signal Pairs | 6 x 2 x 0.22 mm² (twisted, individually shielded) |
| Voltage Rating | 300V RMS |
| Jacket Material | Polyurethane (PUR) |
| Temperature Range | -30°C to +80°C |
| Depth Rating | Up to 3,000 m |
| Overall Shield | Foil + braid |
| Flex Life | High -- suitable for dynamic tether applications |
Request a datasheet or custom pair configuration: sales@rovcable.com -- Shanghai Kabel Intelligence Technology Co., Ltd.
Yes. The shielded twisted pairs are fully compatible with RS-485 differential signalling. With the signal pair characteristics and proper termination, RS-485 runs up to several hundred metres are achievable.
For subsea applications, we recommend single-end grounding to avoid ground loop issues. The individual pair shields can be floated at the remote end and grounded at the control unit end. Our technical team can advise on the optimal grounding strategy for your application.

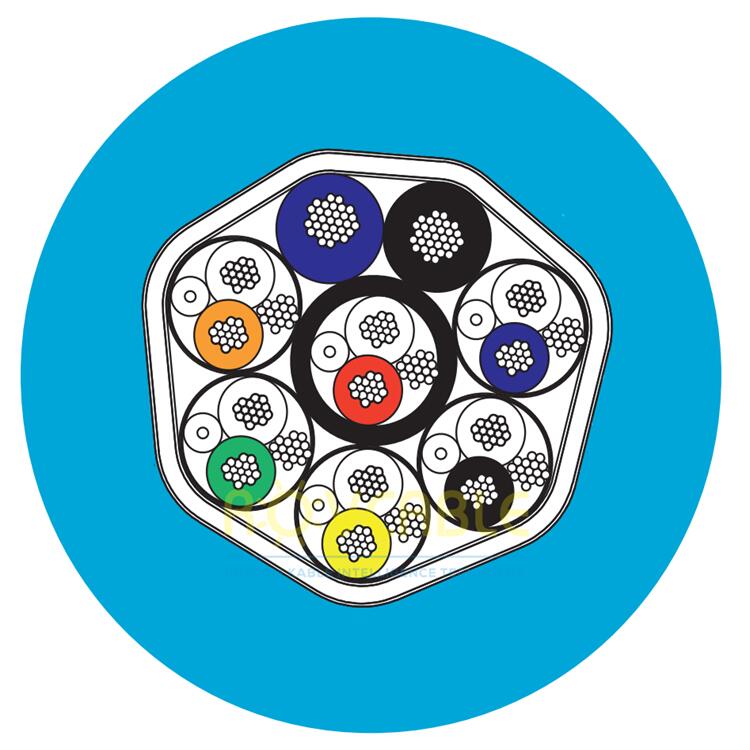

2X1.0mm2+ 6x2x0.22mm2 Power/signal cable
Construction characteristics
Power conductors 1.00 mm² bare copper conductor insulated with PE (2 each)
Shielded twisted pairs 0.22 mm² bare copper conductor insulated with PE.
Two conductors twisted together with a tinned copper drain wire, aluminium/polyester foil and a PE sheath (1 each)
Shielded twisted pairs 0.22 mm² bare copper conductor insulated with PE.
Two conductors twisted together with a tinned copper drain wire and an aluminium/polyester foil (5 each)
Shield Tinned copper braid, coverage 85% Outer jacket Polyurethane jacket, blue
