Multi-function underwater hybrid cable combining power, signal, and Ethernet conductors. PUR jacket, compact design for ROV and subsea system integration.
The Underwater Hybrid Cable integrates power conductors, signal pairs, and Ethernet twisted pairs into a single compact cable assembly, enclosed in a durable PUR outer jacket. Designed for next-generation ROV tether and subsea integration applications, this hybrid cable eliminates the need for multiple separate cables, reducing drag, weight, and installation complexity.
| Parameter | Specification |
|---|---|
| Cable Functions | Power + Signal + Ethernet (combined) |
| Jacket Material | Polyurethane (PUR) |
| Voltage Rating | 300/500V RMS |
| Temperature Range | -30°C to +80°C |
| Depth Rating | Up to 4,000 m |
| Shielding | Per-pair shields + overall braid |
| Kevlar Option | Available on request |
| Conductor Configuration | Custom -- contact us for your spec |
Discuss your hybrid cable specification: sales@rovcable.com -- Shanghai Kabel Intelligence Technology Co., Ltd.
Yes. We manufacture hybrid cables combining single-mode or multimode fibre optic elements with copper power and signal conductors. Fibre optic hybrid cables are ideal for high-bandwidth data over long subsea cable runs. Contact us with your fibre count and copper requirements.
OD depends on conductor count and armour type, but compact hybrid cables with power + 4 signal pairs + 4 Ethernet pairs typically range from 10--20 mm OD. We optimise OD for minimum drag and maximum flexibility.

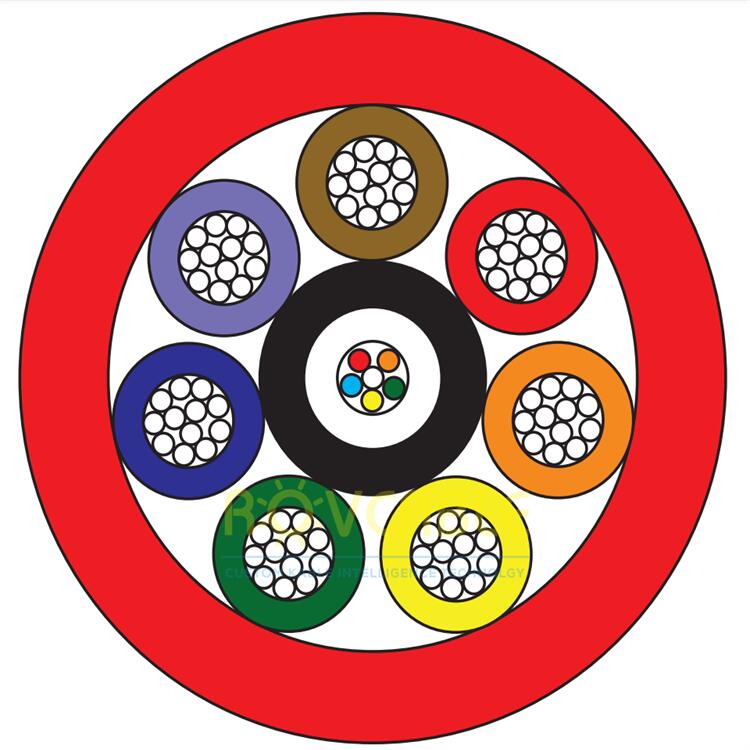

Underwater Hybrid cable
Construction characteristics
Fiber Optic Element SS RING with six single mode fibre SMF (9/125)
Conductors 1,0 mm² (18 AWG) stranded tinned copper conductor with dual wall insulation system.
Primary jacket PE. O.D. 2,23 mm (7 each) Wrap Mylar tape
Outer Jacket Polyurethane outer jacket, 1,5 mm wall thickness
Colour of jackets Red
