Fibre Optic + Power Underwater Hybrid Cable with Kevlar (Subsea Type)

This subsea-optimised hybrid cable integrates fibre optic elements for high-bandwidth data with copper power conductors and a Kevlar braid tensile member, wrapped in a PUR jacket rated for underwater deployment. An evolution of the standard fibre-power hybrid, this design emphasises maximum tensile strength and depth resistance for demanding deep-sea ROV tether applications.

Key Applications

• Deep-sea ROV fibre optic tether systems
• AUV (Autonomous Underwater Vehicle) recovery tethers
• Long-range subsea data link cables
• Deepwater scientific instrument cables
• Naval and defence UUV applications

Enquire about fibre count, power rating, and Kevlar specifications: sales@rovcable.com -- Shanghai Kabel Intelligence Technology Co., Ltd.

Frequently Asked Questions

What is the difference between this and the standard fibre hybrid (n=774)?

Both share the same fundamental design. This version (n=775) is optimised specifically as the subsea/underwater type with emphasis on water-blocking gel in the fibre unit and moisture-barrier tape layers, providing additional protection in long-term submerged deployments.

Can I get a neutrally buoyant version?

Yes. By selecting appropriate filler materials and adjusting the Kevlar density, we can achieve neutral buoyancy at a specified depth. This is a common requirement for ROV tethers to minimise drag on the vehicle during operation.

Fibre Optic And Power Underwater Hybrid Cable Kevlar Type

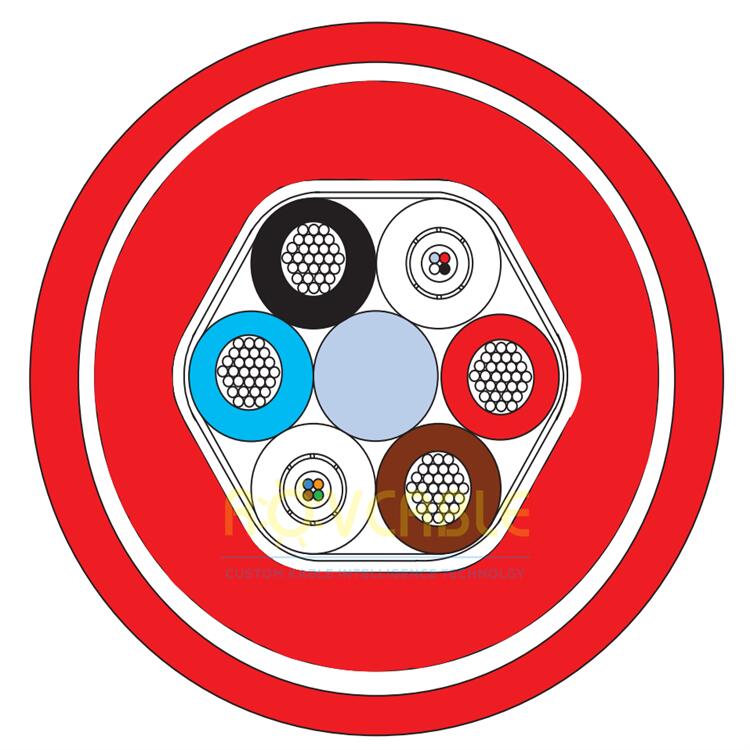

Construction characteristics

Fibre optic element (MM)  4 multi mode optical fibres  50/125 µm

Fibre optic element (SM) 4 single mode optical fibres 9/125 µm

Conductors 1.0 mm² stranded tinned copper conductor insulated with polyofin

Conductor colours: blue, black, red, brown (4 each)

Filler Filler element Inner jacket Polyurethane jacket, red Strength member Kevlar braiding Outer jacket Polyurethane jacket, red

Applications

• Underwater cable assemblies for ROV, AUV and subsea vehicle power and signal delivery
• Subsea sensor and instrument cabling requiring flexible, abrasion-resistant PUR jackets
• Marine renewable energy cable connections, offshore platform and coastal installations
• Underwater lighting, camera and video system cable assemblies with connector terminations
• Custom umbilical cables for oceanographic research and temporary subsea deployments

Customization Options

• Custom cable lengths from 1m to 1000m+ with specified conductor counts and gauges
• Direct moulding termination to any ROV Connector series for complete cable assemblies
• Neutral buoyancy options, Kevlar reinforcement and specialized jacket colors available
• Certified cable tension, flex and pressure testing with full test documentation
