Single mode underwater fibre optic cable with Kevlar braid reinforcement. PUR jacket, high tensile for deep ROV fibre tether deployments. G.652D fibres, custom count.
Combining the optical performance of single-mode G.652D fibres with the structural strength of a Kevlar (aramid) braid and the durability of a PUR jacket, this underwater fibre cable is engineered for ROV tether applications where the cable must simultaneously serve as the data link and the structural tether. Ideal for deep-sea deployments where high bandwidth, low latency, and tensile reliability are all critical.
| Parameter | Specification |
|---|---|
| Fibre Type | Single-Mode G.652D (OS2) |
| Fibre Count | 2--8 fibres (standard: 2 or 4) |
| Reinforcement | Kevlar (aramid) braid |
| Breaking Strength | 500--2,000 kg (custom) |
| Jacket Material | Polyurethane (PUR) |
| Depth Rating | Up to 6,000 m |
| Attenuation | ≤0.35 dB/km @1310 nm |
| Min Bend Radius | 20x OD |
For Kevlar strength certificates and fibre test reports: sales@rovcable.com -- Shanghai Kabel Intelligence Technology Co., Ltd.
Single-mode fibre supports 10 Gbps and beyond with appropriate SFP+ transceivers, enabling real-time 4K video, full-duplex sensor data, and control communications simultaneously. Over tether lengths of 100--3,000 m, single-mode fibre vastly outperforms copper alternatives.
Yes. The gel-filled loose tube construction ensures that hydrostatic pressure does not cause micro-bending losses in the fibre. At depths up to 6,000 m, the optical performance is maintained within specification.

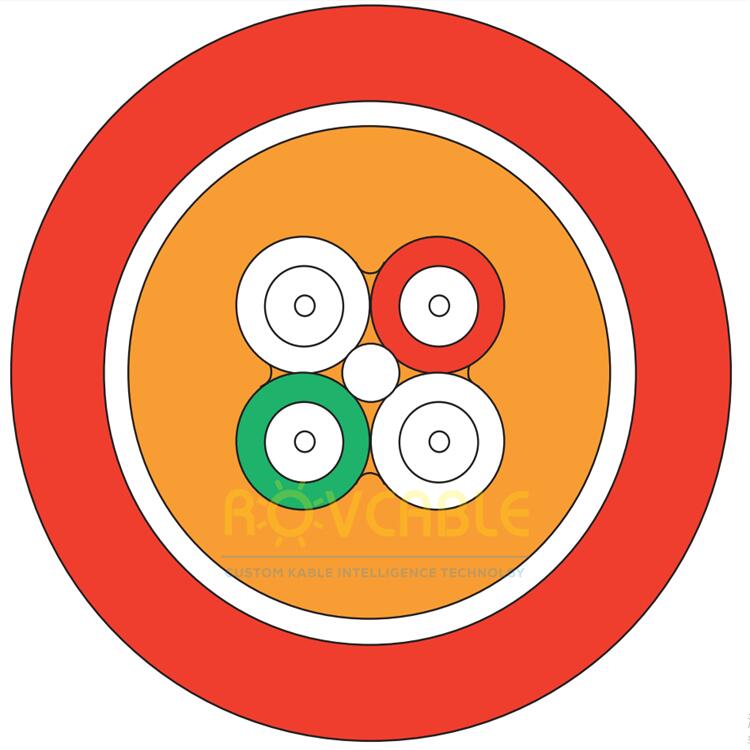

Underwater Fibre cable, single mode Kevlar Type
Construction characteristics Optical fibres Single mode 9/125/245 µm optical fibres
Inner jacket Polyurethane jacket Strength member Kevlar braiding Outer jacket Polyurethane jacket, red
