2x2.0mm2 power conductors + 2 twisted pairs 0.22mm2 signal underwater cable. PUR jacket, seawater resistant, compact ROV control and power cable.
A compact and efficient underwater cable combining 2 x 2.0mm2 power conductors with 2 shielded twisted pairs at 0.22mm2, enclosed in a PUR jacket. Ideal for ROV control lines, subsea actuator drives, and instrumentation power -- where a small cross-section and high flexibility are required alongside reliable power and signal performance.
| Parameter | Specification |
|---|---|
| Power Conductors | 2 x 2.0 mm² |
| Signal Pairs | 2 x 2 x 0.22 mm² (shielded twisted) |
| Voltage Rating | 300/500V RMS |
| Jacket Material | Polyurethane (PUR) |
| Temperature Range | -30°C to +80°C |
| Depth Rating | Up to 3,000 m |
| Shielding | Foil on each signal pair + overall braid |
| Kevlar Option | Available (see n=771) |
For datasheets and pricing: sales@rovcable.com -- Shanghai Kabel Intelligence Technology Co., Ltd.
In free air, 2.0mm2 conductors carry approximately 14--18A. Underwater (PUR jacket, seawater cooling), the rating is similar or slightly better due to the thermal properties of seawater. Apply derating factors per IEC 60364-5-52 for your specific installation.
Yes -- see our Kevlar variant (same conductor spec plus aramid braid) which provides additional tensile strength for ROV tether applications. Contact us to compare both options.
2X2.0mm2+ 2X2X0.22mm2 Power and signal Underwater Cable

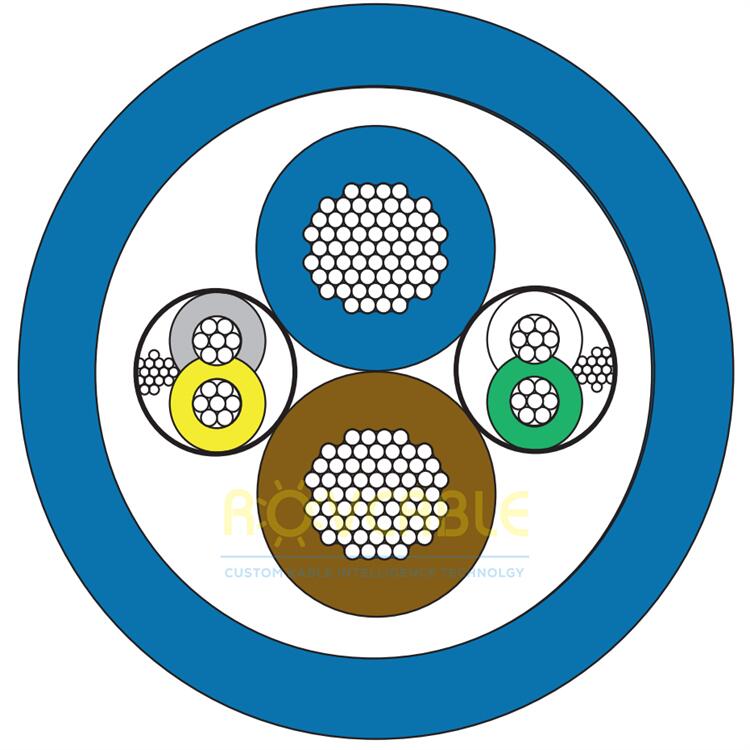

Construction characteristics
Power conductors 2.00 mm² bare copper conductor insulated with PVC (2 each)
Shielded twisted pair 0.22 mm² bare copper conductor insulated with PE.
Two conductors twisted together with a tinned copper drain wire and aluminium/polyester foil.
(2 each) Inner jacket PVC jacket Outer jacket Polyurethane jacket. Colour blue
