Underwater marine electrical cable combining Cat6 network and power conductors. For ROV LAN, subsea instrument power, and marine electrical infrastructure.

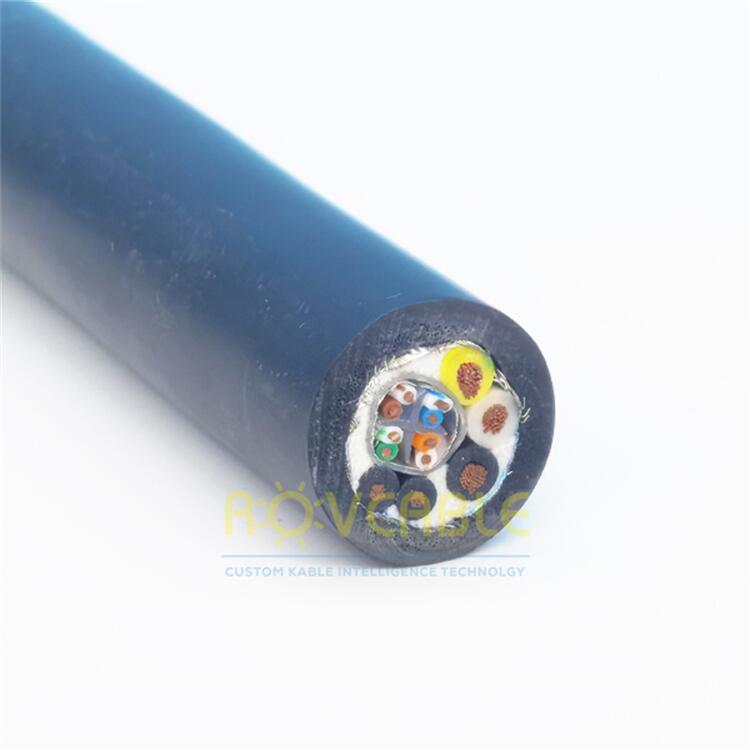

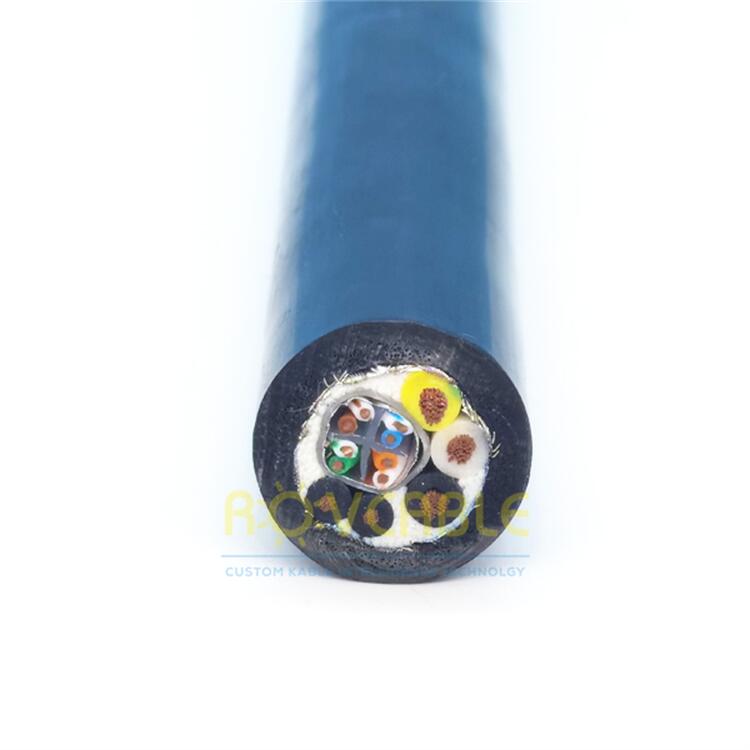

The underwater marine electrical cable combines Cat6 Ethernet pairs for high-speed network data with electrical power conductors for equipment power supply, all in a single PUR-jacketed assembly suitable for marine and subsea installation. The cable is built to marine-grade material standards, suitable for salt water immersion, UV exposure in the splash zone, and the mechanical stresses of marine deployment.
| Parameter | Specification |
|---|---|
| Network Pairs | Cat6 SFTP shielded twisted pairs |
| Power Cores | Multi-core tinned copper (size per spec) |
| Conductor Material | Stranded tinned copper |
| Outer Jacket | Polyurethane (PUR) -- marine grade |
| Temperature Range | -40°C to +80°C |
| Voltage Rating | 300V (signal) / 600V (power option) |
| Colour | Black |
| Custom | Cat6 pairs, power cores, overall diameter |
Request datasheet, custom length, or OEM pricing: sales@rovcable.com -- Shanghai Kabel Intelligence Technology Co., Ltd.
Yes. The PUR jacket is UV-resistant and suitable for the splash zone and above-water use as well as continuous submersion. For splash-zone use, specify the UV-stabilised PUR jacket compound when ordering.
Yes. A stainless steel wire armour or HDPE armoured jacket can be added for areas exposed to fish bites, abrasion, or trawl damage. Specify the armour type and environment (seabed, tidal zone, buried) when ordering.
