Multi-core power and data combined underwater cable in PUR jacket. Carries both power supply and data signals for ROV, subsea instruments, and underwater systems.
The power and data underwater cable is a versatile hybrid design combining high-current power conductors with shielded data and signal cores within a single PUR-jacketed run. The cable is optimised for subsea installations where a single cable must serve all electrical functions -- eliminating multi-cable tether bundles and reducing overall system complexity, weight, and drag.
| Parameter | Specification |
|---|---|
| Power Cores | Stranded tinned copper (size and count per spec) |
| Data Cores | Shielded twisted pairs or coaxial (per spec) |
| Conductor Material | Tinned copper |
| Shielding | Individual data pair foil + overall braid |
| Outer Jacket | Polyurethane (PUR) |
| Voltage Rating | 300V (data) / 600V (power) |
| Flexibility | High flex |
| Custom | All dimensions, core count, data standard |
Request datasheet, custom length, or OEM pricing: sales@rovcable.com -- Shanghai Kabel Intelligence Technology Co., Ltd.

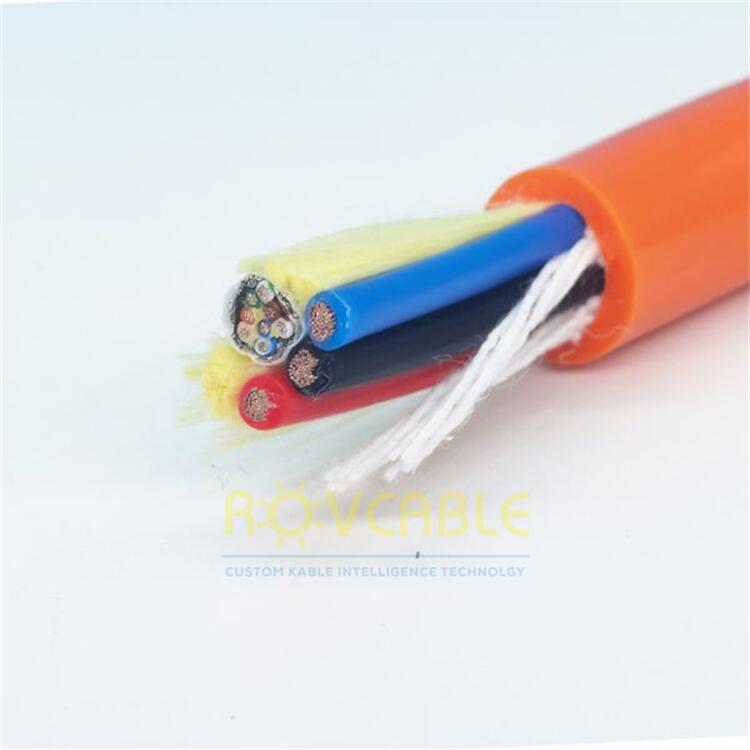

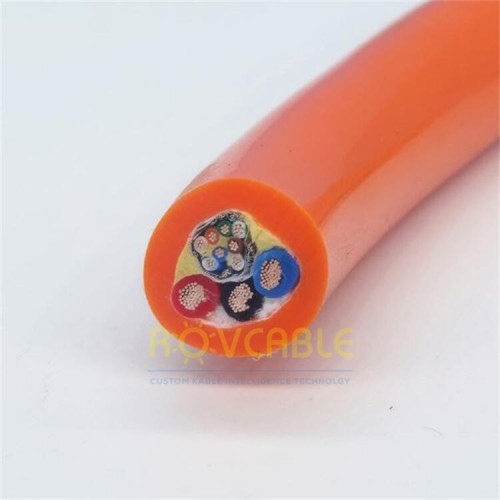

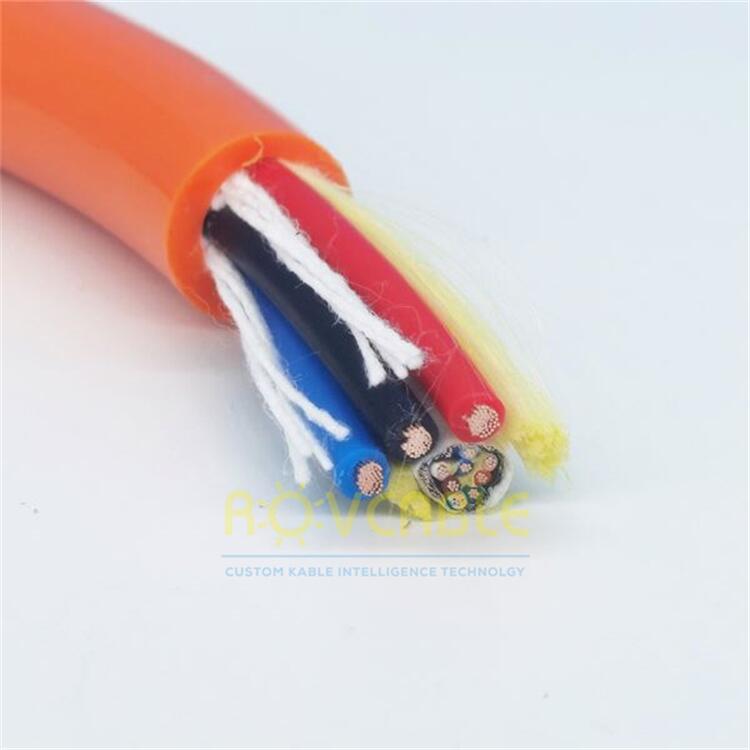

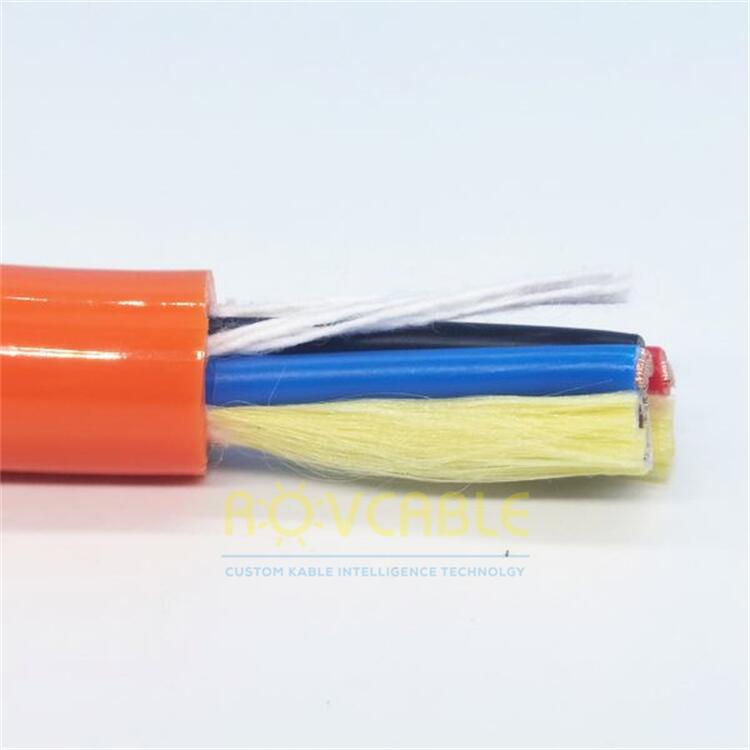

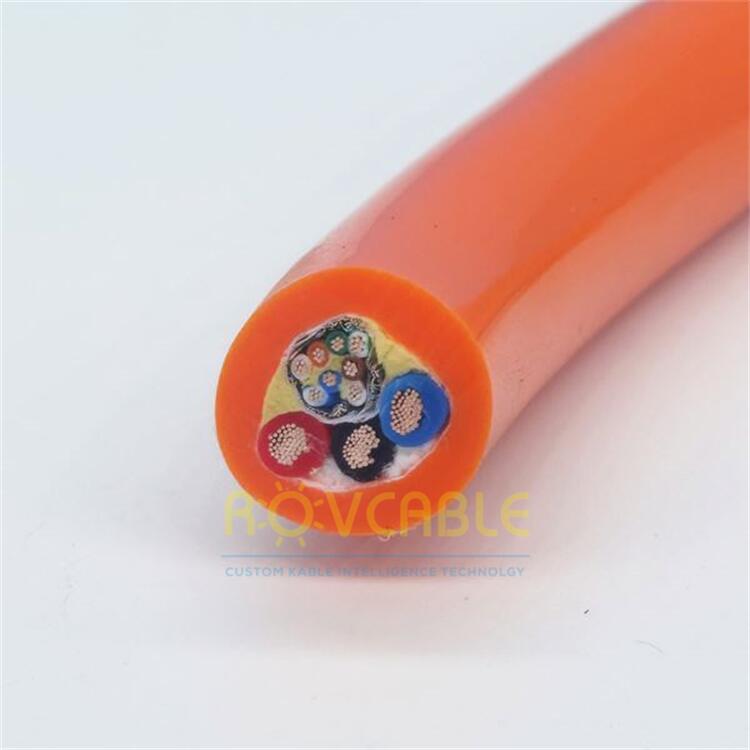

Power cores and data cores are separated by an inner braid or foil shield, and the data twisted pairs carry their own individual foil shields. This multi-level shielding prevents coupling of power switching noise (from thrusters and converters) into the data pairs, maintaining signal integrity even at full thruster load.
A neutral or positively buoyant variant is available by modifying the jacket material density and/or adding a low-density foam filler. Provide your working depth (water density) and desired buoyancy per metre when requesting a custom design.
