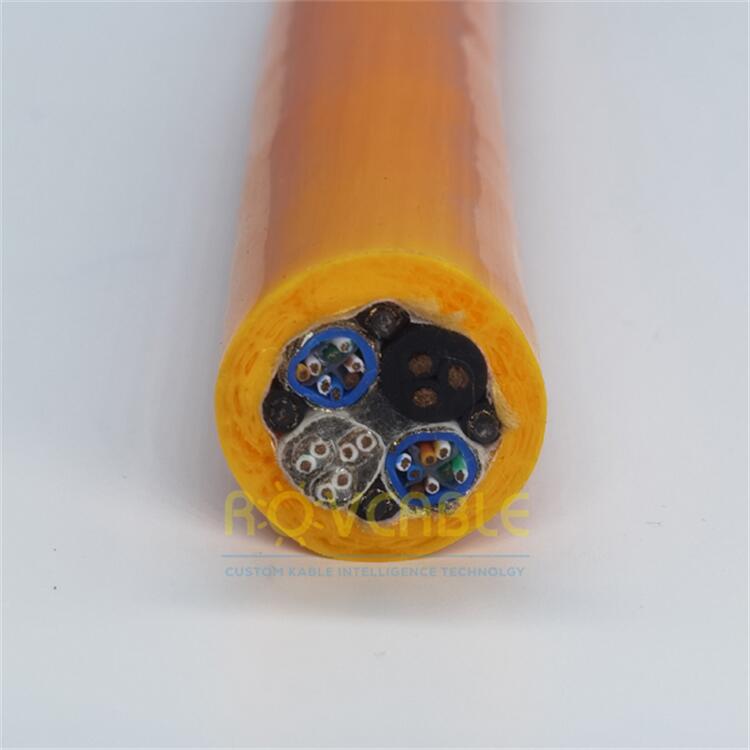

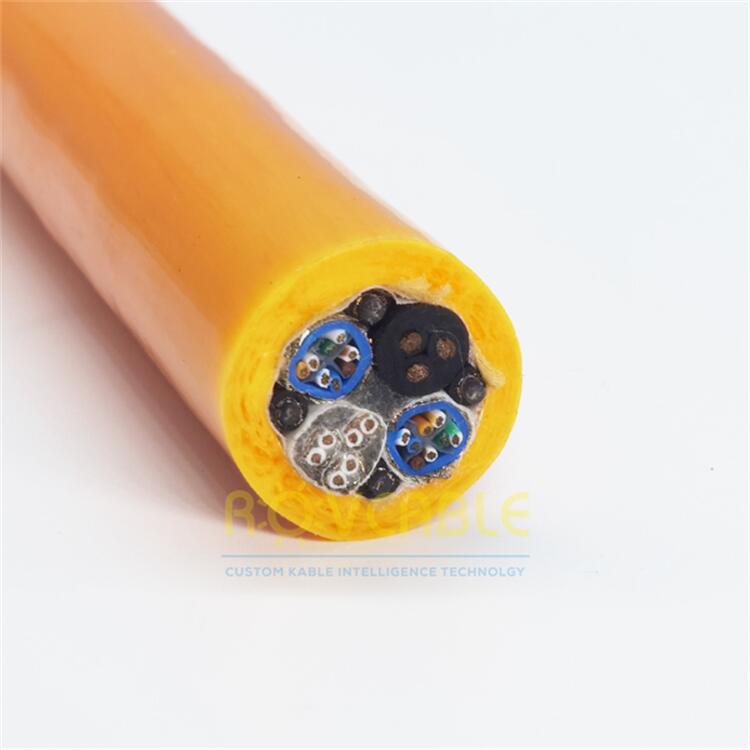

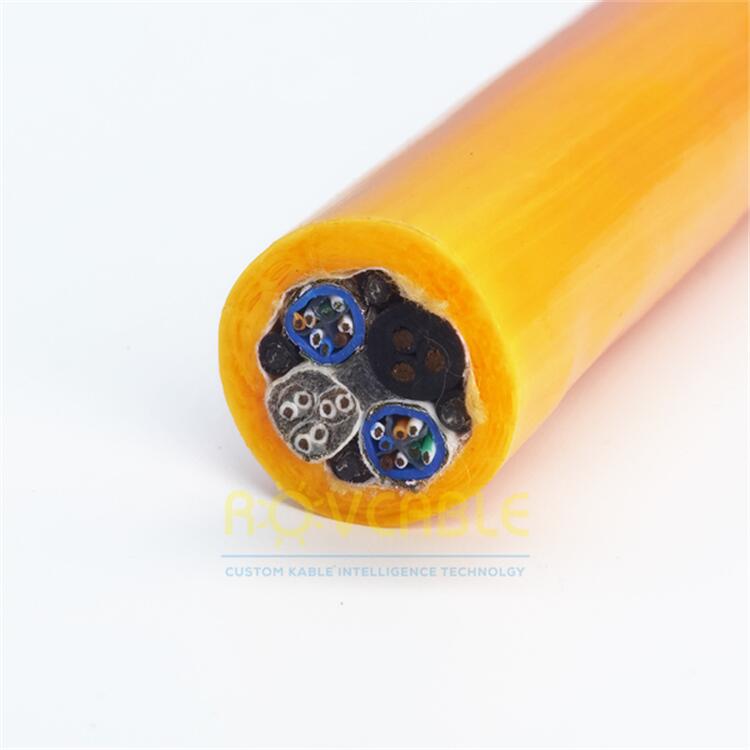

Flexible underwater network combination cable combining Ethernet and additional signal or power conductors in PUR jacket. For ROV and subsea multi-function cable runs.
The flexible underwater network combination cable provides a single-run solution for Ethernet network connectivity combined with additional control signal or power conductors. The modular design can be configured to customer specification -- Ethernet pairs (Cat5e or Cat6) plus any combination of power, RS-485, analog, or additional signal cores, all in a single flexible PUR jacket.
| Parameter | Specification |
|---|---|
| Network | Ethernet shielded twisted pairs (Cat5e / Cat6, specify) |
| Additional Cores | Signal or power (count and size per spec) |
| Conductor Material | Fine-stranded tinned copper |
| Shielding | Individual pair foil + overall braid |
| Outer Jacket | Polyurethane (PUR) |
| Flexibility | High flex |
| Colour | Black |
| Custom | Full BOM specification -- pairs, additional cores, shielding, OD |
Request datasheet, custom length, or OEM pricing: sales@rovcable.com -- Shanghai Kabel Intelligence Technology Co., Ltd.
Provide: (1) Ethernet standard required (Cat5e / Cat6); (2) additional conductor count and cross-section (e.g., 4 x 0.5mm²); (3) shielding level (STP / SFTP); (4) required OD or bend radius; (5) operating depth. We will provide a datasheet and price for your specific configuration.
Yes. A Kevlar braid or parallel Kevlar yarns can be added between the inner and outer jacket for tether applications requiring tensile load capability. Specify the required minimum breaking strength (MBS) in Newtons or kilograms-force when ordering.
