Customized 8 twisted-pair underwater control signal cable. 16 conductors, individually shielded pairs, PUR jacket, for complex ROV multi-channel control and sensor systems.

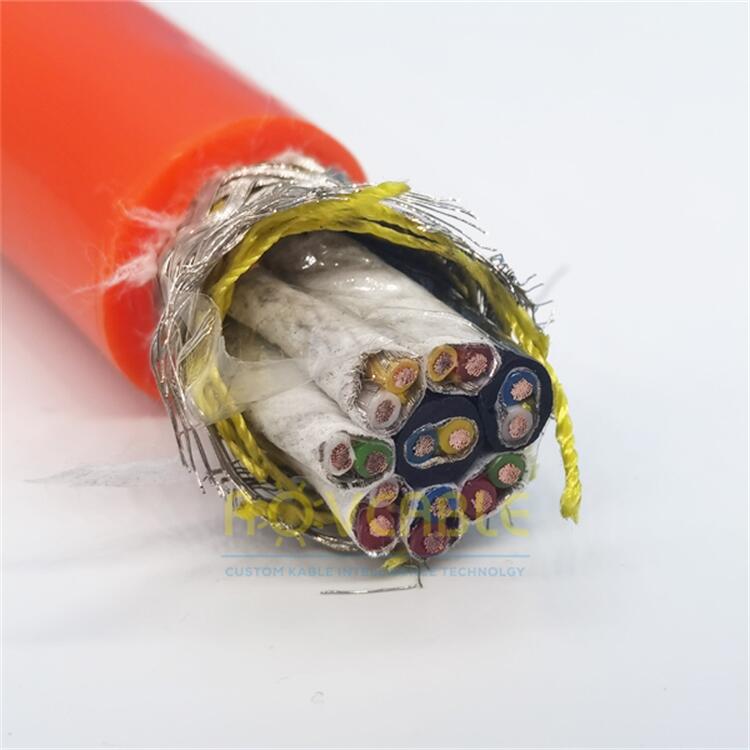

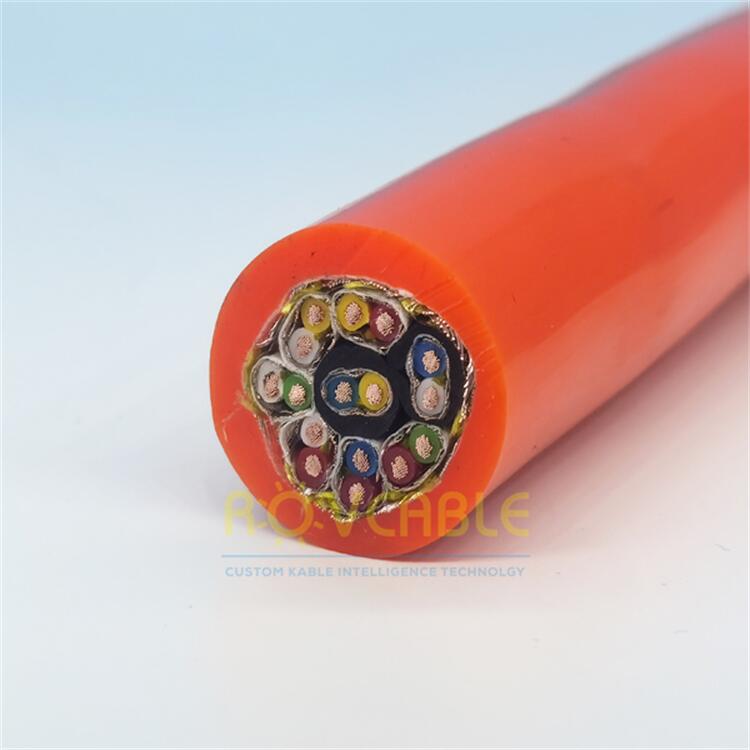

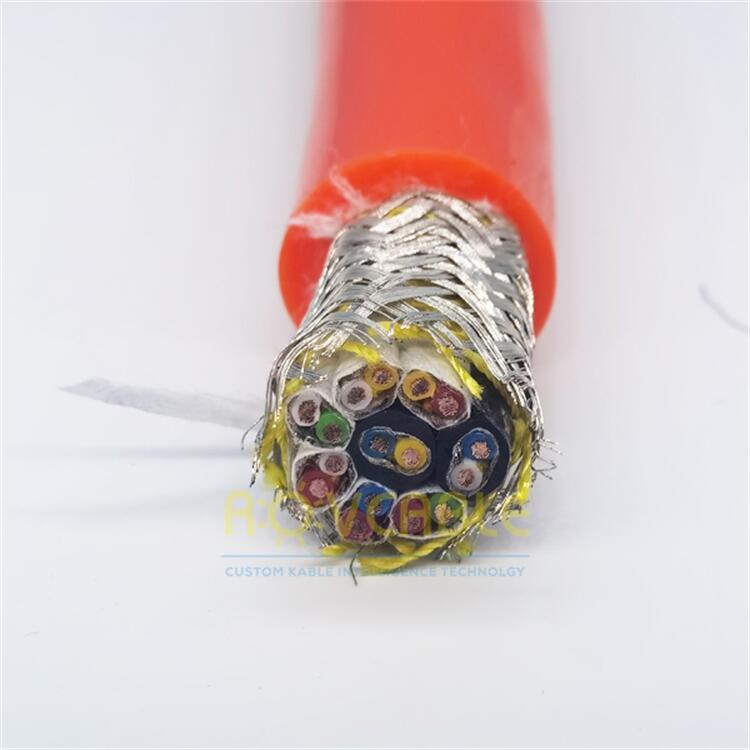

The 8-pair underwater control cable provides sixteen individually shielded conductors in eight twisted pairs for complex ROV systems and multi-sensor subsea platforms where a large number of independent, low-interference signal channels are required in a single cable run. Each pair is individually foil-shielded with a drain wire, and an overall braid provides system-level EMI protection.
| Parameter | Specification |
|---|---|
| Signal Pairs | 8 x individually foil-shielded twisted pairs |
| Total Conductors | 16 (+ drain wires) |
| Conductor Material | Stranded tinned copper |
| Pair Shielding | Al-foil + drain wire per pair |
| Overall Shield | Tinned copper braid |
| Outer Jacket | Polyurethane (PUR) |
| Voltage Rating | 300V per pair |
| Colour | Black |
| Custom | Conductor size, twist pitch, pair shielding grade |
Request datasheet, custom length, or OEM pricing: sales@rovcable.com -- Shanghai Kabel Intelligence Technology Co., Ltd.
Standard pair colour coding uses the international cable colour code (pair 1: white/blue, pair 2: white/orange, etc.) or a custom colour code on request. Each pair core is individually coloured for easy identification at termination.
Yes. The 8 pairs are completely independent. You can assign analog 4-20mA signals to some pairs, RS-485 differential signals to others, and digital I/O to further pairs, all within the same cable, provided signal levels are within the voltage rating.
