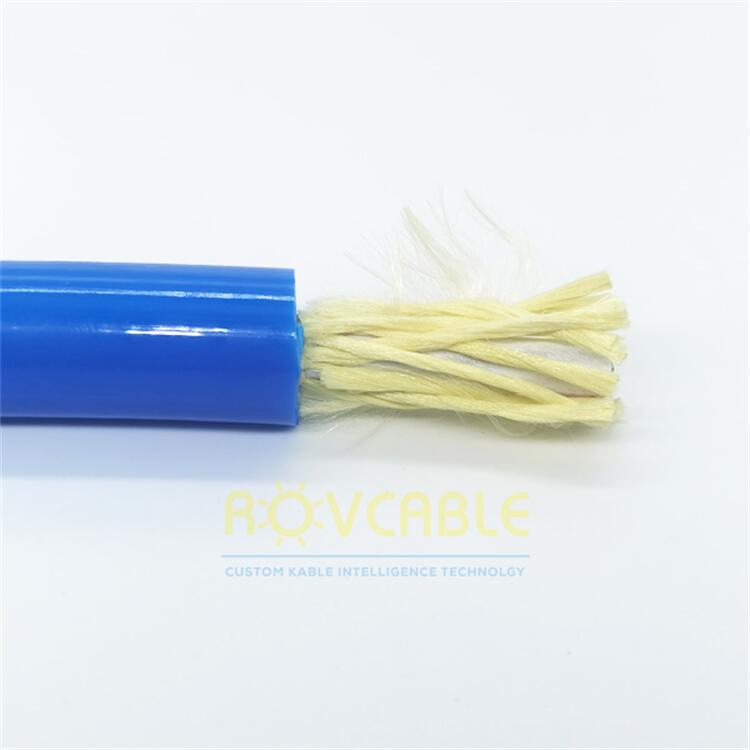

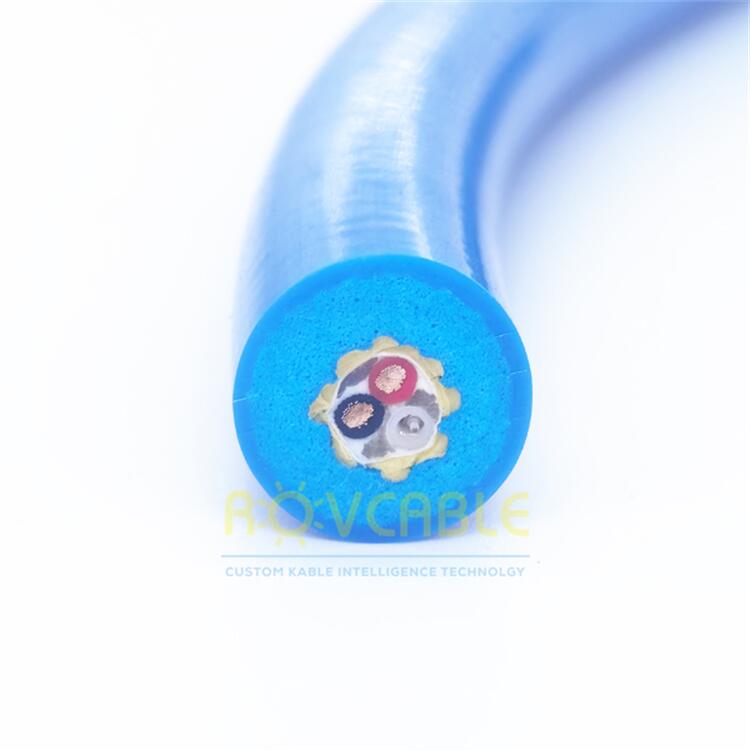

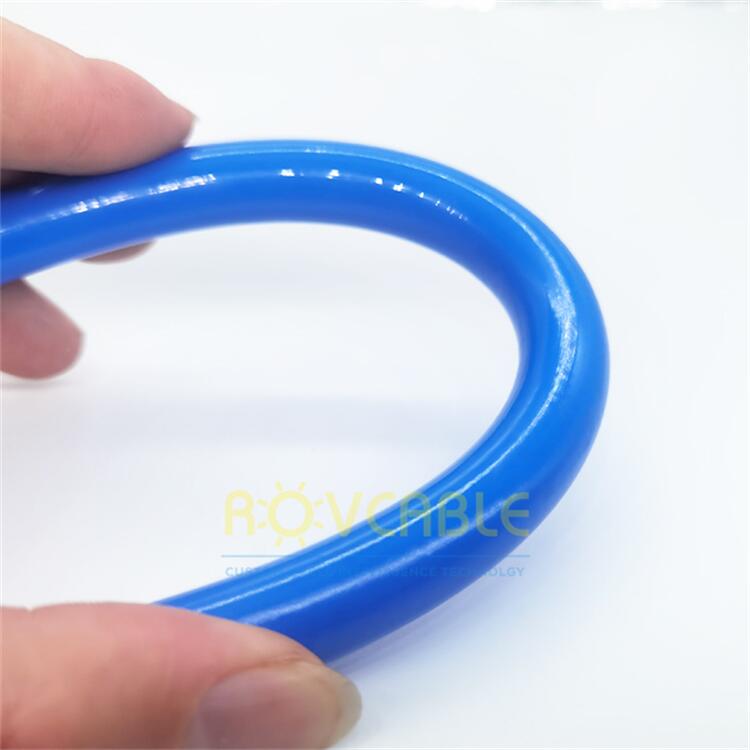

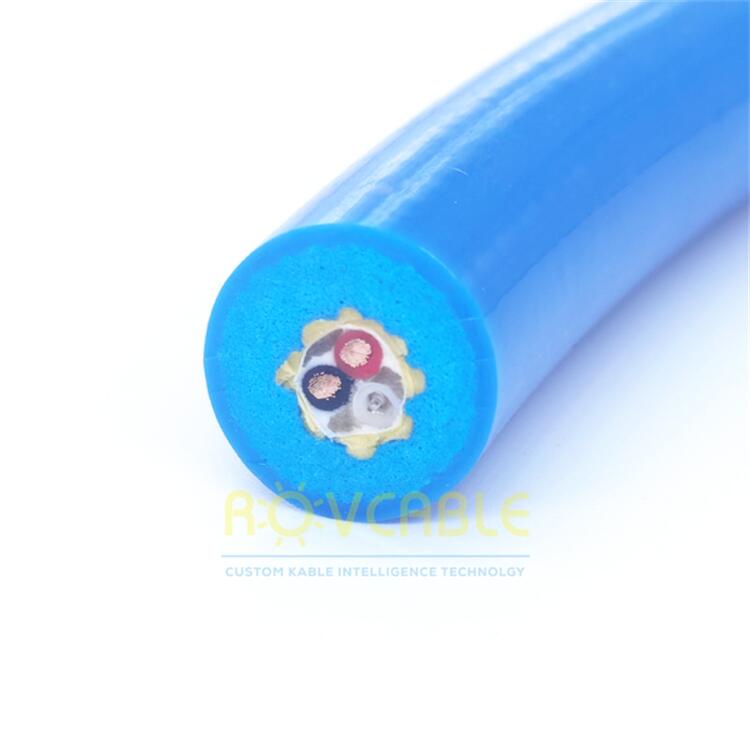

Double-sheath 3-core ROV tether cable with integrated air duct. Floating or near-neutral buoyancy design for shallow ROV, diver support, and underwater instrument tethers.
The double-sheath 3-core ROV tether cable with air duct is designed for shallow-water ROV operations, diver support, and floating umbilical applications. The integrated air duct serves a dual purpose: it provides the pneumatic supply for diver air or ROV buoyancy control, and the air-filled duct contributes to the cable's near-neutral or positive buoyancy in water. The double PUR jacket provides excellent abrasion resistance and durability in tidal and surface-wave environments.
| Parameter | Specification |
|---|---|
| Electrical Cores | 3 x stranded tinned copper (size per spec) |
| Air Duct | Integrated polyurethane air duct (ID per spec) |
| Outer Jacket | Double PUR (inner + outer sheath) |
| Buoyancy | Near-neutral to positively buoyant (duct diameter) |
| Jacket Colour | Yellow (standard) / black / custom |
| Pressure Rating (Duct) | Up to 20 bar (300 m equivalent) |
| Tensile Strength | Kevlar or Dyneema reinforcement available |
| Custom | Core count, conductor CSA, duct diameter, buoyancy |
Request datasheet, custom length, or OEM pricing: sales@rovcable.com -- Shanghai Kabel Intelligence Technology Co., Ltd.
The standard integrated air duct is rated to 20 bar (equivalent to 200 m water depth) for diver air supply. For greater depths or higher pressures, a heavier-wall duct is available. Specify the maximum working pressure when ordering.
Yes. Positive buoyancy is achieved by selecting a larger air duct diameter relative to the cable cross-section. We calculate the buoyancy per metre and can tune it to your specification -- specify your cable length, water density (salt or fresh), and desired buoyancy (e.g., 10N/m positive) when ordering.
