4 individually screened twisted pairs 20AWG underwater PUR cable. Compact, high-channel signal cable for ROV and subsea instrumentation. Custom lengths available.

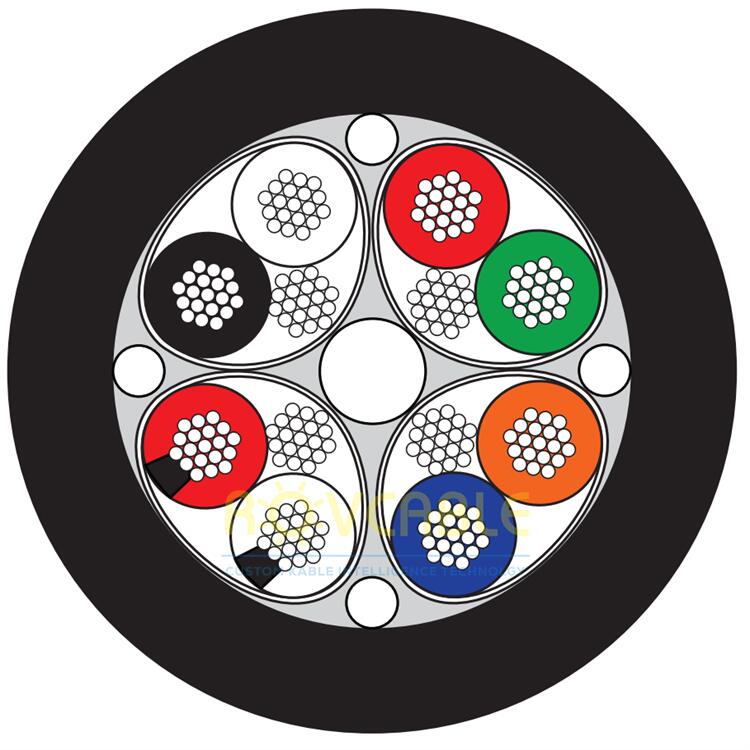

A compact underwater signal cable with 4 individually foil-screened twisted pairs at 20AWG, enclosed in a PUR jacket. Provides 4 independent signal channels for ROV control, sensor data, and instrumentation in subsea environments. Its compact design minimises drag while delivering reliable, noise-immune signal transmission.
| Parameter | Specification |
|---|---|
| Signal Pairs | 4 x 2 x 20AWG (individually screened) |
| Jacket Material | Polyurethane (PUR) |
| Voltage Rating | 300V RMS |
| Temperature Range | -30°C to +80°C |
| Depth Rating | Up to 4,000 m |
| Overall Shield | Foil + copper braid |
| Protocols | RS-485, RS-232, 4--20mA, analogue |
Enquire about custom configurations: sales@rovcable.com -- Shanghai Kabel Intelligence Technology Co., Ltd.
The 4-pair version offers a smaller OD and lighter weight, making it preferable for compact ROV subsystems or where only 4 signal channels are needed. The 8-pair version (n=787) is recommended when more channels are required in a single cable run.
Yes. Modbus RTU uses RS-485 signalling, which is fully supported by the 20AWG screened twisted pairs. With proper bus termination, Modbus RTU runs of several hundred metres are achievable.
