6 conductors 20AWG + 1 coaxial 75 ohm underwater shielded cable. PUR jacket, combined signal and video in one subsea cable for ROV applications.
This underwater cable combines 6 x 20AWG shielded signal conductors with a single 75-ohm coaxial element in a single PUR-jacketed assembly. It is designed for ROV and subsea applications where control/sensor signals and video must co-exist in one cable -- eliminating the need for separate signal and video cable runs while reducing drag and installation complexity.
| Parameter | Specification |
|---|---|
| Signal Conductors | 6 x 20AWG (shielded) |
| Coaxial | 1 x 75 Ohm (RG59 equivalent) |
| Jacket Material | Polyurethane (PUR) |
| Voltage Rating | 300V RMS |
| Temperature Range | -30°C to +80°C |
| Depth Rating | Up to 3,000 m |
| Shielding | Individual conductors screened + overall braid |
For pricing and technical datasheets: sales@rovcable.com -- Shanghai Kabel Intelligence Technology Co., Ltd.
Yes. The 6 x 20AWG conductors support RS-485, RS-232, 0--10V analogue, 4--20mA, and discrete digital signals. They can be paired as differential signal pairs or used as individual channels depending on your control system.
Yes. The 75-ohm coaxial element can be terminated with BNC, RCA, or custom subsea waterproof connectors independently of the signal conductors. We can supply pre-assembled cable assemblies with your specified connector types.

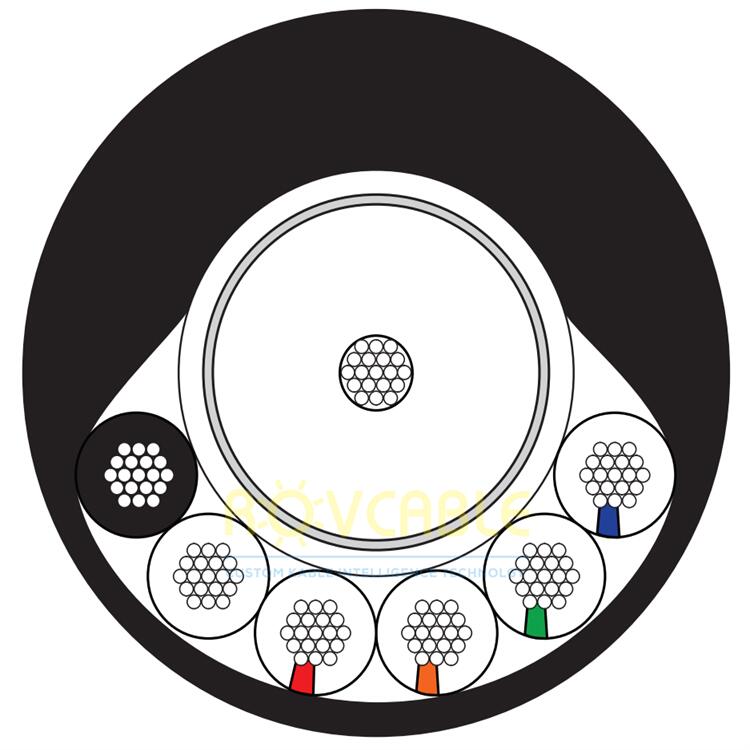

6 conductors, 20 AWG 1 Coax, 75 Ω Nominal cable OD: 0.386'', 9.80 mm
6 conductors, 20 AWG 1 Coax, 75 Ω Underwater Shielded Twisted Pair Cables
