RG58 50 ohm coaxial cable with Vectran braid (1200 kg breaking strength) and PUR jacket. High tensile, deep-sea rated for ROV and subsea data link applications.

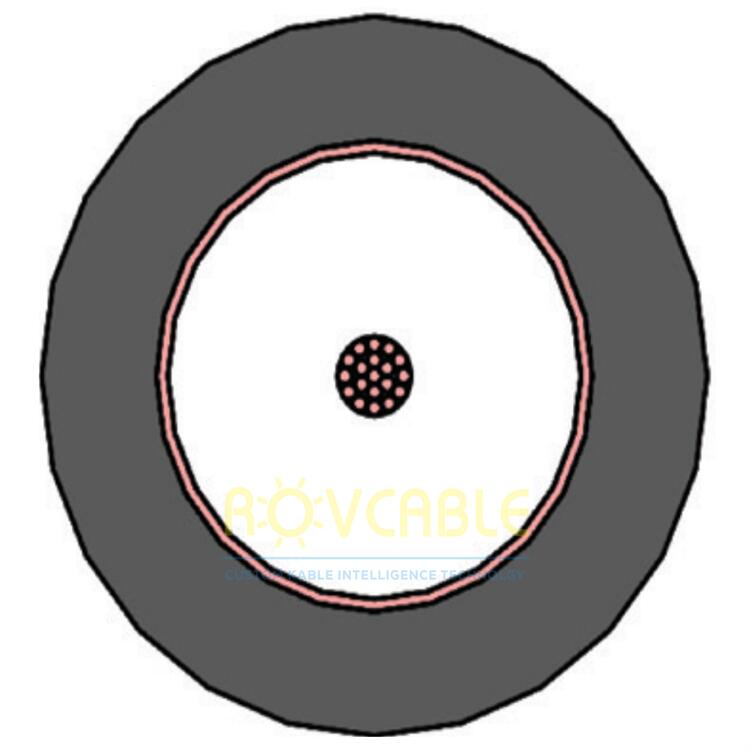

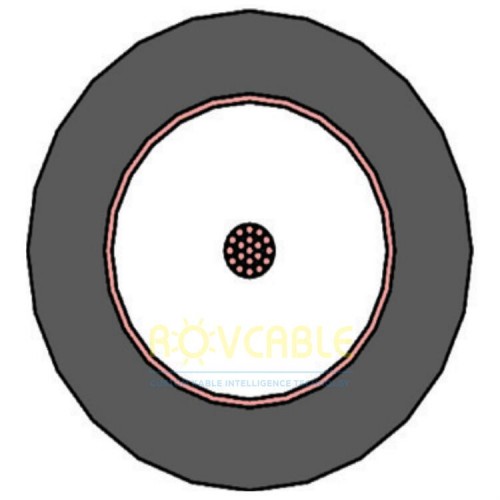

This high-performance underwater coaxial cable combines an RG58 50-ohm coaxial core with a Vectran high-modulus fibre braid providing 1,200 kg breaking strength, enclosed in a PUR outer sheath. Vectran outperforms Kevlar in flex fatigue and creep resistance, making this cable exceptional for dynamic deep-sea tether and winch applications where the cable must withstand repeated bending and high tensile loads without performance degradation.
| Parameter | Specification |
|---|---|
| Coaxial Standard | RG58 (50 Ohm) |
| Reinforcement | Vectran high-modulus fibre braid |
| Breaking Strength | 1,200 kg (minimum) |
| Jacket Material | Polyurethane (PUR) |
| Temperature Range | -30°C to +80°C |
| Depth Rating | Up to 6,000 m |
| Flex Fatigue | Excellent (Vectran superior to Kevlar) |
| Creep | Near-zero (Vectran property) |
Request Vectran strength certificates and RG58 electrical specifications: sales@rovcable.com -- Shanghai Kabel Intelligence Technology Co., Ltd.
Vectran offers superior flex fatigue life and near-zero creep under sustained tension compared to Kevlar. In dynamic tether applications where the cable repeatedly bends over a sheave or drum, Vectran maintains its breaking strength far longer than Kevlar, reducing the risk of sudden tensile failure.
RG58 50-ohm cable is used for RF signals (sonar, acoustic), Ethernet over coax (MoCA), RS-485, and general RF communications up to several GHz. It is a standard in subsea acoustic systems and can carry digital data at frequencies up to 1 GHz or more depending on the run length.
