Single 75 ohm coaxial underwater cable with PUR jacket. Depth-rated for ROV and subsea camera video transmission. RG59/RG6 equivalent, custom lengths.

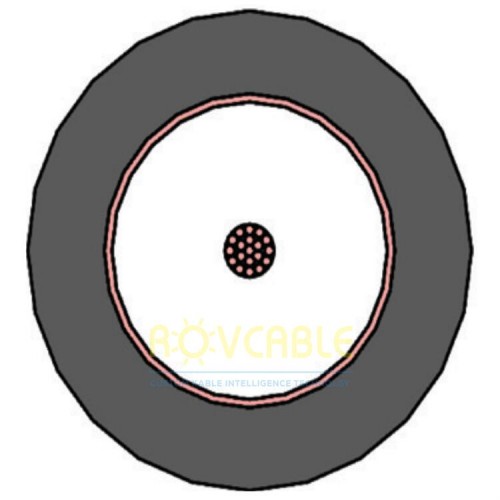

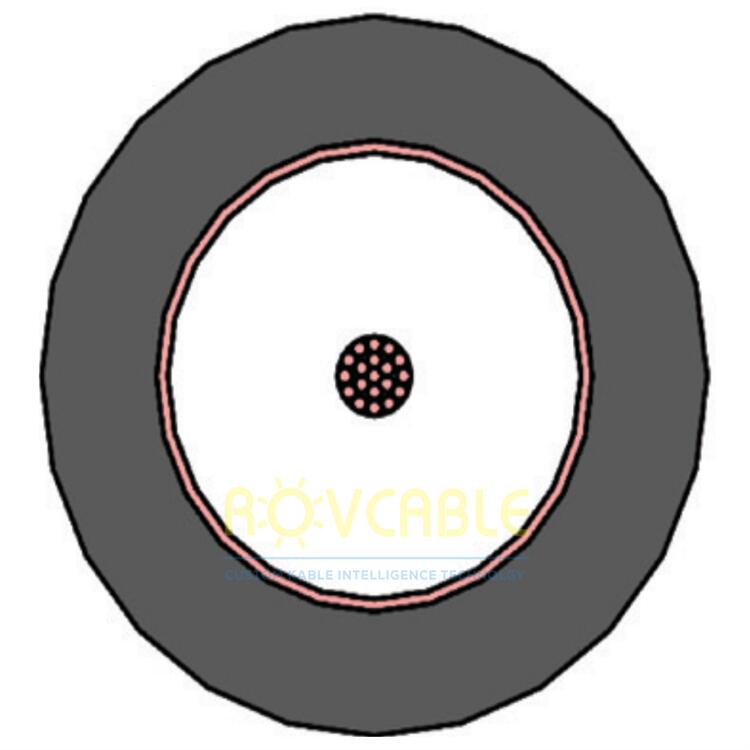

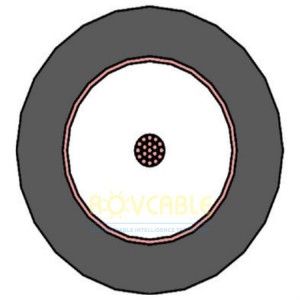

A dedicated 75-ohm coaxial underwater cable for single-channel video transmission in ROV and subsea camera systems. Built to RG59/RG6 equivalent specifications and encased in a PUR outer jacket, this cable delivers stable video performance in seawater environments, from shallow coastal deployments to deep offshore applications.
| Parameter | Specification |
|---|---|
| Impedance | 75 Ohm |
| Standard | RG59 / RG6 equivalent |
| Jacket Material | Polyurethane (PUR) |
| Temperature Range | -30°C to +80°C |
| Depth Rating | Up to 3,000 m |
| Shielding | Foil + tinned copper braid |
| Velocity of Propagation | ~66% (polyethylene dielectric) |
| Connector Options | BNC, TNC, custom waterproof |
Order custom-length coaxial underwater cables: sales@rovcable.com -- Shanghai Kabel Intelligence Technology Co., Ltd.
For PAL/NTSC composite video at 75 ohms, reliable transmission is achievable up to 300 m with this cable before signal degradation becomes significant. For longer runs, video amplifiers or digital video (HD-SDI) with appropriate equalisation should be used.
Yes. We supply this cable pre-terminated with subsea-rated waterproof BNC connectors, rated to 3,000 m. Custom connector types are also available on request.
