8 individually screened twisted pairs at 20AWG in PUR underwater cable. High-channel-count signal cable for ROV and subsea instrumentation systems.

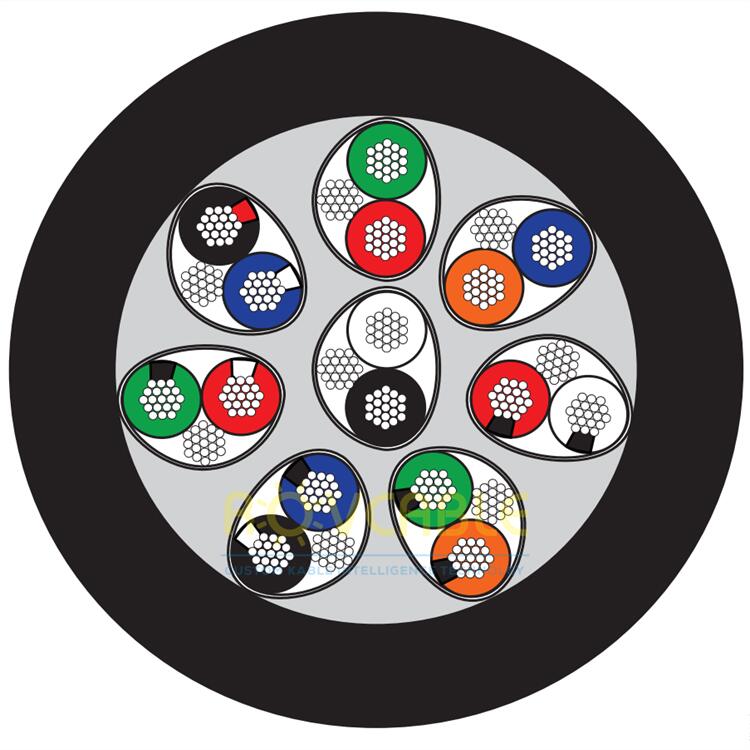

This high-channel-count underwater signal cable features 8 individually foil-screened twisted pairs at 20AWG, all enclosed in a PUR outer jacket. It provides 8 independent, noise-immune signal channels for ROV systems, subsea sensor networks, and instrumentation arrays -- where multiple simultaneous data streams must be transmitted reliably through seawater without crosstalk or interference.
| Parameter | Specification |
|---|---|
| Signal Pairs | 8 x 2 x 20AWG (individually screened) |
| Jacket Material | Polyurethane (PUR) |
| Voltage Rating | 300V RMS |
| Temperature Range | -30°C to +80°C |
| Depth Rating | Up to 4,000 m |
| Overall Shield | Foil + tinned copper braid |
| Inter-channel Isolation | >60 dB |
| Protocols Supported | RS-485, RS-232, 4--20mA, 0--10V, discrete |
Contact us for custom pair count or conductor size specifications: sales@rovcable.com -- Shanghai Kabel Intelligence Technology Co., Ltd.
Yes. Each pair is independently shielded, so all 8 can simultaneously carry RS-485 at up to 10 Mbps over typical subsea cable lengths of 100--300 m. Each pair can also carry a different protocol -- mixing RS-485, 4--20mA, and discrete digital signals as needed.
Yes. PROFIBUS DP uses RS-485 balanced differential signalling, which the 20AWG screened twisted pairs support. Terminate with a 120-ohm resistor at each end of the PROFIBUS segment for proper bus termination.
