16x24AWG + 4X2X26AWG Underwater LAN Hybrid Cable for ROV Tethers

This underwater LAN hybrid cable integrates 16 conductors at 24AWG (power and signal) with 4 twisted pairs at 26AWG (Ethernet/LAN), delivering a compact, high-performance solution for ROV tether and subsea inspection deployments. The polyurethane (PUR) outer sheath ensures exceptional resistance to seawater, abrasion, and hydrolysis, making it ideal for demanding underwater environments.

Key Applications

• ROV umbilical and tether cable systems
• Subsea inspection and survey vehicles (ISV/AUV)
• Underwater pipeline and hull inspection
• Offshore platform monitoring networks
• Port and harbour security systems

For custom configurations, pricing, or technical datasheets, contact us at sales@rovcable.com. Shanghai Kabel Intelligence Technology Co., Ltd supplies this cable with full material traceability and QC documentation.

Frequently Asked Questions

Can this cable transmit Gigabit Ethernet underwater?

Yes. The 4 x 2 x 26AWG twisted pairs support Cat5e-equivalent performance, enabling 100/1000 Mbps Ethernet transmission at distances up to 100 m per segment. For longer runs, signal repeaters or fibre optic hybrid variants are recommended.

What is the maximum operating depth?

The standard PUR-jacketed version is rated for shallow to mid-depth subsea use. With an optional Kevlar braid and armour layer, it can be customised for depths up to 6,000 m. Please specify your depth requirement when enquiring.

Is Kevlar reinforcement available?

Yes. Kevlar aramid yarn braiding can be added to enhance tensile strength and enable neutrally buoyant deployment -- a common requirement for ROV tether applications. Contact us for custom tensile load specifications.

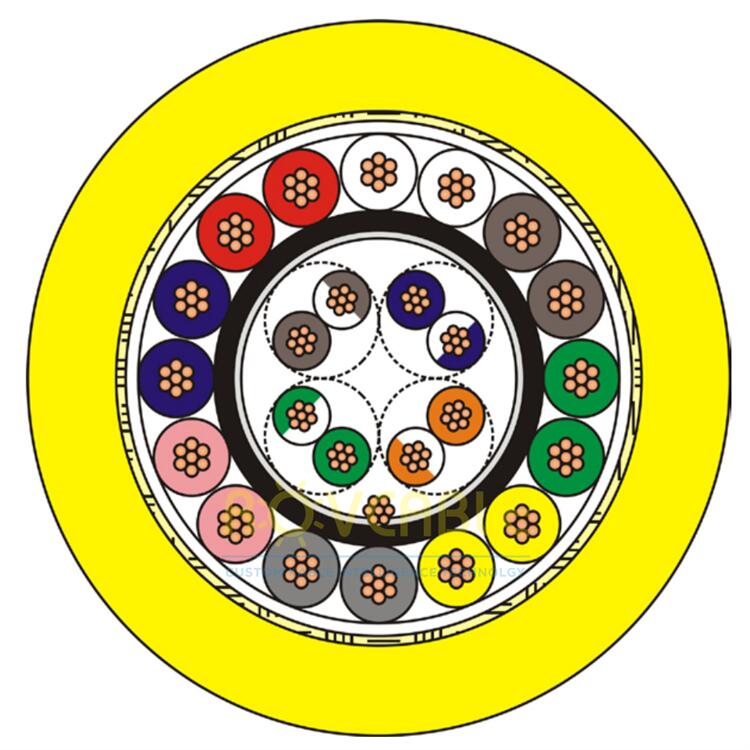

16x24AWG+ 4X2X26AWG LAN hybrid cable

CONSTRUCTION DETAILS

16 X 24 AWG:

Copper conductor PE insulation

4 X 2 X 26 AWG:

Tinned copper conductorPE insulation

screen of polyester tape, tinned copper drain wire,

aluminium/polyester tape PE sheath, color

braid strength member

Hydrolysis UV resistant PUR outer sheath, color yellow

Nominal overall diameter 11,10 mm

Applications

• Underwater cable assemblies for ROV, AUV and subsea vehicle power and signal delivery
• Subsea sensor and instrument cabling requiring flexible, abrasion-resistant PUR jackets
• Marine renewable energy cable connections, offshore platform and coastal installations
• Underwater lighting, camera and video system cable assemblies with connector terminations
• Custom umbilical cables for oceanographic research and temporary subsea deployments

Customization Options

• Custom cable lengths from 1m to 1000m+ with specified conductor counts and gauges
• Direct moulding termination to any ROV Connector series for complete cable assemblies
• Neutral buoyancy options, Kevlar reinforcement and specialized jacket colors available
• Certified cable tension, flex and pressure testing with full test documentation
