Hybrid underwater cable with 4x9/125 single-mode fiber + 10x0.34mm2 copper conductors. PUR jacket for ROV high-bandwidth tether combining fiber optic and multi-core control.
The 4x9/125 SM fiber + 10x0.34mm² hybrid cable is the high-bandwidth ROV tether solution for systems requiring simultaneous optical fiber data links and multi-channel copper control conductors in a single cable. Four OS2 single-mode fibers (9/125 μm) carry Gigabit and 10-Gigabit Ethernet, HD/4K video, and DWDM data streams to the surface, while ten 0.34mm² copper conductors carry RS-485 control, serial data, analog sensor signals, and low-power supply in the same compact PUR-jacketed construction.
| Parameter | Specification |
|---|---|
| Fiber Cores | 4 x OS2 single-mode 9/125 μm (ITU-T G.652.D) |
| Fiber Attenuation | ≤0.2 dB/km @ 1550 nm |
| Copper Cores | 10 x 0.34 mm² stranded tinned copper |
| Fiber Buffer | Loose-tube gel-filled |
| Strength Member | Kevlar aramid yarn |
| Outer Jacket | Polyurethane (PUR) |
| Depth Rating | Up to 4,000 m |
| Copper Voltage Rating | 300V |
| Colour | Black |
Request datasheet, custom length, or OEM pricing: sales@rovcable.com -- Shanghai Kabel Intelligence Technology Co., Ltd.
Two fibers provide one duplex optical channel (Tx + Rx). Four fibers provide two independent duplex channels: one for the main high-bandwidth link (e.g., 10 Gbps Ethernet for HD video and data) and a second for redundancy or a separate lower-bandwidth control channel (e.g., 1 Gbps for remote control and telemetry). Redundancy is important in mission-critical ROV operations.
OS2 single-mode fiber supports 100 Gbps+ at the physical layer. In practice, ROV systems use 1 Gbps (1000BASE-LX) or 10 Gbps (10GBASE-LR) optical transceivers. For 4K uncompressed video (12 Gbps), 10G transceivers on two fiber pairs provide 20 Gbps total capacity. DWDM multiplexing on the same fiber supports dozens of wavelength channels at 10--100 Gbps each.

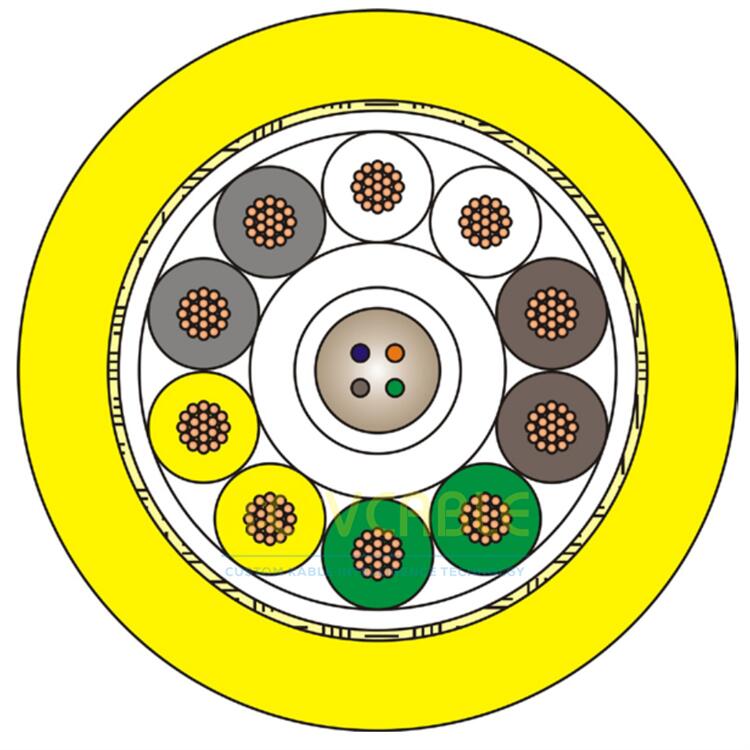

Fiber optic hybrid cable
CONSTRUCTION DETAILS
4x9/125
Fiber optic PE sheath
10X0,34 mm2:
Tinned copper conductor PE insulation
waterblocking Kevlar braid strength member
UV resistant PUR outer sheath, nominal thickness
1,30 mm, color yellow
Nominal overall diameter 10,40 mm
