Compact underwater Mini TV cable with 75 ohm coaxial and power conductors. Small OD, flexible PUR jacket for ROV miniature camera systems and tight installation spaces.
The Underwater Mini TV Cable is engineered for applications where small outer diameter and lightweight design are critical. Integrating a 75-ohm coaxial element with power conductors in a single compact cable, it is ideal for miniature ROV platforms, compact inspection cameras, and space-constrained subsea installations. The flexible PUR jacket ensures durability in seawater without compromising flexibility.
| Parameter | Specification |
|---|---|
| Coaxial Impedance | 75 Ohm |
| Design Feature | Compact OD (small form factor) |
| Jacket Material | Polyurethane (PUR) |
| Voltage Rating | 300V RMS |
| Temperature Range | -30°C to +80°C |
| Flexibility | High flexibility for dynamic ROV applications |
| Shielding | Coax double-braid shield |
| Custom OD | Available on request |
Enquire about custom OD, length, and connector options: sales@rovcable.com -- Shanghai Kabel Intelligence Technology Co., Ltd.
The Mini TV cable is available from approximately 6 mm OD, depending on conductor count and shielding configuration. We can tailor the OD to your platform's cable management requirements.
The standard version is slightly negatively buoyant. A neutrally buoyant variant with foam-filled filler elements is available -- please specify when ordering.

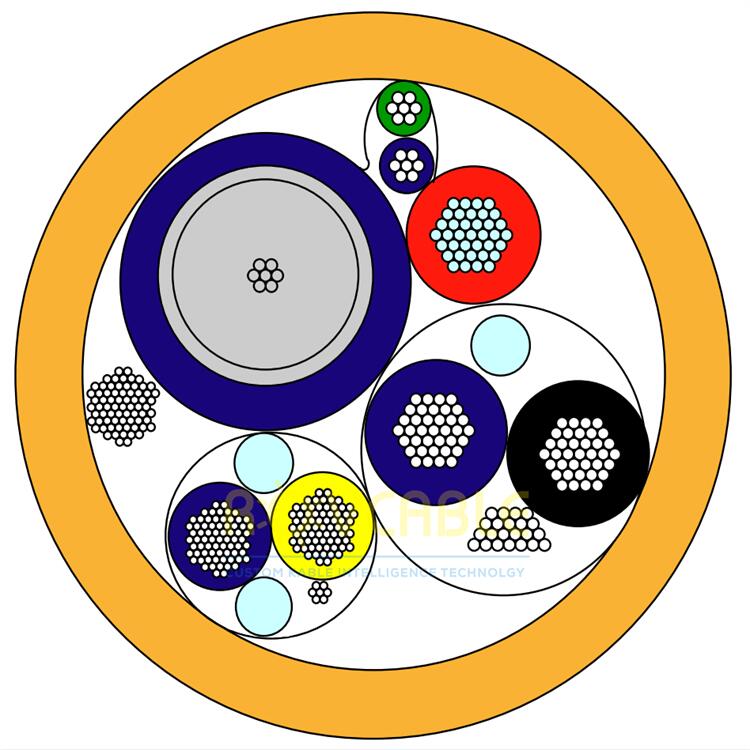

Underwater MINI TV cable

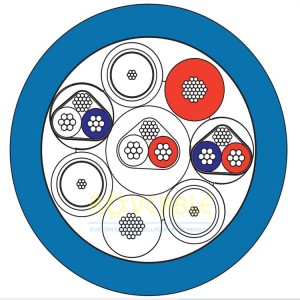

Construction characteristics
Coax 75 ohm coax (1 each)
Conductor 1.34 mm² bare copper conductor insulated with PE (1 each)
Shielded twisted pair 0.50 mm² bare copper conductor insulated with PE.
Two conductors twisted together with a tinned copper drain wire and aluminium/polyester foil (1 each)
Shielded twisted pair 1.34 mm² bare copper conductor insulated with PE.
Two conductors twisted together with a tinned copper drain wire and aluminium/polyester foil (1 each)
Twisted pair 0.22 mm² tinned copper conductor insulated with PE. Two conductors twisted together (1 each)
Filling compound The cable is filled with cable filling compound
Shield Aluminium/polyester foil and tinned copper drain wire, coverage 100%
Outer jacket Polyurethane jacket. Colour orange
