75 ohm coaxial + power underwater TV cable for subsea video cameras and ROV systems. PUR jacket, Kevlar option, composite coax-power cable for clear video transmission.
This underwater composite cable integrates a 75-ohm coaxial conductor with dedicated power conductors in a single, compact cable, purpose-built for underwater television (CCTV) and ROV camera systems. The PUR (polyurethane) outer sheath provides superior resistance to seawater, UV, and abrasion -- ensuring long-term reliability in subsea environments.
| Parameter | Specification |
|---|---|
| Coaxial Impedance | 75 Ohm |
| Coax Standard | RG59 / RG6 equivalent |
| Power Conductors | 2 or 4 x 18--22AWG (per configuration) |
| Jacket Material | Polyurethane (PUR) |
| Voltage Rating | 300V RMS |
| Temperature Range | -30°C to +80°C |
| Depth Rating | Up to 3,000 m (standard) |
| Shielding | Double braid coax shield + overall braid |
| Kevlar Option | Available for tensile reinforcement |
Contact our technical team for datasheets and OEM pricing: sales@rovcable.com -- Shanghai Kabel Intelligence Technology Co., Ltd.
Yes. The 75-ohm coaxial element supports HD-SDI (SMPTE 292M) transmission, making this cable compatible with HD underwater cameras. Signal attenuation should be calculated based on cable length; typically runs up to 100 m are reliable for HD-SDI without amplification.
Absolutely. We offer a Kevlar (aramid) braided version that significantly increases tensile strength without adding excessive weight -- ideal for tethered underwater camera deployments where the cable must support its own weight plus the camera mass.

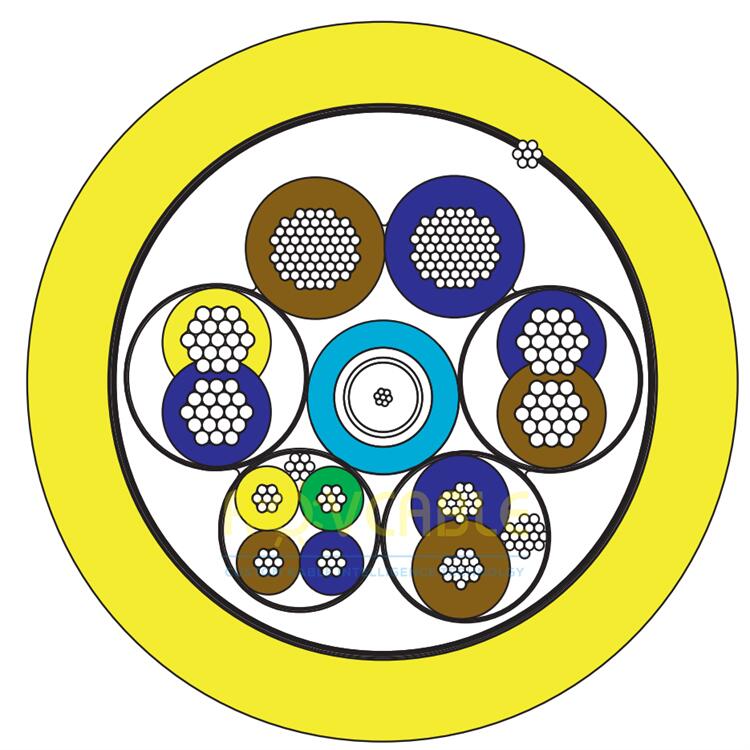

Coax 75ohm with Power TV cable
Construction characteristics
Coax 75 ohm coax (1 each)
Conductors 2.00 mm² bare copper conductor insulated with PE (2 each)
Shielded twisted pair 0.50 mm² bare copper conductor insulated with PE.
Two conductors twisted together with a tinned copper drain wire and aluminium/polyester foil. (1 each)
Shielded twisted quad 0.22 mm² bare copper conductor insulated with PE.
Four conductors twisted together with a tinned copper drain wire and aluminium/polyester foil. (1 each)
Twisted pairs 1.34 mm² bare copper conductor insulated with PE
Two conductors twisted together. (2 each)
Filling compound The cable is filled with cable filling compound
Shield Aluminium/polyester foil and tinned copper drain wire, coverage 100%
Outer jacket Polyurethane jacket. Colour yellow
