4X2X24AWG + 18X22AWG underwater LAN hybrid cable combining Ethernet pairs with 18 signal conductors. PUR sheath, subsea-rated, ideal for ROV and underwater vehicle tethers.
This subsea LAN hybrid cable combines 4 twisted pairs at 24AWG for high-speed Ethernet transmission with 18 conductors at 22AWG for power and control signals. Enclosed in a robust polyurethane (PUR) jacket, this cable is engineered for ROV tethers, underwater inspection systems, and subsea instrumentation where both data and power must co-exist in a single cable run.
| Parameter | Specification |
|---|---|
| Ethernet Pairs | 4 x 2 x 24AWG (twisted, foil shielded) |
| Signal Conductors | 18 x 22AWG (stranded, tinned copper) |
| Overall Shield | Foil + tinned copper braid |
| Voltage Rating | 300V RMS |
| Jacket Material | Polyurethane (PUR) |
| Temperature Range | -30°C to +80°C |
| Depth Rating | Up to 4,000 m (standard); deeper with armour |
| Bend Radius | 8x OD dynamic |
Request a datasheet or custom quotation: sales@rovcable.com -- Shanghai Kabel Intelligence Technology Co., Ltd.
Each Ethernet pair is individually foil-shielded, and a combined braid + foil overall shield separates the LAN section from the 18-conductor power/signal group. This eliminates crosstalk and ensures reliable data transmission even when DC or AC power is carried simultaneously.
Yes. We supply this cable in custom lengths from 10 m to several kilometres on a drum. Minimum order quantities apply; please contact us with your project requirement for pricing.

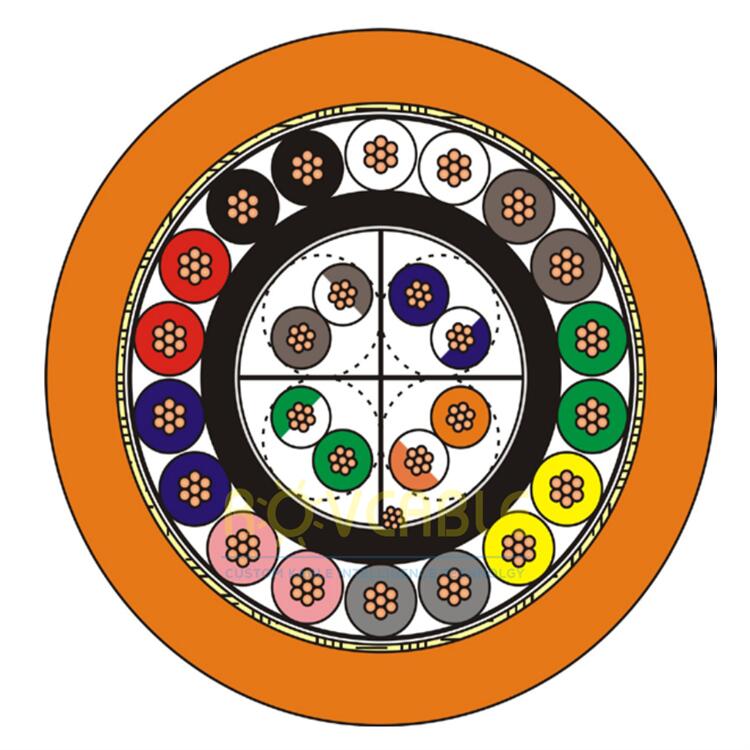

4 X 2 X 24 AWG + 18 X 22 AWG Underwater LAN hybrid cable
CONSTRUCTION DETAILS
18 X 22 AWG:
Pure copper conductor PE insulation
4 X 2 X 24 AWG:
Pure copper conductor PE insulation Conductors twisted in pairs
Collective screen of polyester tape, tinned copper drain wire,
aluminium/polyester tape
PE sheath
Protective polyester tape
Protective non woven tape
braid strength member
Hydrolysis UV resistant PUR outer sheath, color orange
Nominal overall diameter 14,20 mm
