Yellow sheath PUR underwater video cable for sewer cameras. High-visibility yellow, combined video and control for sewer inspection cameras, drain robots, and CCTV inspection.

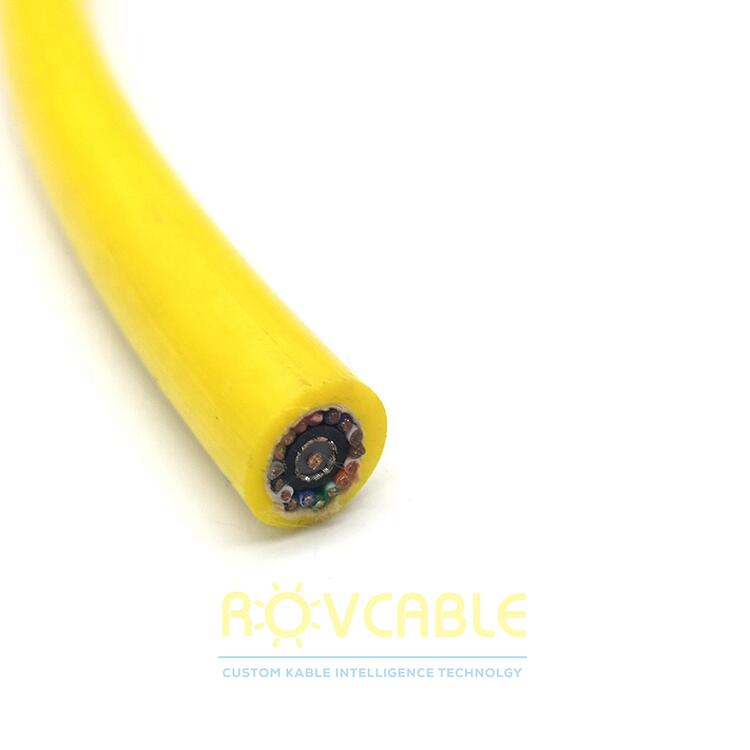

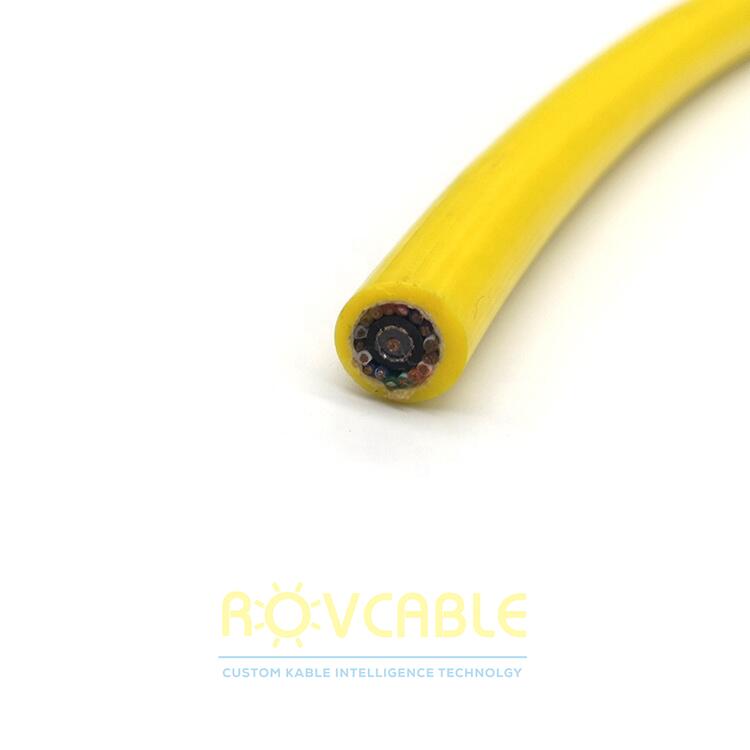

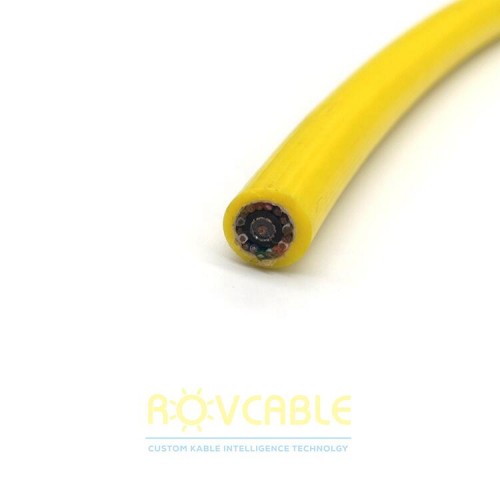

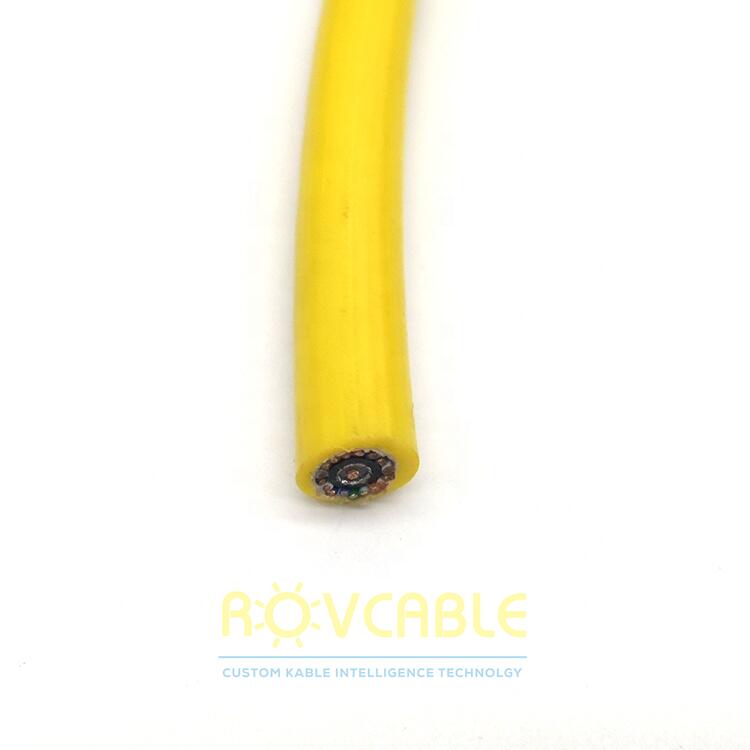

The yellow sheath sewer camera cable is a high-visibility yellow PUR-jacketed combined video and control cable purpose-built for sewer inspection cameras, drain robots, and municipal CCTV inspection systems. The bright yellow colour makes the cable easy to identify on the reel and in the work area, and helps operators estimate the camera penetration depth during inspection. The cable carries both the CCTV video signal and the power/control conductors for the camera and lighting system.
| Parameter | Specification |
|---|---|
| Outer Jacket Colour | Yellow (RAL 1003 or similar) |
| Jacket Material | Polyurethane (PUR) |
| Video Core | RG59 coaxial (75 Ohm) |

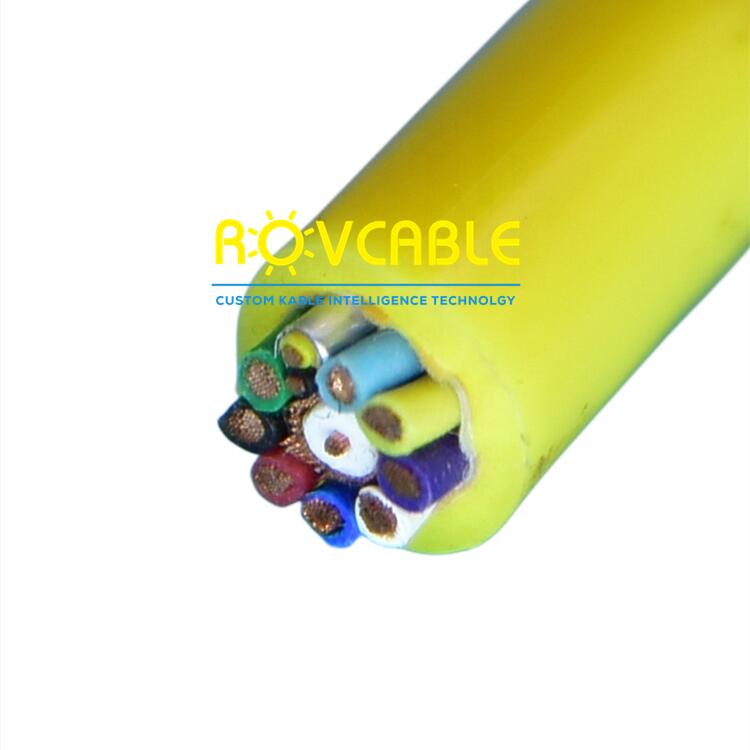

| Control Cores | Multi-core tinned copper (per spec) |
| Video Bandwidth | CVBS (PAL), AHD up to 1080p |

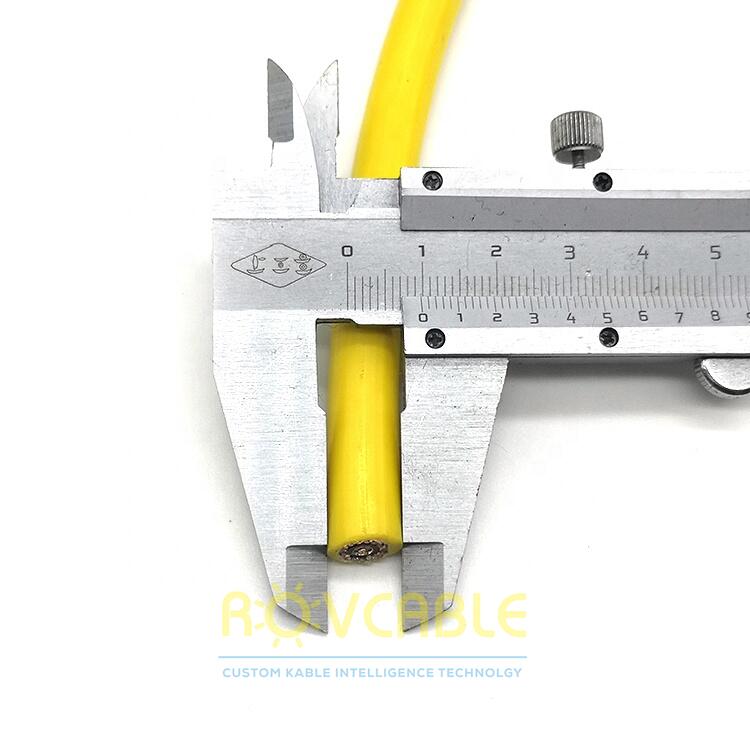

| OD | 8--14 mm typical |
| Reel | Available on inspection reels (specify length) |
| Custom | Connector type, core count, reel diameter |
Request datasheet, custom length, or OEM pricing: sales@rovcable.com -- Shanghai Kabel Intelligence Technology Co., Ltd.
Yellow is the industry-standard colour for sewer and drain inspection cables. It provides high visibility against the dark pipe interior in the camera image, helps operators estimate depth by counting cable markings, and is easy to locate in a work van or on-site. Black and orange are alternative colours used by some manufacturers.
Yes. Metre markings (e.g., white numbers printed at 1 m intervals) are available as an option. Specify the marking interval, font size, and marking colour when ordering.
