Multicore flexible CCTV pipeline inspection robot cable. PUR jacket, high-flex, for in-pipe CCTV inspection robots requiring multiple conductors for video, control, and power.

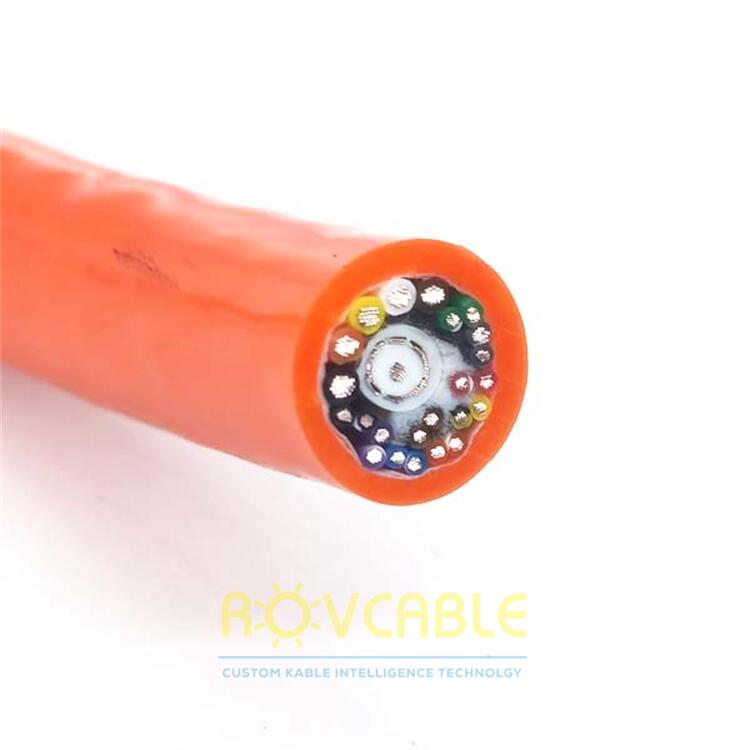

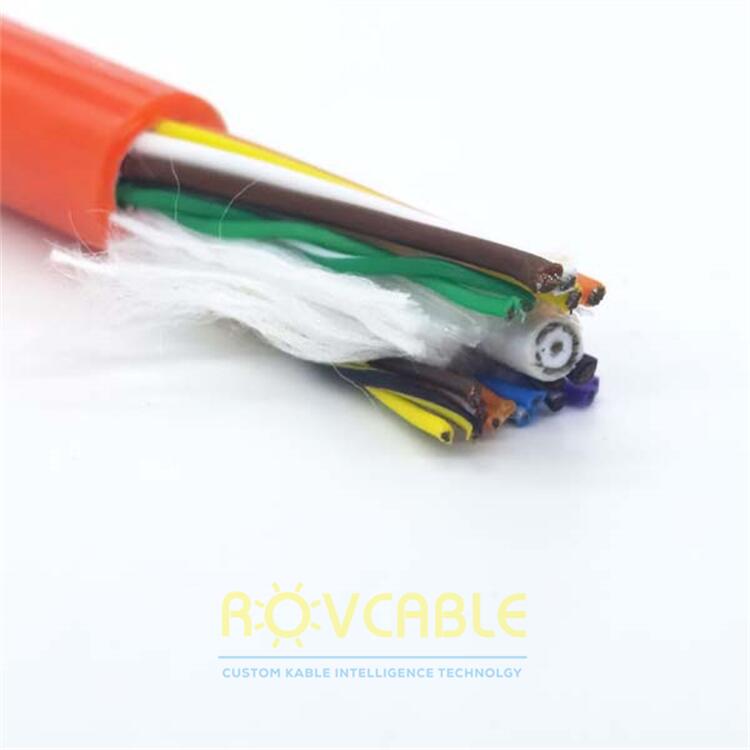

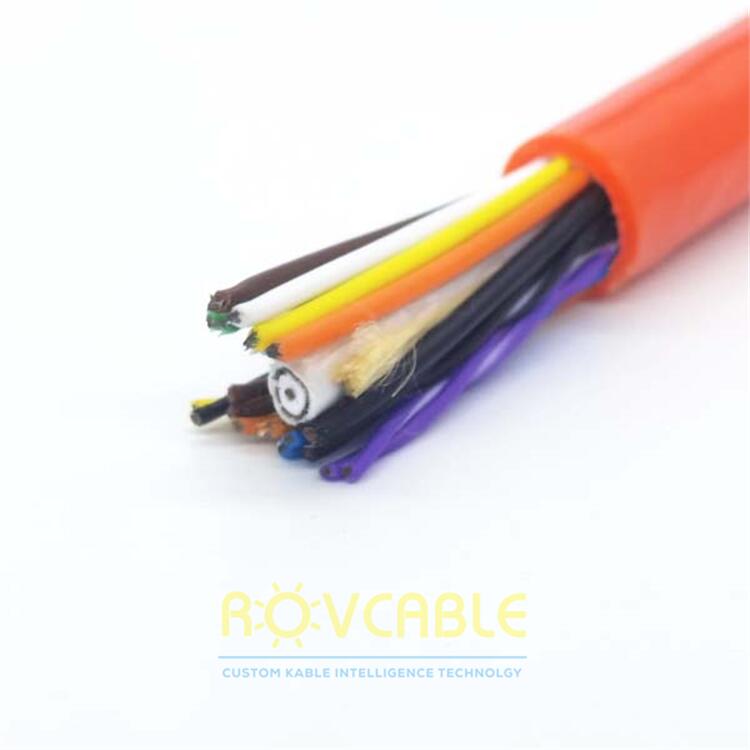

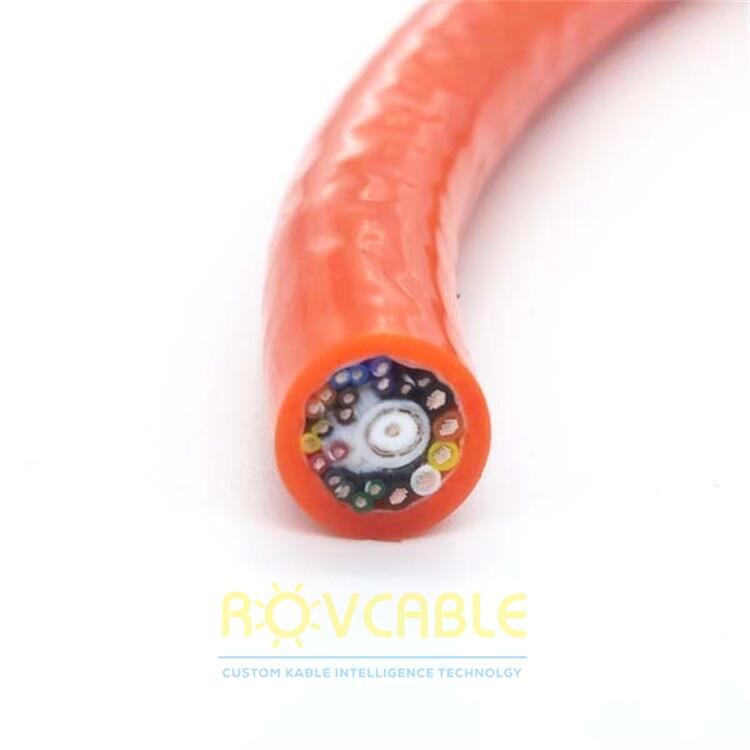

The multicore flexible CCTV pipeline inspection cable combines coaxial video cores, control conductors, and power cores in a single high-flex PUR-jacketed construction for CCTV pipeline inspection robots. The high-flex construction enables repeated coiling on a reel drum and unspooling through pipes without jacket cracking or conductor fatigue, maintaining reliable performance through hundreds of inspection cycles.
| Parameter | Specification |
|---|---|
| Video Cores | 1--4 x RG59 coaxial (per camera count) |
| Control Cores | 4--12 x stranded tinned copper (per spec) |
| Power Cores | 2--4 x tinned copper (per spec) |
| Outer Jacket | Polyurethane (PUR) high-flex |
| Strength Member | Kevlar optional |
| Reel Compatibility | Suitable for spring-loaded inspection cable reel |

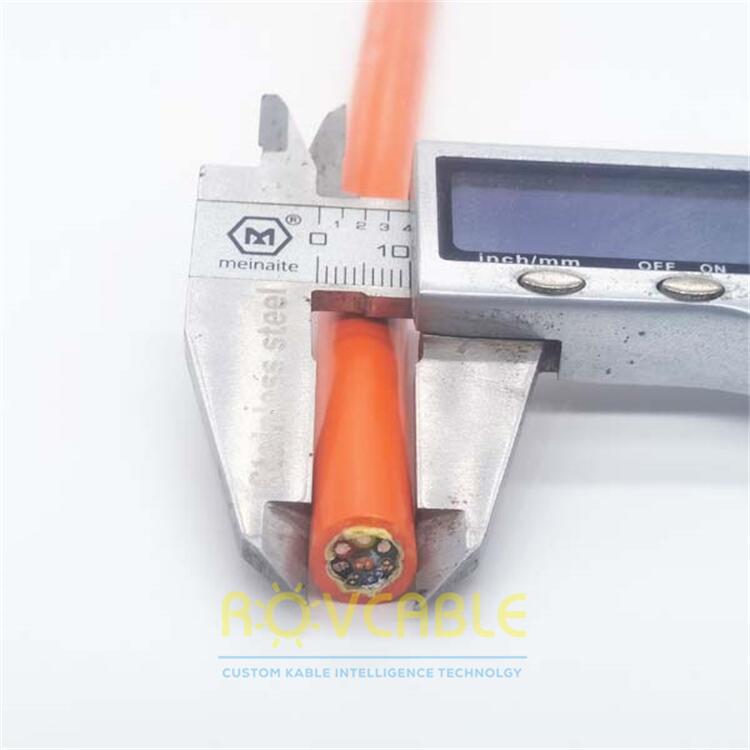

| Diameter | 10--18 mm typical |
| Length | Up to 500 m standard |
Request datasheet, custom length, or OEM pricing: sales@rovcable.com -- Shanghai Kabel Intelligence Technology Co., Ltd.
The high-flex construction targets a minimum of 500 inspection cycles (reel out + reel in) at the rated minimum bend radius without conductor failure. For high-volume inspection operations (1000+ cycles/year), specify the enhanced flex construction using Class 6 conductors and reinforced PUR jacket.
Yes. We supply the cable on standard or custom inspection reels for immediate deployment. Specify the reel diameter, desired cable length, and cable OD when ordering a reel-mounted assembly.
