Underwater video cable with 2 power cores and 1 RG59 coaxial. Compact combined power and video for underwater CCTV cameras, ROV cameras, and subsea inspection.

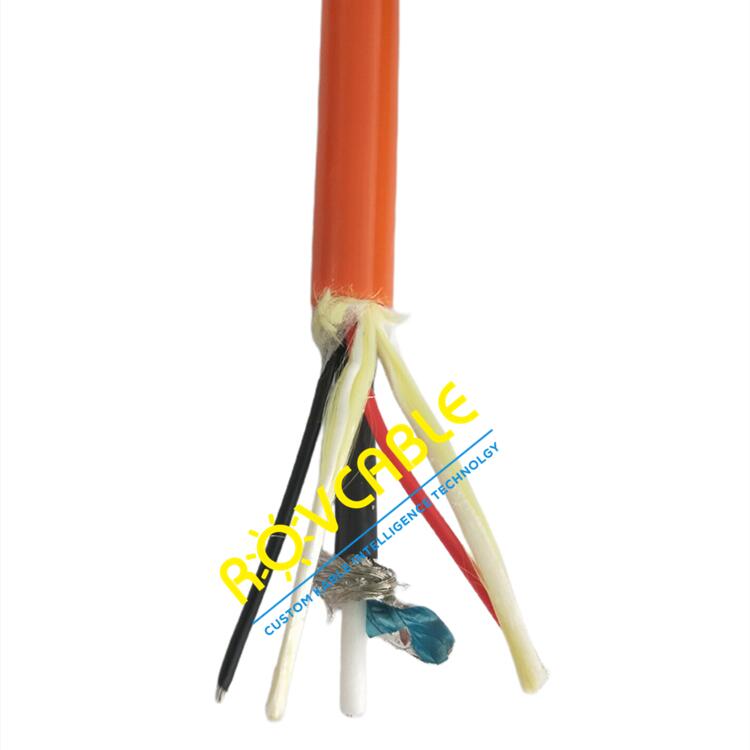

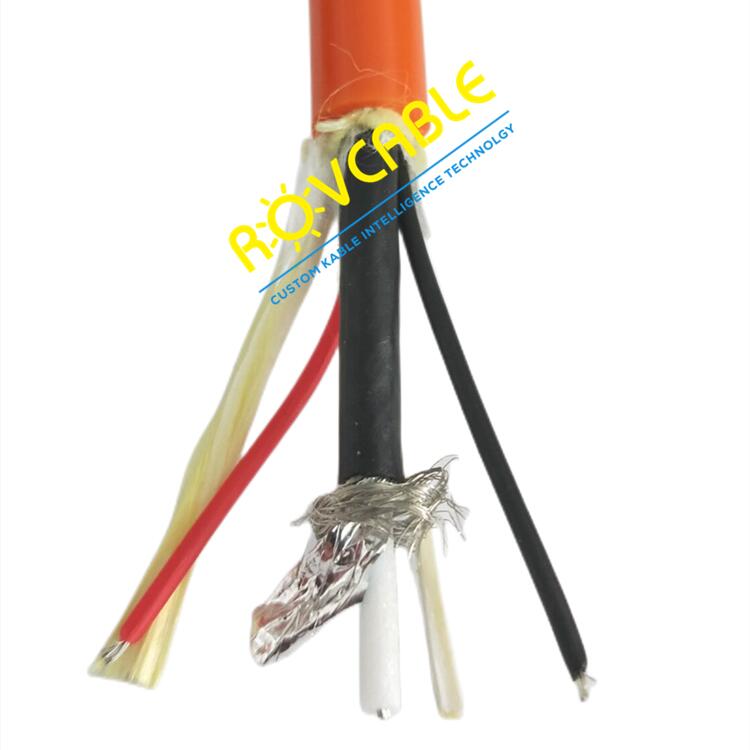

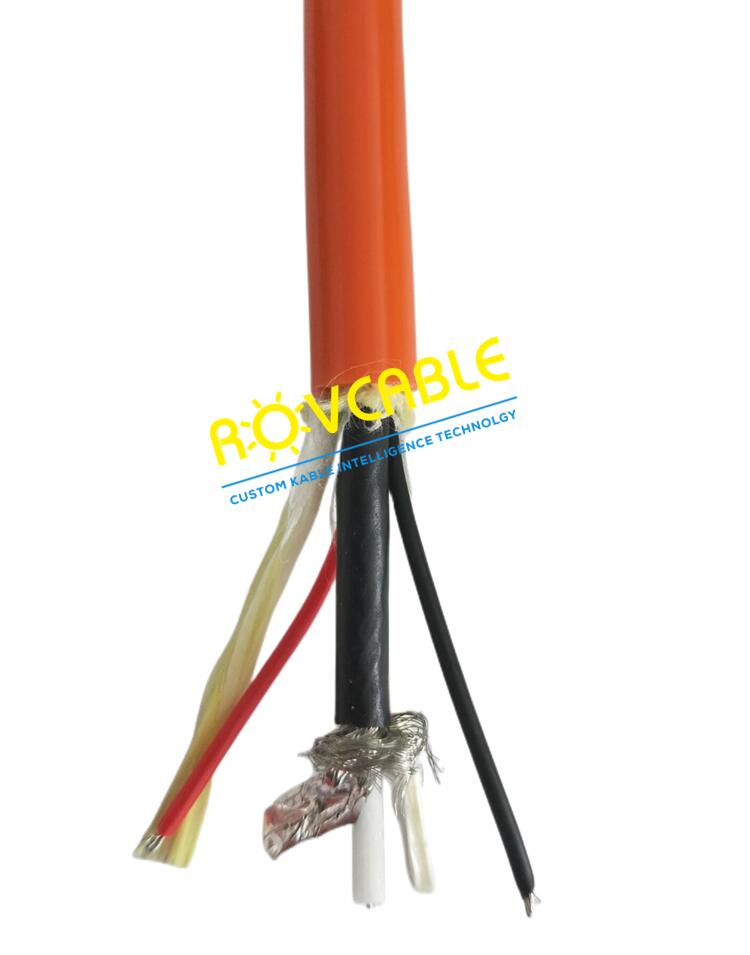

The 2-power + 1-coaxial underwater video cable is the simplest and most compact underwater camera cable configuration: a single RG59 coaxial core for the CCTV video signal and two power conductors for camera and lighting power supply, all within a single PUR outer jacket. This minimal-conductor design is ideal for compact fixed underwater cameras where no PTZ control is required and the camera operates continuously at fixed settings.
| Parameter | Specification |
|---|---|
| Coaxial Core | 1 x RG59 (75 Ohm) |
| Power Cores | 2 x stranded tinned copper (+ and -) |
| Conductor Material | Tinned copper |
| Insulation | PE (coaxial) / XLPE (power) |
| Outer Jacket | Polyurethane (PUR) |
| Overall OD | ~6--8 mm (compact) |
| Depth Rating | Up to 300 m standard |
| Colour | Black |
Request datasheet, custom length, or OEM pricing: sales@rovcable.com -- Shanghai Kabel Intelligence Technology Co., Ltd.
Yes. The two power cores support any DC voltage within the cable rating (up to 300V). For standard IP cameras or analog CCTV cameras powered by 12V DC, the power cores carry 12V DC positive and negative (return). For PoE cameras, substitute the coaxial with a Cat6 pair (available as a variant).
Yes. A variant with additional control cores (e.g., RS-485 pair for PTZ) is available. Specify the required function and we will add the appropriate cores to the design. The OD will increase slightly with additional cores.
