Coaxial shielded CCTV camera cable for duct and pipe inspection crawlers. RG59 coaxial with control conductors in PUR jacket for in-pipe robot video and control.

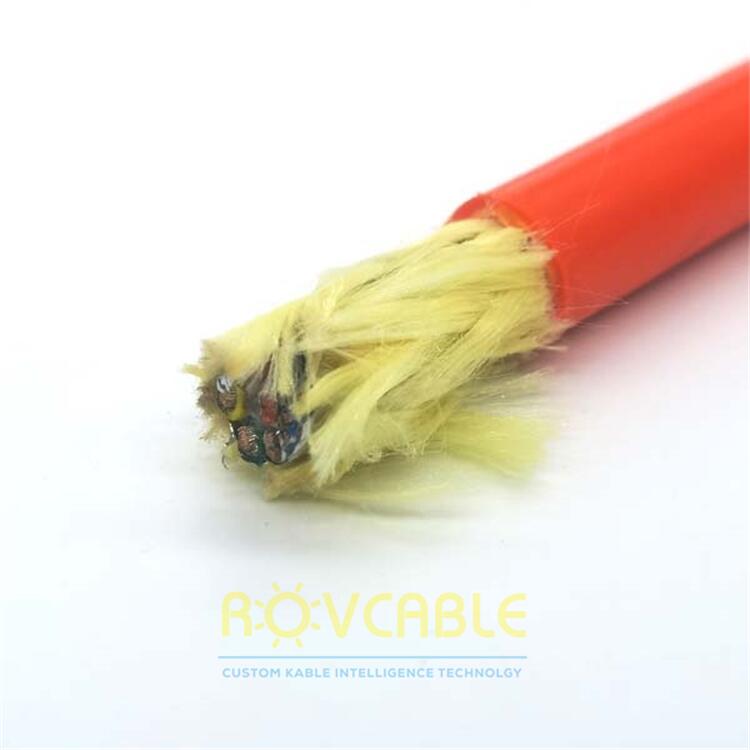

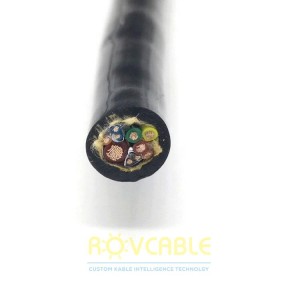

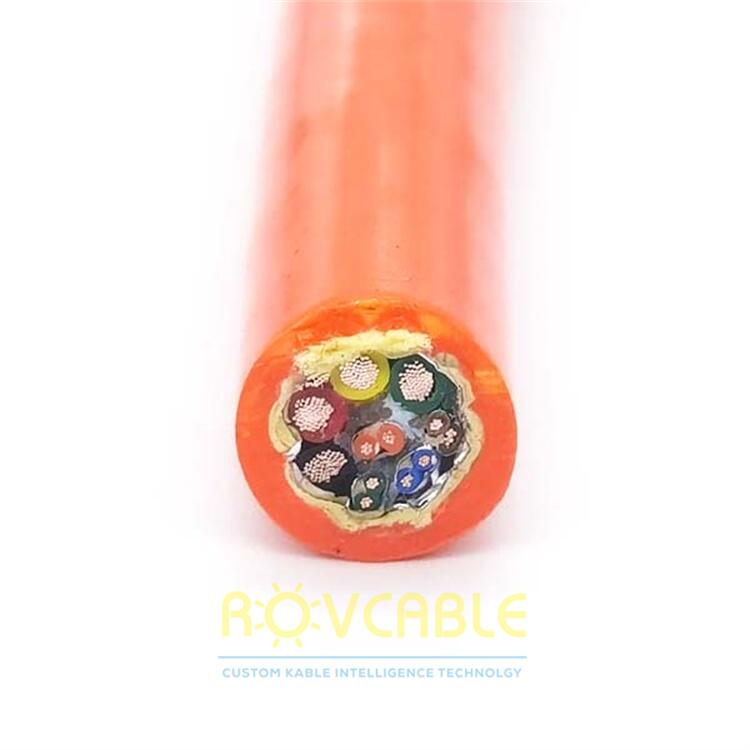

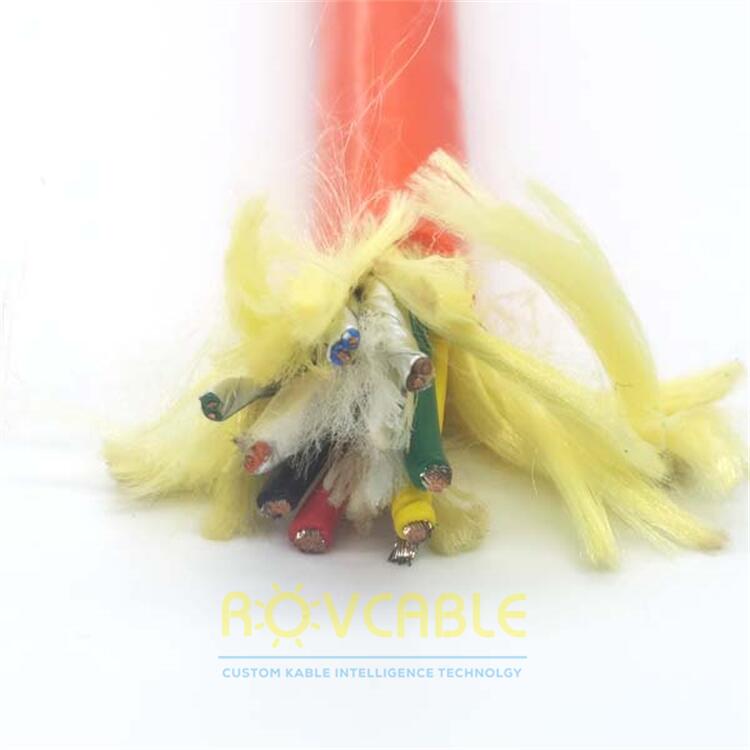

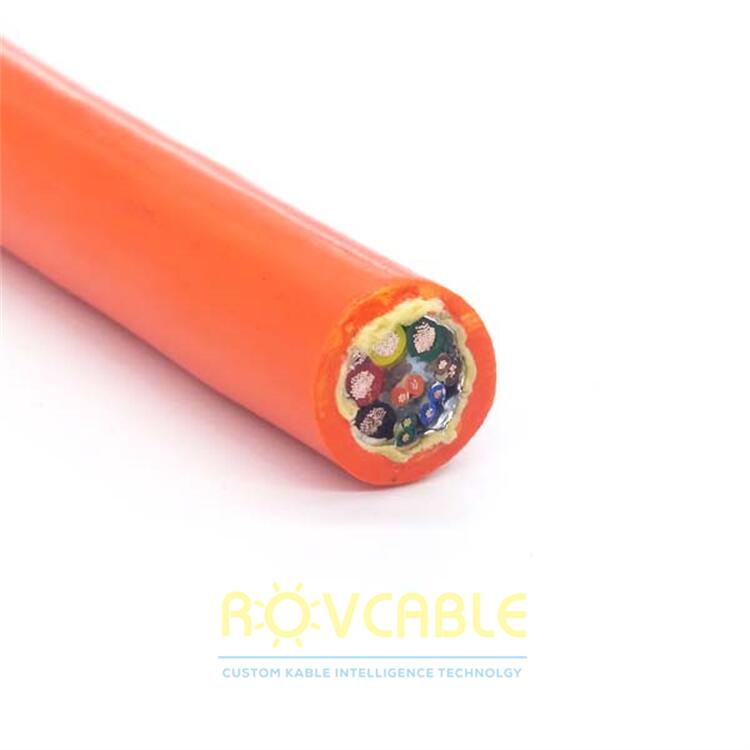

The duct and pipe inspection crawler cable is a combined coaxial and control cable for in-duct and in-pipe CCTV inspection robots. The coaxial core (RG59 or RG6) carries the CCTV video signal from the camera head to the topside monitor, while the control conductors supply power to the camera, drive the crawler motors, and carry PTZ control signals. The PUR jacket provides excellent resistance to the solvents, oils, and wastewater found inside industrial ducts and drainage pipes.
| Parameter | Specification |
|---|---|
| Coaxial | RG59 (standard) or RG6 (HD-compatible, higher bandwidth) |
| Control Cores | Stranded tinned copper (count and CSA per spec) |
| Shielding | Coaxial braid + overall braid on control group |
| Outer Jacket | Polyurethane (PUR) -- chemical resistant |
| OD | 8--15 mm typical (depends on core count) |
| Colour | Black / Yellow (high visibility) |
| Length | Up to 300 m standard |
Request datasheet, custom length, or OEM pricing: sales@rovcable.com -- Shanghai Kabel Intelligence Technology Co., Ltd.
PUR is resistant to a broad range of industrial chemicals, oils, solvents, and detergents. For highly corrosive environments (e.g., acid or alkali pipes), a fluoropolymer (PTFE or FEP) outer jacket is recommended. Contact us with the chemical composition of the pipe environment for a material recommendation.
The control conductors support any serial protocol (RS-485, RS-232) or analog voltage (0--10V, 4-20mA) for PTZ control. The specific protocol is defined by the camera and controller hardware -- the cable is protocol-agnostic and simply provides the electrical path.
