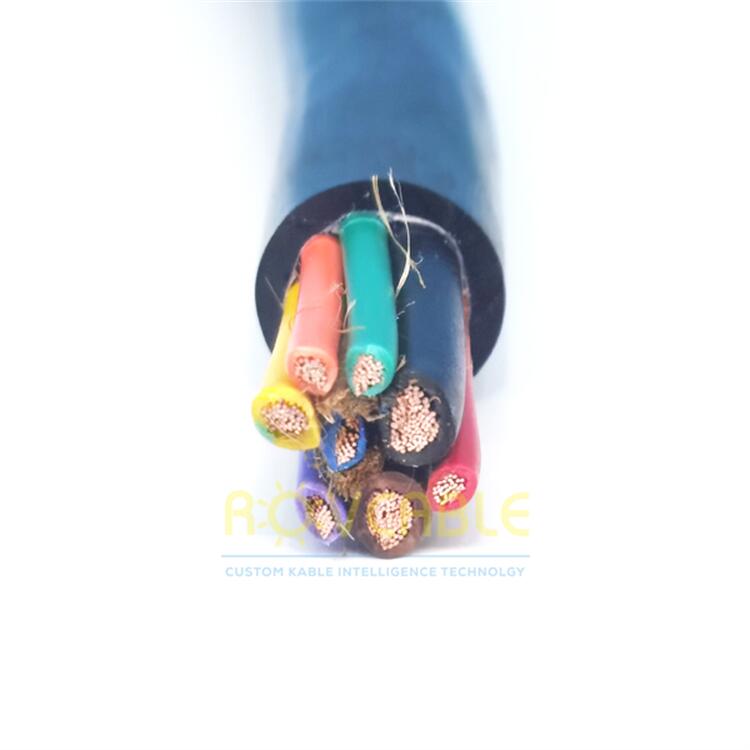

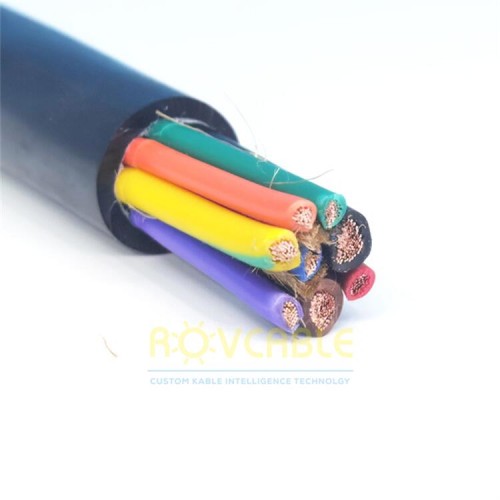

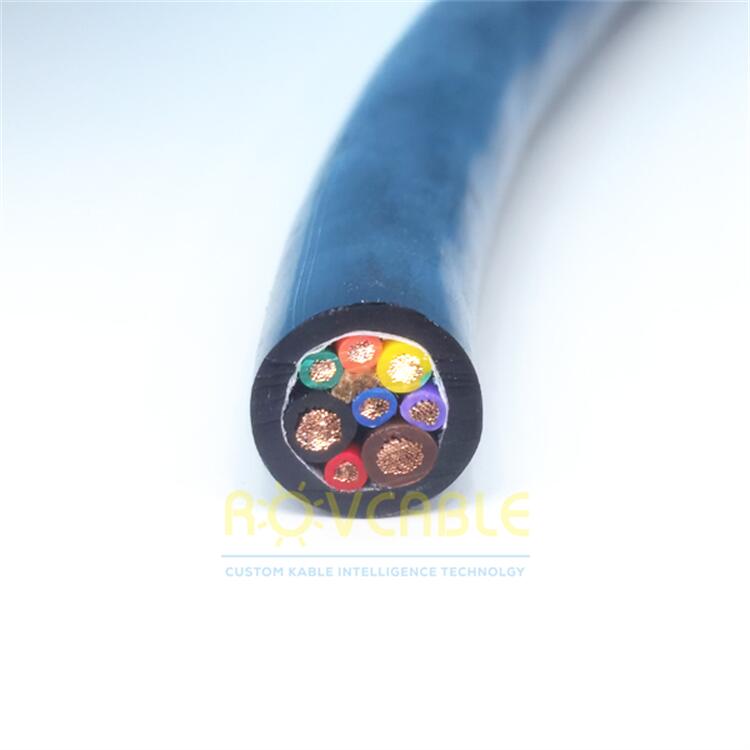

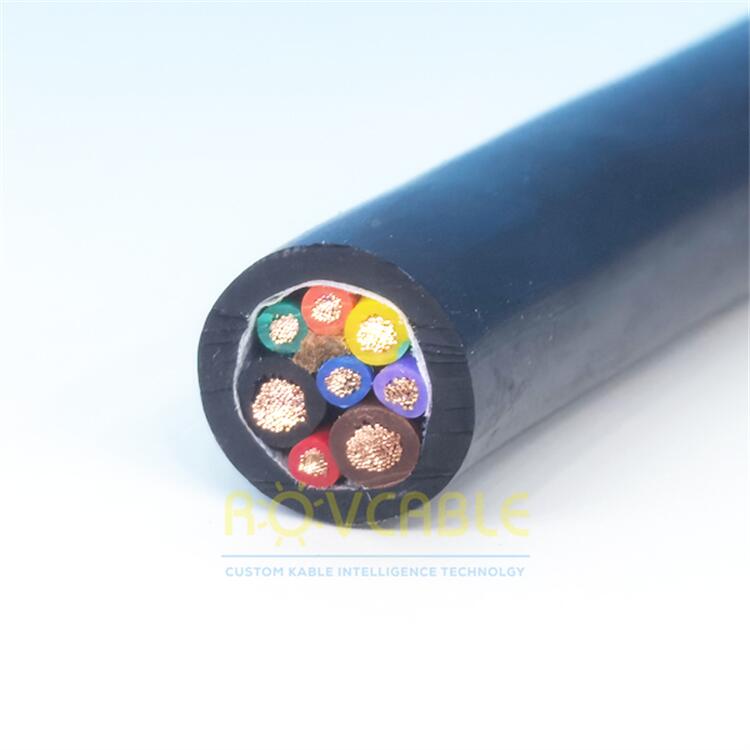

6-core control cable with 2 power cores in PUR jacket for underwater ROV applications. 8 conductors total, for combined control signal and power in subsea systems.
The 6+2 underwater ROV cable provides six control signal cores (for thruster PWM, sensor data, serial comms) alongside two larger power conductors (for motor or light power supply) within a single PUR-jacketed run. The combined design is widely used in observation-class ROV tether systems where a single cable must carry all required power and control functions to the vehicle.
| Parameter | Specification |
|---|---|
| Control Cores | 6 x stranded tinned copper (size per spec) |
| Power Cores | 2 x stranded tinned copper (larger CSA) |
| Total Conductors | 8 |
| Insulation | PE / XLPE |
| Shielding | Overall braid shield |
| Outer Jacket | Polyurethane (PUR) |
| Voltage Rating | 300V (control) / 600V (power, optional) |
| Colour | Black |
| Custom | Conductor sizes, shielding, Kevlar strength member |
Request datasheet, custom length, or OEM pricing: sales@rovcable.com -- Shanghai Kabel Intelligence Technology Co., Ltd.
Typical configurations are 6 x 0.5mm² control + 2 x 1.5mm² power, or 6 x 0.34mm² + 2 x 2.5mm². We manufacture to customer specification -- provide your current requirements and control signal types for a cross-section recommendation.
The standard cable does not include a strength member. A Kevlar or Dyneema braid strength member can be added between the inner and outer jacket layers for tether applications requiring tensile load capability. Specify your required breaking strength when ordering.
