Underwater 4 twisted-pair 8-core network cable with 2x20AWG power cores. PUR jacket, for ROV Ethernet and power combined in one cable run.

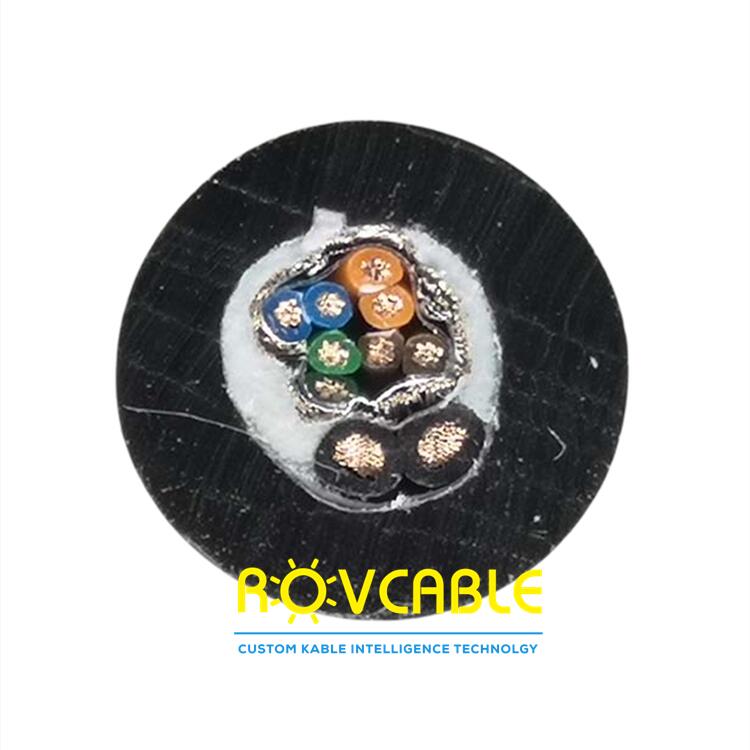

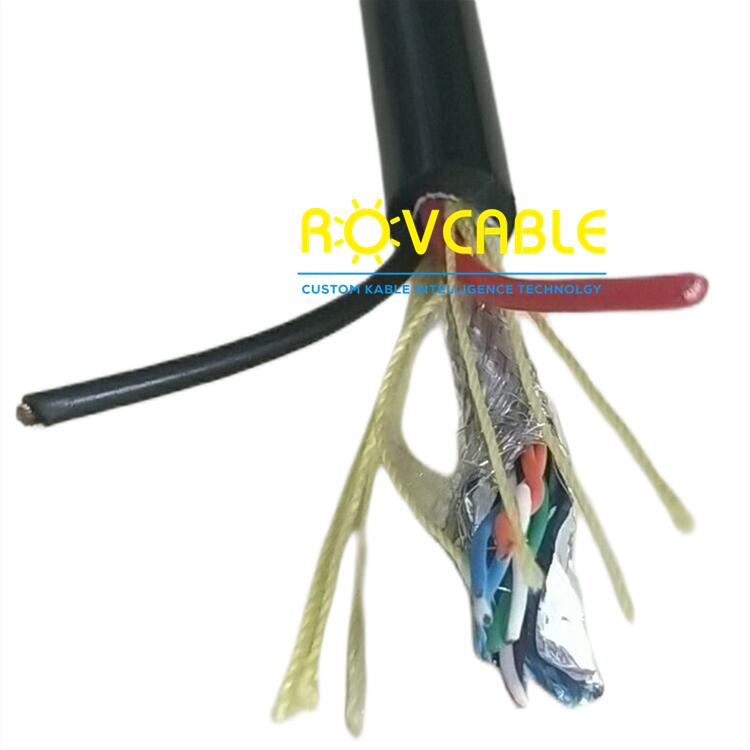

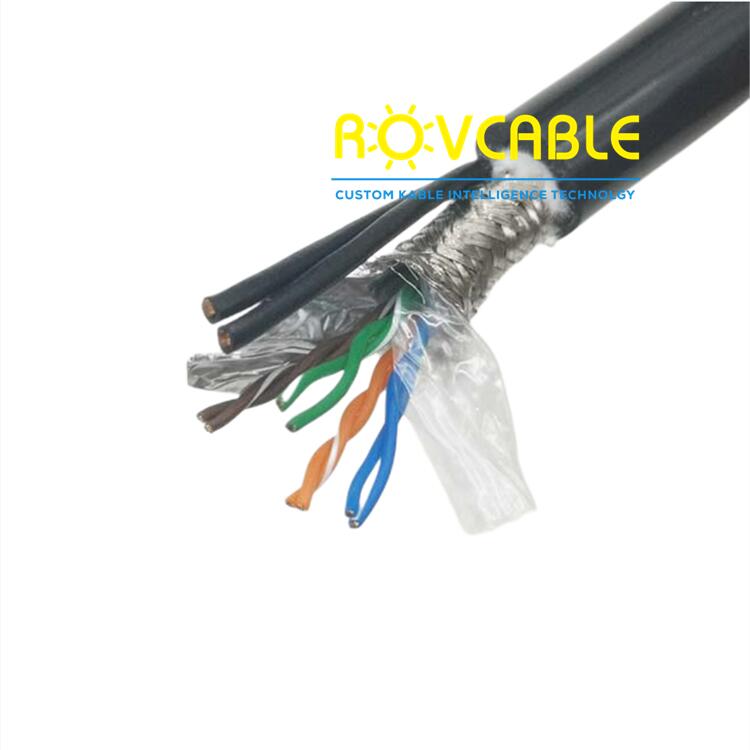

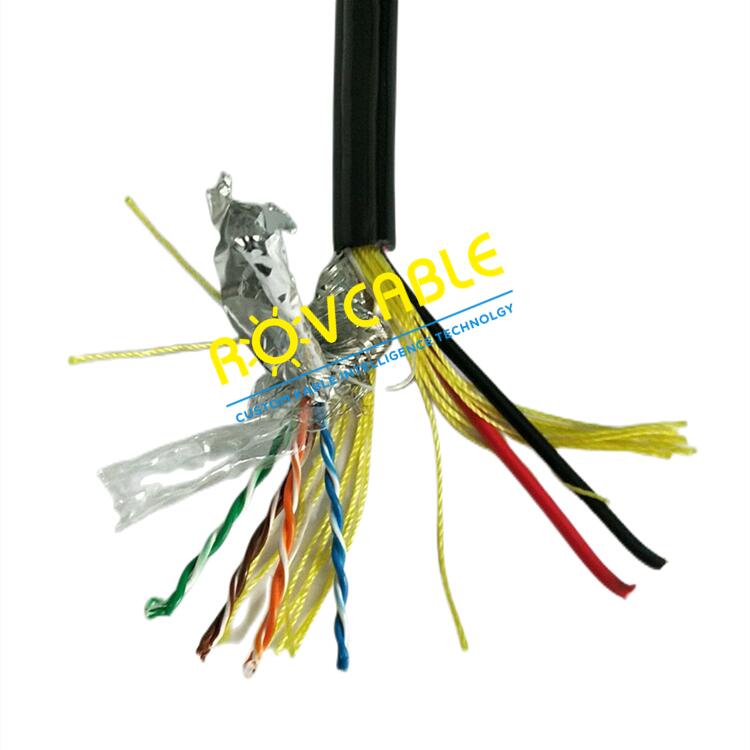

This hybrid underwater cable combines four twisted pairs (8 network cores, Cat5 equivalent) with two 20AWG power conductors in a single PUR outer jacket. The design eliminates the need for separate power and data cable runs in ROV tether bundles, reducing overall cable diameter, weight, and drag while maintaining full Ethernet (100BASE-TX) and power delivery capability.
| Parameter | Specification |
|---|---|
| Network Pairs | 4 x 2 x 24AWG (Cat5-equivalent shielded twisted pairs) |
| Power Cores | 2 x 20AWG stranded tinned copper |
| Conductor Material | Tinned copper (all cores) |
| Pair Shielding | Individual foil + drain wire |
| Overall Shield | Braid |

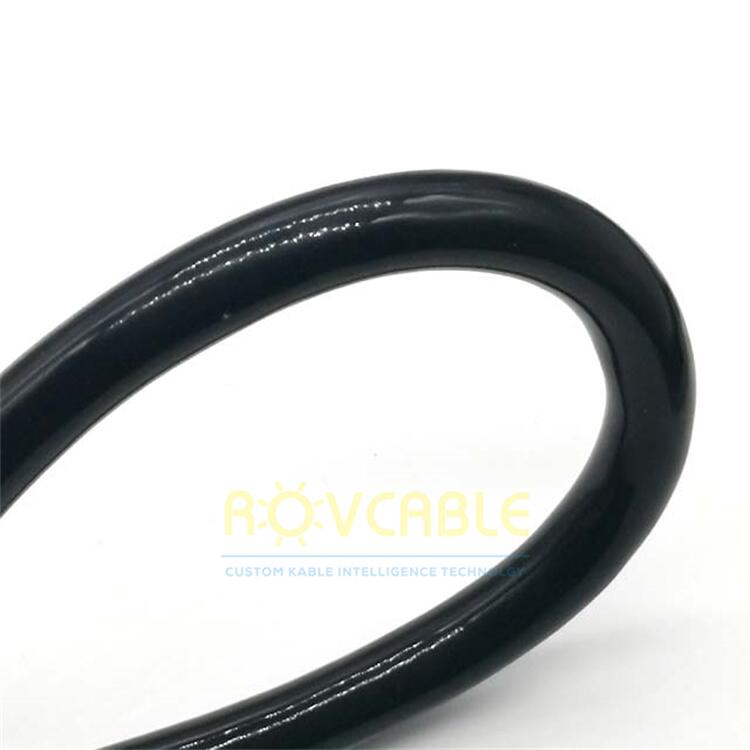

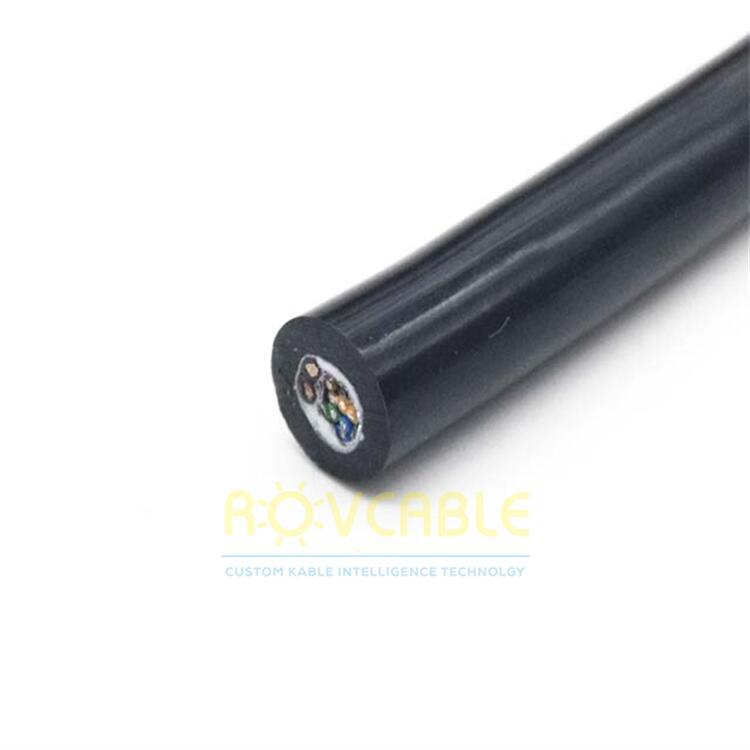

| Outer Jacket | Polyurethane (PUR) |
| Voltage Rating (Power) | 300V |
| Current Rating (Power) | ~4A per 20AWG core |
| Colour | Black |
Request datasheet, custom length, or OEM pricing: sales@rovcable.com -- Shanghai Kabel Intelligence Technology Co., Ltd.
Yes. All four twisted pairs are fully functional as Ethernet pairs simultaneously. The power cores are independent conductors. Ensure power and data are connected to the correct terminals at both ends.
20AWG conductor is rated at approximately 4A continuous at 40°C ambient. For higher power requirements, specify the cable with 18AWG or 16AWG power cores -- contact us for custom conductor sizing.
