Underwater hybrid cable combining RG6 coaxial and Cat6 20AWG shielded conductors in PUR jacket. For ROV video and Ethernet combined in a single subsea cable run.

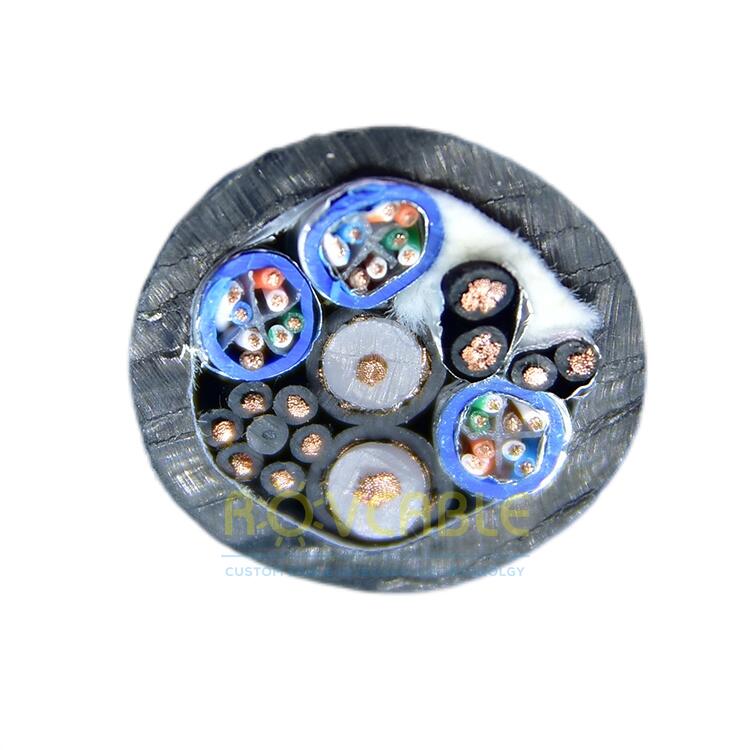

This hybrid underwater cable integrates an RG6 coaxial core (75 Ohm) for analog or HD video transmission with Cat6-equivalent 20AWG shielded twisted pairs for Ethernet communication, all within a single PUR outer jacket. Used in ROV systems and subsea CCTV installations where both a video signal and an IP data channel are required in a single cable run, reducing bundle complexity.
| Parameter | Specification |
|---|---|
| Coaxial Core | RG6 (75 Ohm, copper-clad or solid copper centre) |
| Network Cores | Cat6 equivalent, 20AWG shielded twisted pairs |
| Conductor Material | Tinned copper |
| Pair Shield | Individual foil + drain |
| Overall Shield | Braid |
| Outer Jacket | Polyurethane (PUR) |
| Video Bandwidth | >1 GHz (RG6) |
| Network Bandwidth | 250 MHz (Cat6) |
| Colour | Black |
Request datasheet, custom length, or OEM pricing: sales@rovcable.com -- Shanghai Kabel Intelligence Technology Co., Ltd.
Yes. RG6 coaxial cable is commonly used for HD-SDI video at frequencies up to 1.5 GHz (HD-SDI) and 3 GHz (3G-SDI). The cable length affects signal quality -- for runs over 100 m, use an SDI equaliser/reclocking amplifier at the topside receiver.
Yes. The Cat6 shielded pairs can carry PoE (802.3af/at, up to 30W) simultaneously with Ethernet data. Ensure the power budget is calculated for the cable resistance at the working length and conductor size.
