2 Pin Micro Circular Underwater Connector -- MCBH2F & MCIL2M | IP69K | Power & Signal

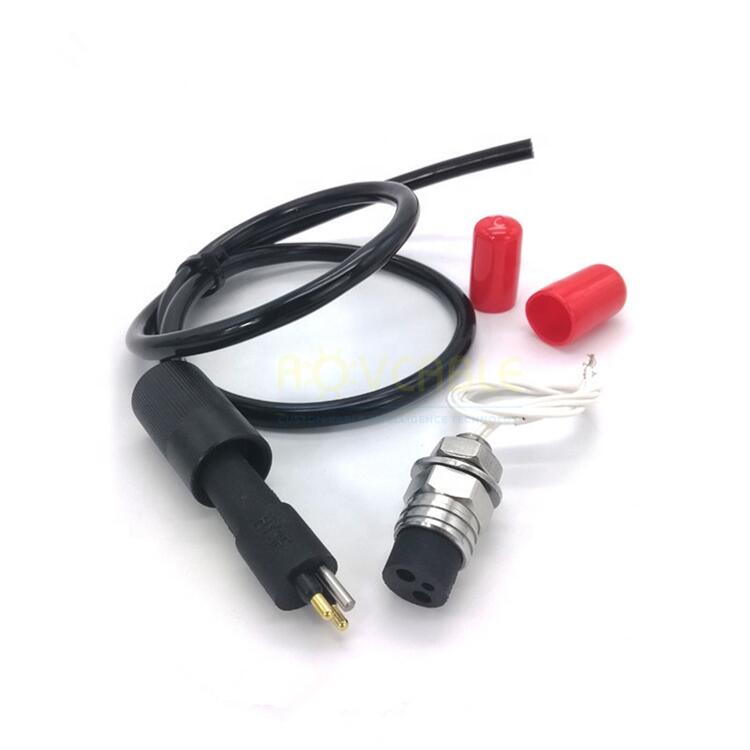

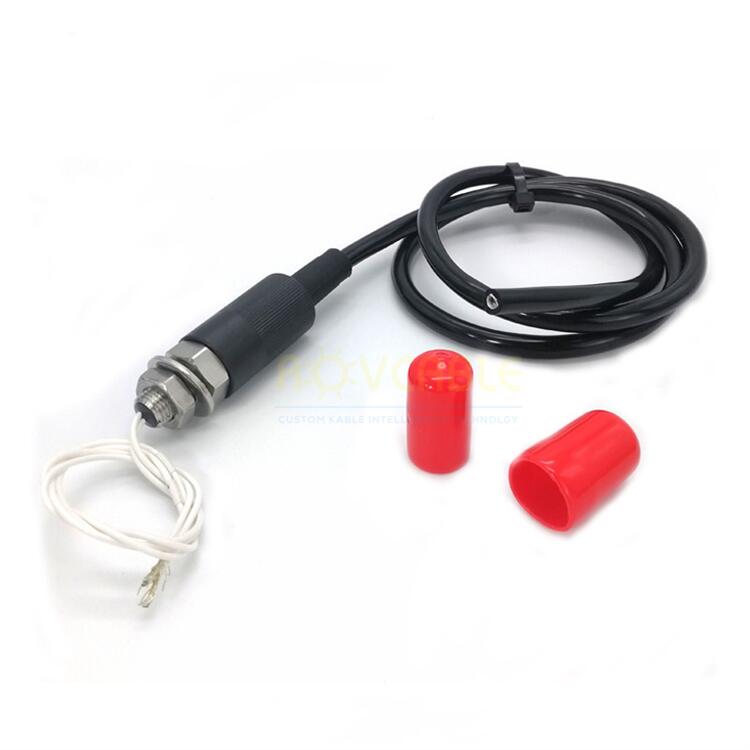

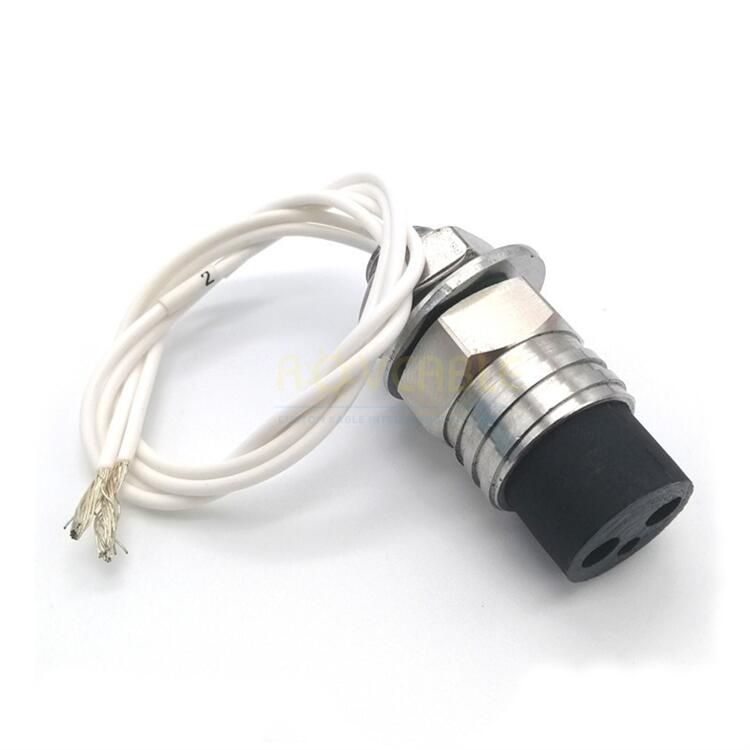

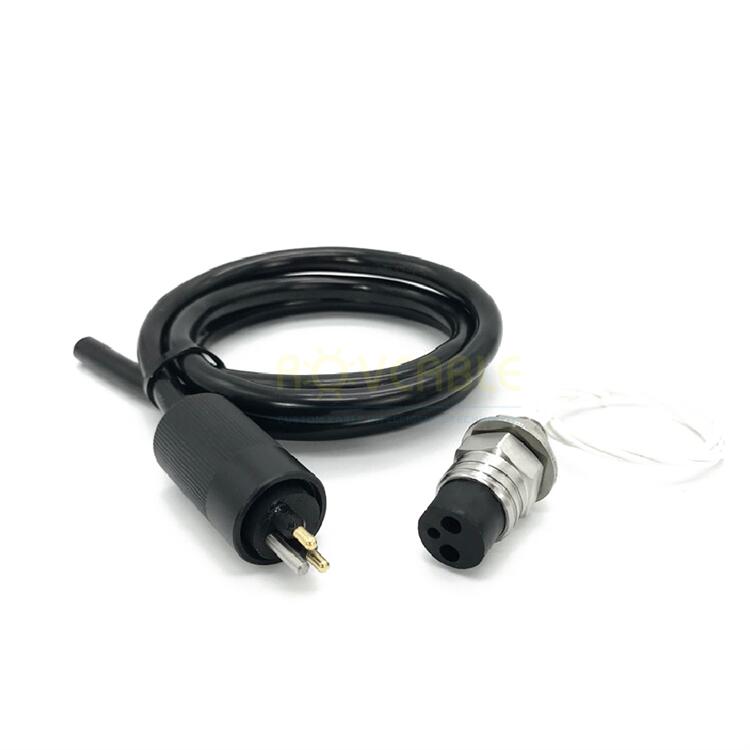

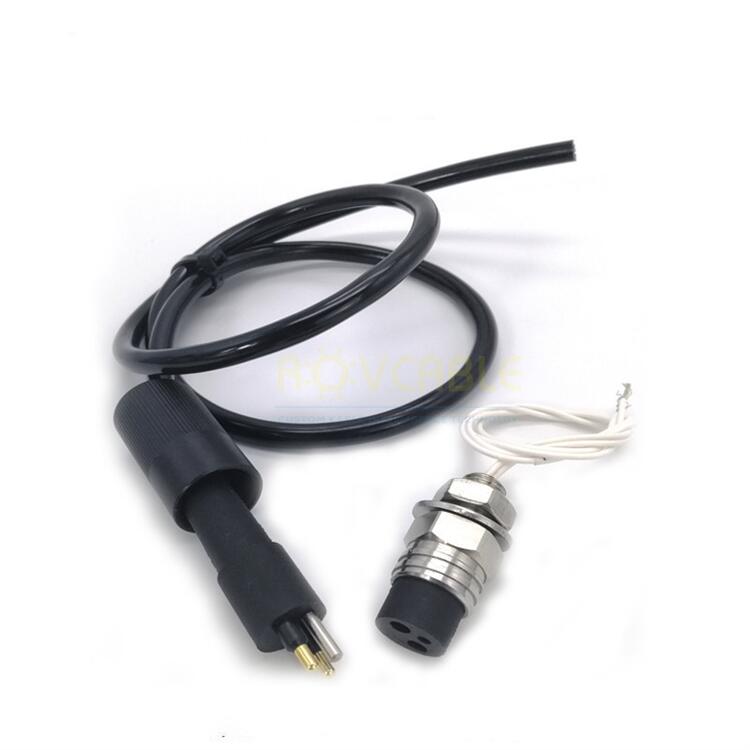

Shanghai Kabel Intelligence Technology Co., Ltd supplies 2-contact micro circular wet-mateable underwater connectors including MCBH2F (bulkhead female) and MCIL2M (in-line male). The 2-contact format is the simplest and most compact in the Micro Circular platform -- dedicated to single-circuit DC power supply, sensor output lines, or simple on/off control signals. Rated to 7,000 m depth, IP68/IP69K sealed.
Available Models -- 2 Contact
|
Part Number
|
Type
|
Gender
|
Notes
|
|
MCBH2M
|
Bulkhead
|
Male (pins)
|
Standard
|
|
MCBH2F
|
Bulkhead
|
Female (sockets)
|
Standard / IP69K option
|
|
MCIL2M
|
In-Line
|
Male (pins)
|
Standard / IP69K option
|
|
MCIL2F
|
In-Line
|
Female (sockets)
|
Standard
|
|
MCBHRA2M
|
Right-Angle Bulkhead
|
Male (pins)
|
90-degree body
|
|
MCDC2F
|
Dummy Cap
|
--
|
Protects MCBH2M
|
Technical Specifications
-
Contact count: 2
-
Depth rating: 7,000 m
-
IP rating: IP68 (standard) / IP69K (option)
-
Voltage: 600 V AC/DC
-
Current per contact: 10 A
-
Shell: Hard-anodized aluminium / Titanium / Stainless steel option
-
Insulator: PEEK
-
Contacts: Gold-plated copper alloy
-
Sealing: Dual O-ring per contact + face seal
-
Hydrostatic test: 600 psig, certificate included
-
Compatibility: SubConn MCBH2 / MCIL2 series
Typical 2-Pin Applications
-
Dedicated power supply: 24 V DC + return for a single subsea device
-
Single analog sensor output: 4-20 mA signal + ground
-
On/off control: Relay output + common
-
Battery charging: Battery positive + negative on AUVs and drones
-
Leak detection: Sensor signal + return
Applications
-
ROV thruster controller power supply
-
Subsea LED lighting power connectors
-
Underwater battery charging interfaces on AUVs
-
Single-channel oceanographic sensor connectors
-
Offshore subsea pressure transmitter connectors
-
Marine renewable energy monitoring sensors
For quotation and technical support:
Email: sales@rovcable.com
Website: www.rovconnector.com | www.rovcable.com
Address: No.100 Yezhuang Road, Fengxian District, Shanghai, China 201415
Frequently Asked Questions
Does MCBH2F mate with SubConn MCIL2M?
Yes. Shanghai Kabel MCBH2F mates directly with OEM SubConn MCIL2M -- identical mating interface.
Why use a dedicated 2-pin connector instead of piggybacking on unused contacts in a larger connector?
A dedicated 2-pin connector simplifies fault isolation, allows independent disconnection of one circuit without disturbing others, and reduces per-contact current sharing issues in high-power circuits (up to 20 A total for 2 x 10 A contacts).
Is a 2-pin connector available in stainless steel?
Yes, MCBH2M-SS and MCBH2F-SS are available. Contact sales@rovcable.com for pricing.
Applications
-
ROV and AUV underwater vehicle systems requiring compact, reliable connectivity
-
Subsea sensor instrumentation, oceanographic data acquisition platforms
-
Underwater camera, video and LED lighting systems at varying depths
-
Ocean bottom seismic systems and marine renewable energy installations
-
Naval systems, diving equipment and offshore infrastructure monitoring
Customization Options
-
Custom cable harness lengths, wire terminations and direct moulding services
-
Alternative connector body materials: anodized aluminum, SS316, or titanium
-
Certified hydrostatic pressure testing to customer-specified ocean depths
-
Custom bulkhead thread lengths, O-ring configurations and locking sleeve options
