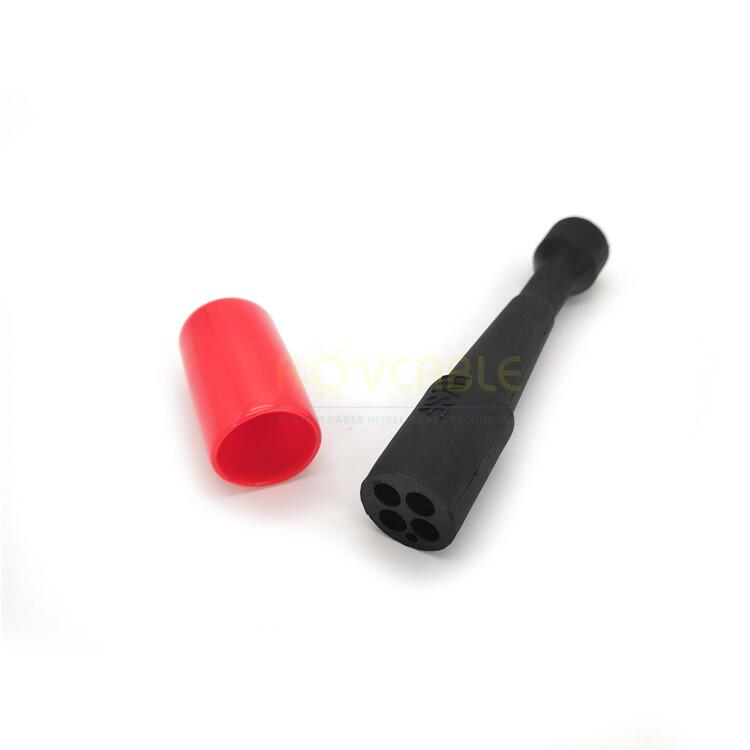

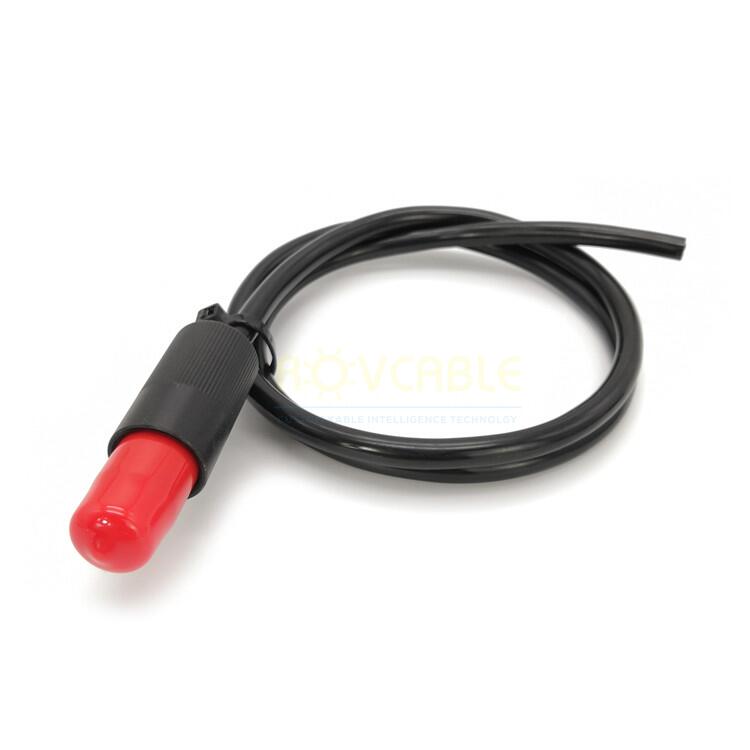

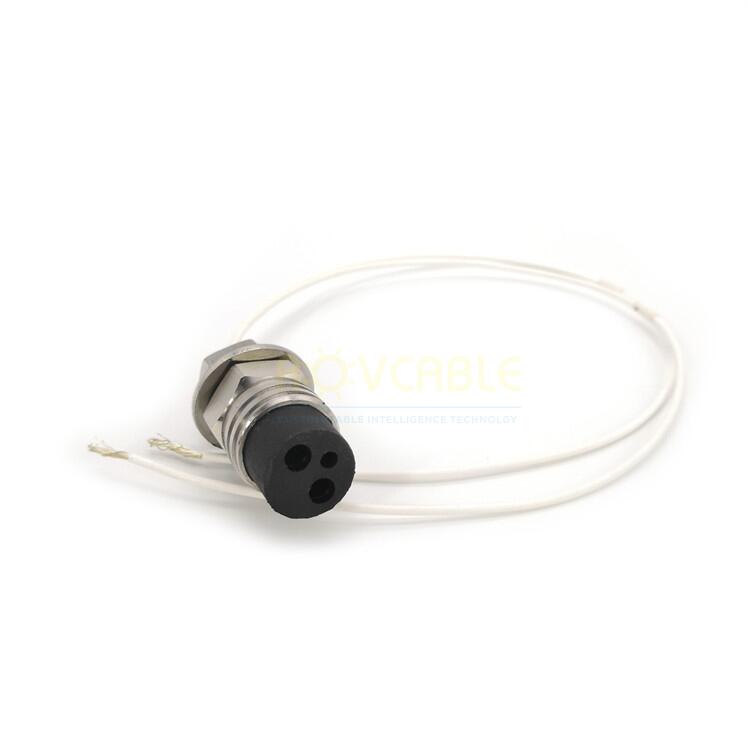

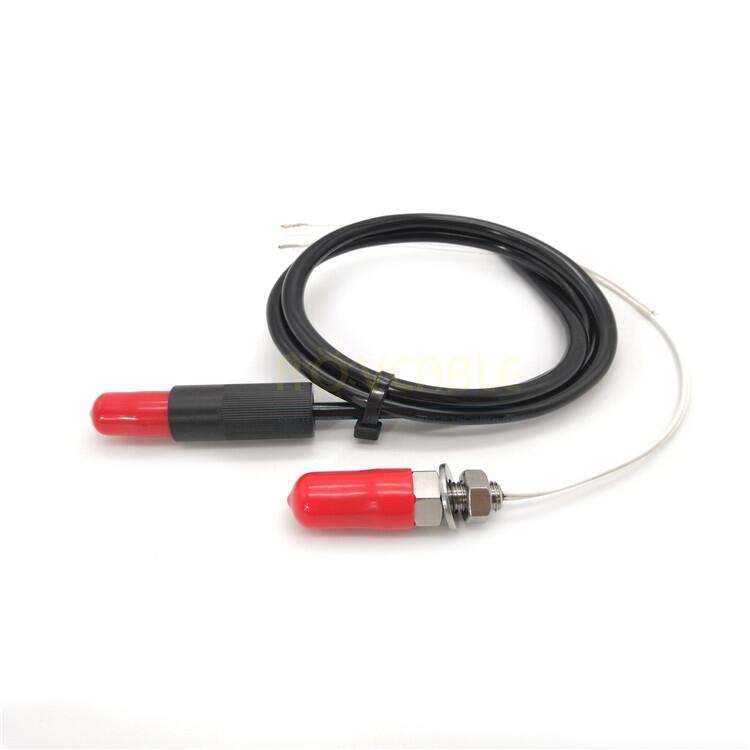

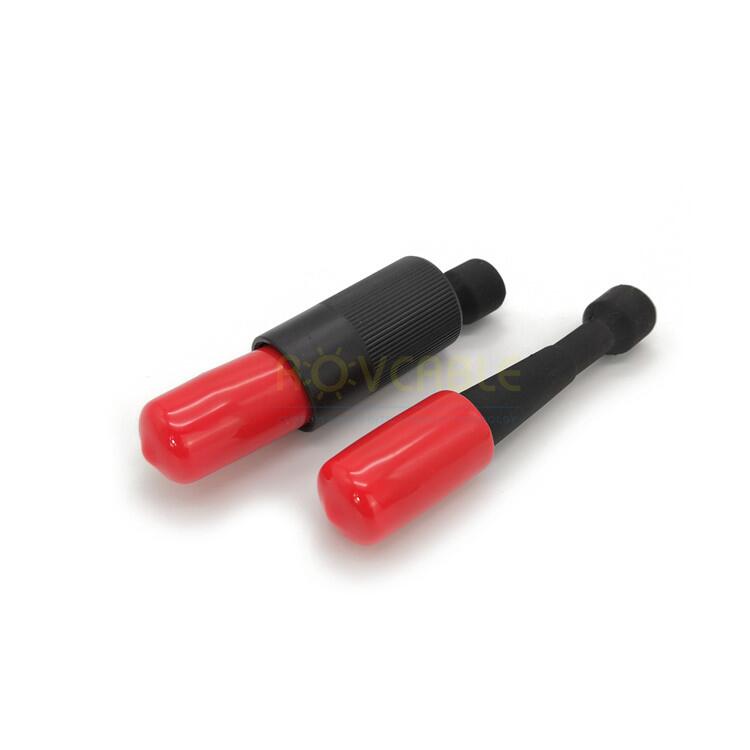

IP69K Waterproof Micro Circular Underwater Connectors -- 2 to 16 Pin
Shanghai Kabel Intelligence Technology Co., Ltd offers micro circular underwater connectors certified to IP69K -- the highest ingress protection rating under IEC 60529. Unlike standard IP68 (static submersion only), IP69K connectors additionally withstand 80 degC high-pressure water jets at 100 bar at close range. This makes them suitable for subsea assets that undergo periodic topside pressure-washing or steam-cleaning.
Available in 2, 3, 4, 5, 6, 8, 10, 12, 14, and 16 contacts. Depth rated to 7,000 m.
IP69K vs IP68 -- What Is the Difference?
|
Rating
|
Test Condition
|
Protection
|
|
IP68
|
Static submersion, depth/time per manufacturer spec
|
Continuous underwater submersion
|
|
IP69K
|
80 degC water, 100 bar, 3 L/min, 11-15 cm, 360 deg sweep
|
High-pressure hot water jet + submersion
|
All Shanghai Kabel IP69K connectors simultaneously meet both IP68 and IP69K requirements.
Technical Specifications
-
Contact options: 2, 3, 4, 5, 6, 8, 10, 12, 14, 16
-
IP rating: IP69K + IP68 (dual certified)
-
Depth rating: 7,000 m (700 bar hydrostatic)
-
Voltage: 600 V AC/DC
-
Current: Up to 10 A per contact
-
Shell: Anodized aluminium / Stainless steel / Titanium
-
Insulator: PEEK
-
Sealing: Dual O-ring + high-pressure face seal
-
Hydrostatic test: 600 psig per unit, certificate supplied
When to Specify IP69K
-
ROV and subsea tooling that undergoes topside pressure-wash between dives
-
Offshore deck equipment and splash-zone panels
-
Aquaculture and fish farm sensor systems subject to sanitisation washing
-
Port and harbour monitoring equipment
-
Commercial diving equipment subject to hosing-down maintenance
Applications
-
Work-class ROV tool skid connectors
-
Subsea inspection camera systems
-
Offshore platform topside-to-subsea umbilical panels
-
Aquaculture underwater sensor arrays
-
Harbour and port underwater monitoring systems
For quotation and technical support:
Email: sales@rovcable.com
Website: www.rovconnector.com | www.rovcable.com
Address: No.100 Yezhuang Road, Fengxian District, Shanghai, China 201415
Frequently Asked Questions
Is an IP69K connector also safe to submerge at depth?
Yes. All Shanghai Kabel IP69K connectors simultaneously hold IP68 certification for continuous deep-sea submersion.
Does IP69K affect SubConn compatibility?
No. The upgraded sealing does not change the external mating interface. IP69K connectors mate with standard MCBH/MCIL connectors of the same contact count.
Can I get 14-contact IP69K connectors?
Yes. 14-contact is a less common option -- lead time may be 3-4 weeks. Contact sales@rovcable.com for availability.
Applications
-
ROV and AUV underwater vehicle systems requiring compact, reliable connectivity
-
Subsea sensor instrumentation, oceanographic data acquisition platforms
-
Underwater camera, video and LED lighting systems at varying depths
-
Ocean bottom seismic systems and marine renewable energy installations
-
Naval systems, diving equipment and offshore infrastructure monitoring
Customization Options
-
Custom cable harness lengths, wire terminations and direct moulding services
-
Alternative connector body materials: anodized aluminum, SS316, or titanium
-
Certified hydrostatic pressure testing to customer-specified ocean depths
-
Custom bulkhead thread lengths, O-ring configurations and locking sleeve options
