12 Pin Micro Circular Underwater Connector -- MCIL12M & MCBH12F

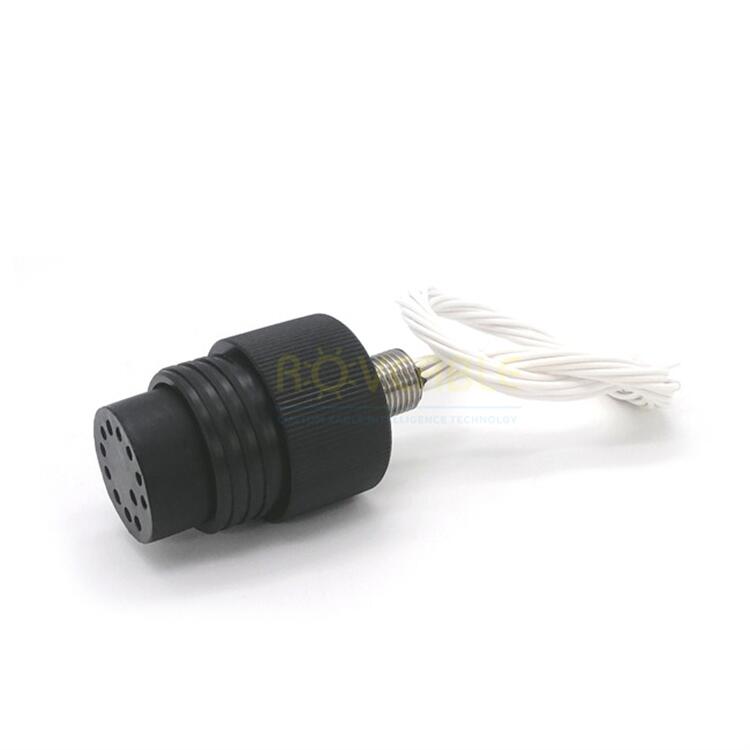

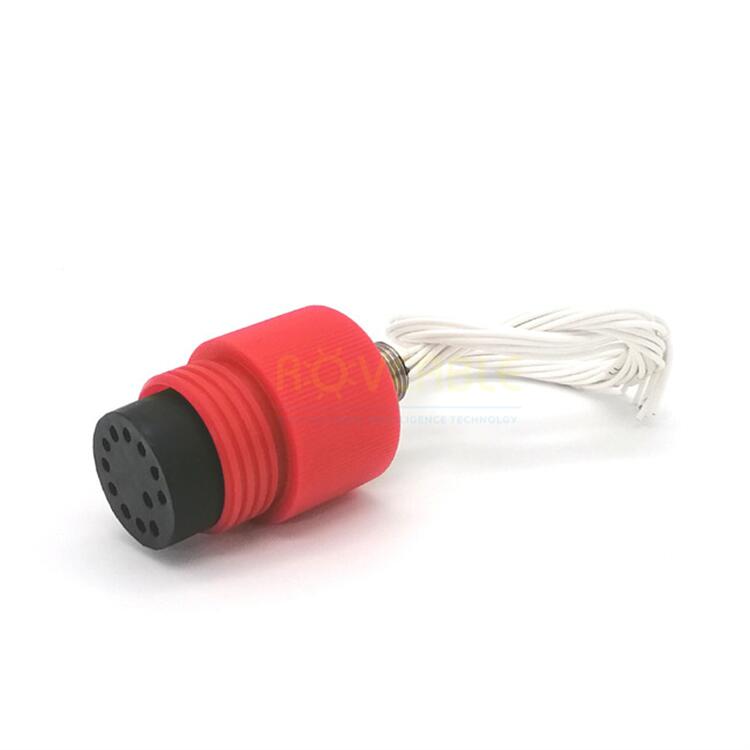

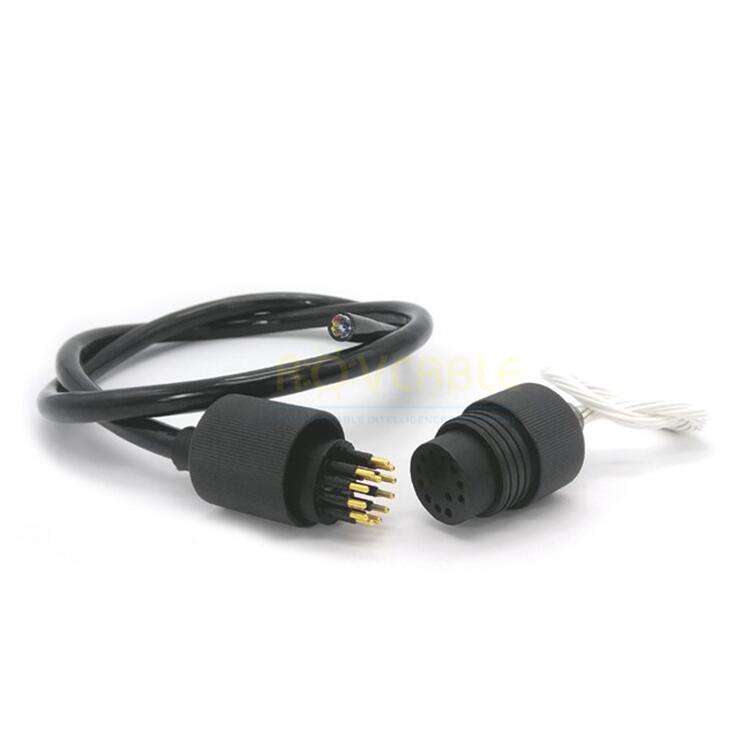

Shanghai Kabel Intelligence Technology Co., Ltd 12-pin micro circular connectors (MCIL12M, MCBH12F, MCBH12M, MCIL12F) are the standard 12-contact underwater interface for ROV tether assemblies, combined camera-lighting connectors, and multi-bus subsea instrument connections. Rated to 7,000 m depth, IP68, SubConn® MCBH12/MCIL12 compatible.
Available Models
|
Type
|
Part Number
|
Gender
|
Common Pairing
|
|
Bulkhead
|
MCBH12M
|
Male (pins)
|
Pairs with MCIL12F
|
|
Bulkhead
|
MCBH12F
|
Female (sockets)
|
Pairs with MCIL12M
|
|
In-Line
|

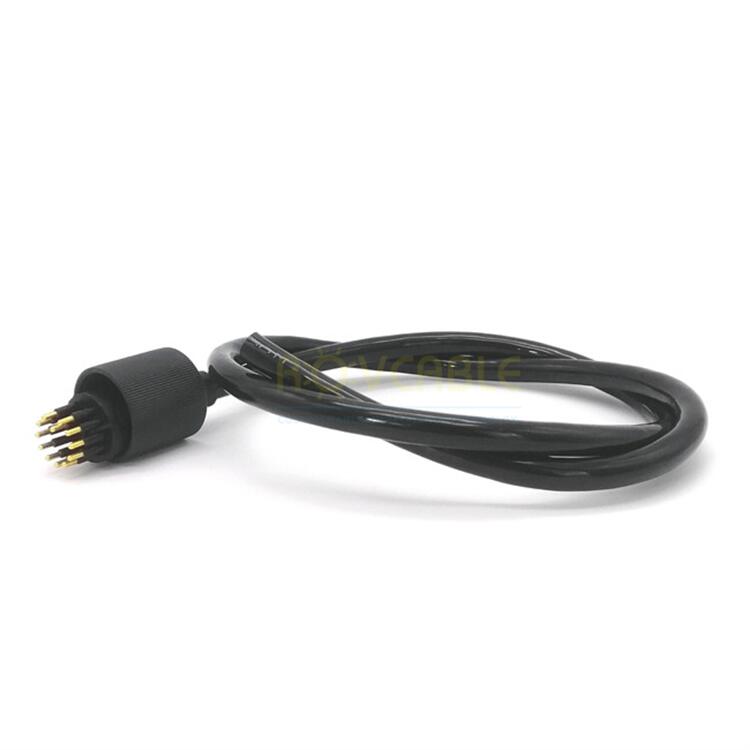

MCIL12M
|
Male (pins)
|
Pairs with MCBH12F
|
|
In-Line
|
MCIL12F
|
Female (sockets)
|
Pairs with MCBH12M
|
|
Dummy Cap
|
MCDC12F
|
--
|
Protects MCBH12M
|
Technical Specifications
-
Contact count: 12
-
Depth rating: 7,000 m
-
IP rating: IP68
-
Voltage: 600 V AC/DC
-
Current per contact: 10 A
-
Shell: Hard-anodized aluminium / Titanium option
-
Insulator: PEEK
-
Contacts: Gold-plated copper alloy
-
Sealing: Dual O-ring per contact + face seal
-
Locking: Threaded locking ring (screw-type)
-
Hydrostatic test: 600 psig, certificate supplied
-
Compatibility: SubConn MCBH12 / MCIL12
Typical 12-Pin Wiring Allocations
-
Camera + lighting combo: 2 power + 4 video differential + 4 auxiliary + 2 spare
-
Multi-sensor instrument: 2 power, 2 RS-485 bus A, 2 RS-485 bus B, 2 RS-232, 2 analog, 2 ground
-
Thruster + sensor: 3-phase motor (3 contacts) + encoder feedback (4 contacts) + power/control (5 contacts)
Applications
-
ROV camera and lighting combined connector assemblies
-
Subsea tether umbilical bulkhead terminations
-
Multi-bus oceanographic sensor packages
-
AUV sensor payload interfaces
-
Subsea junction box I/O connectors
