Micro Circular Straight Cable Plug Underwater Connectors -- 2 3 4 5 6 8 Pin | IP68 | 7000m Depth

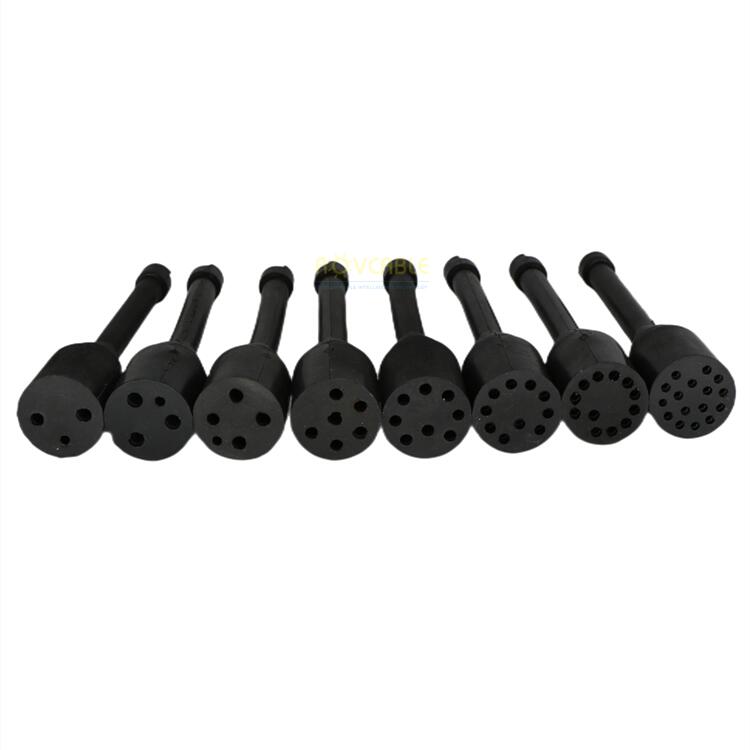

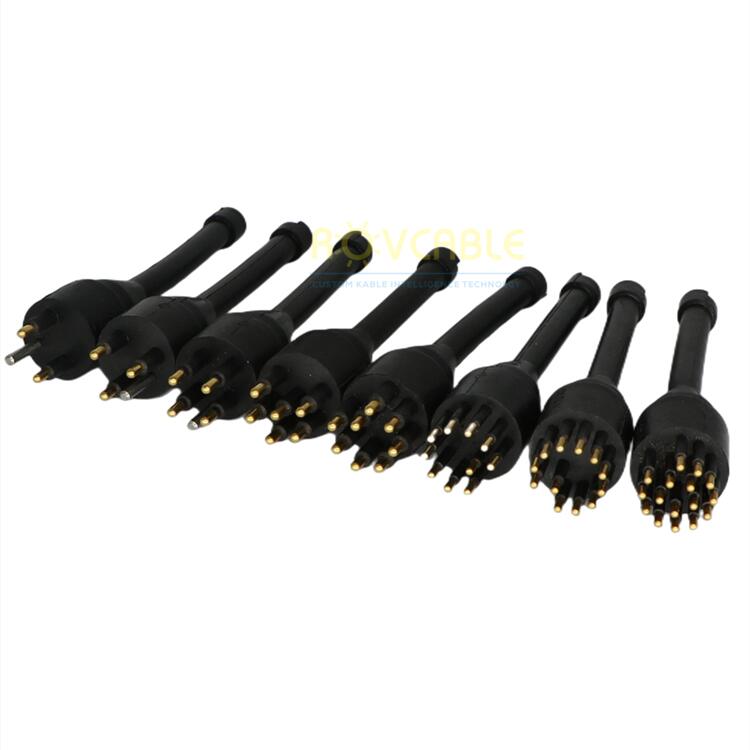

Shanghai Kabel Intelligence Technology Co., Ltd supplies the full range of micro circular waterproof straight cable plug connectors (in-line type) in 2, 3, 4, 5, 6, and 8-pin counts. These are the MCIL series (Micro Circular In-Line) -- the cable-end wet-mateable plugs that connect to MCBH bulkhead receptacles installed in ROV housings, sensor enclosures, and subsea junction boxes.

All straight-body in-line connectors are rated to 7,000 m depth, IP68 sealed, and SubConn® MCIL compatible across all contact counts.

Full Model Matrix -- Straight In-Line Plugs

MCIL Male (pin contacts) mates with MCBH Female (socket contacts), and vice versa. Mixed mating with OEM SubConn MCIL/MCBH connectors is fully confirmed.

Technical Specifications

• Contact counts: 2, 3, 4, 5, 6, 8
• Body type: Straight in-line (axial cable exit)
• Depth rating: 7,000 m
• IP rating: IP68
• Voltage: 600 V AC/DC
• Current per contact: 10 A
• Shell: Hard-anodized aluminium / Titanium / Stainless steel option
• Insulator: PEEK
• Contacts: Gold-plated copper alloy
• Sealing: Dual O-ring per contact + face seal
• Locking: Threaded locking ring
• Hydrostatic test: 600 psig, certificate supplied
• Mating cycles: 500+

Cable Assembly Options

Shanghai Kabel supplies MCIL connectors as:

• Bare (unmolded): Connector body only -- customer-terminated to own cable
• Back-shell molded assembly: Factory-terminated to customer-specified cable, with PU or PE overmold strain relief
• Matched pair assembly: MCIL + MCBH pre-terminated and tested as a pair

Applications

• ROV thruster, camera, and lighting cable assemblies
• Subsea sensor drop cable terminations
• AUV payload module connectors
• Oceanographic mooring instrument interfaces
• Offshore subsea umbilical intermediate connectors

For quotation and technical support:
Email: sales@rovcable.com
Website: www.rovconnector.com | www.rovcable.com
Address: No.100 Yezhuang Road, Fengxian District, Shanghai, China 201415

Frequently Asked Questions

What is the difference between MCIL Male and MCIL Female?

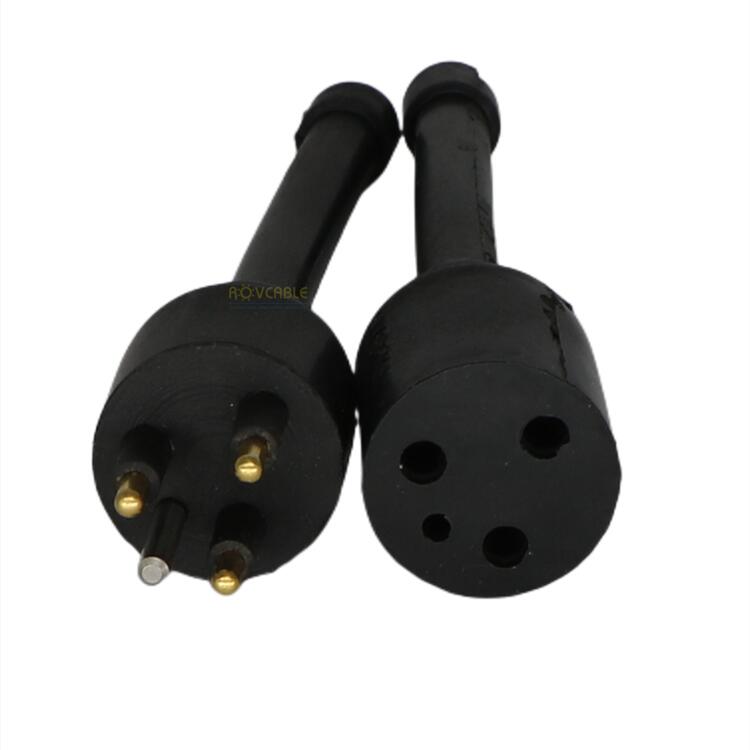

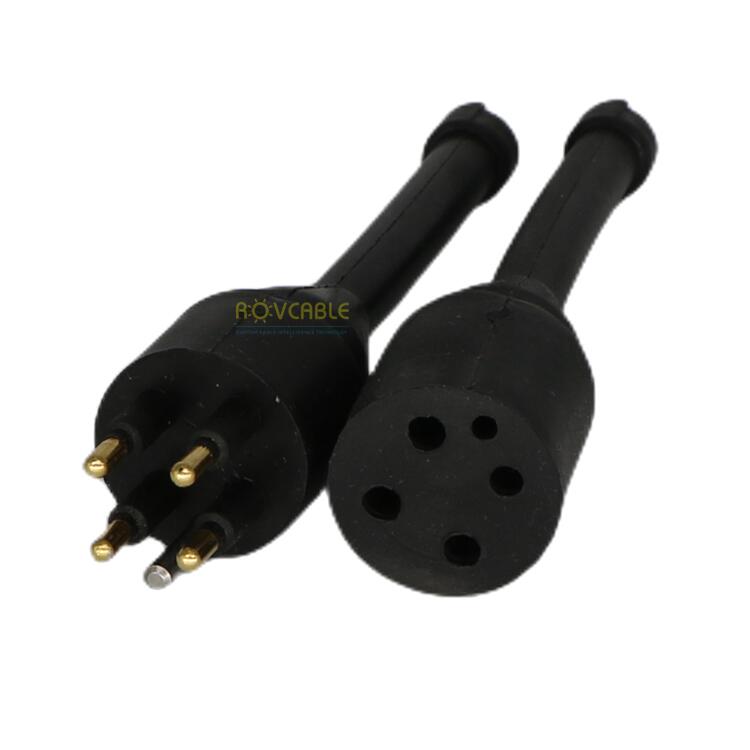

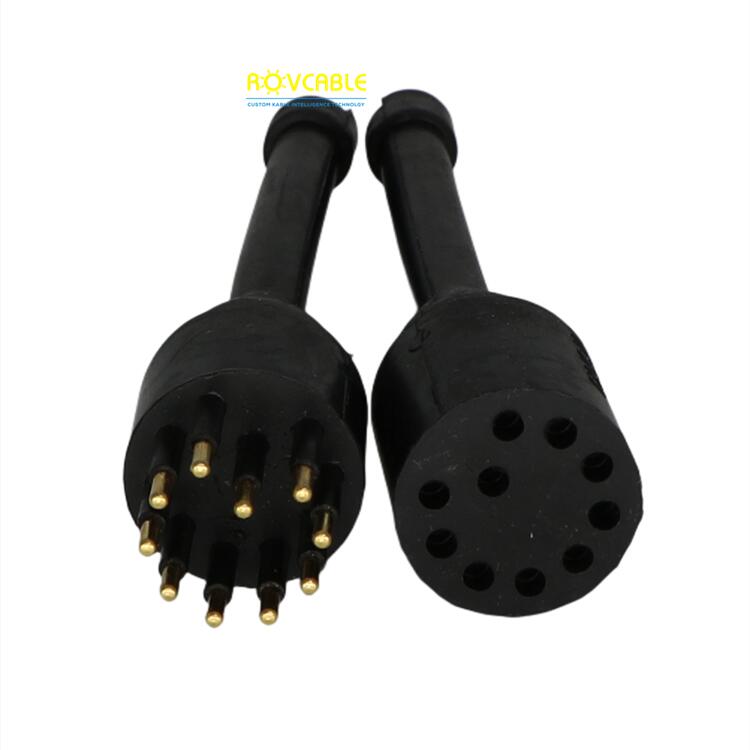

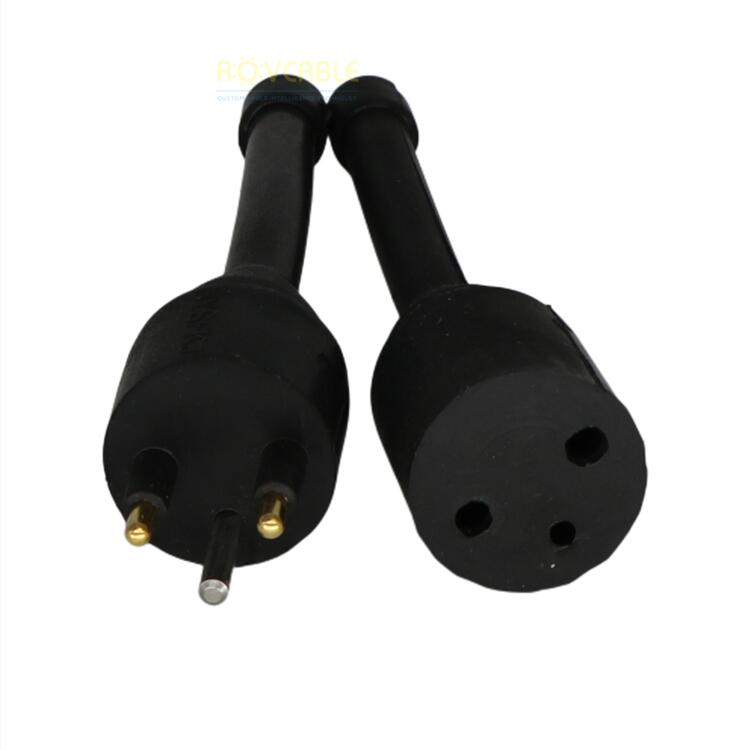

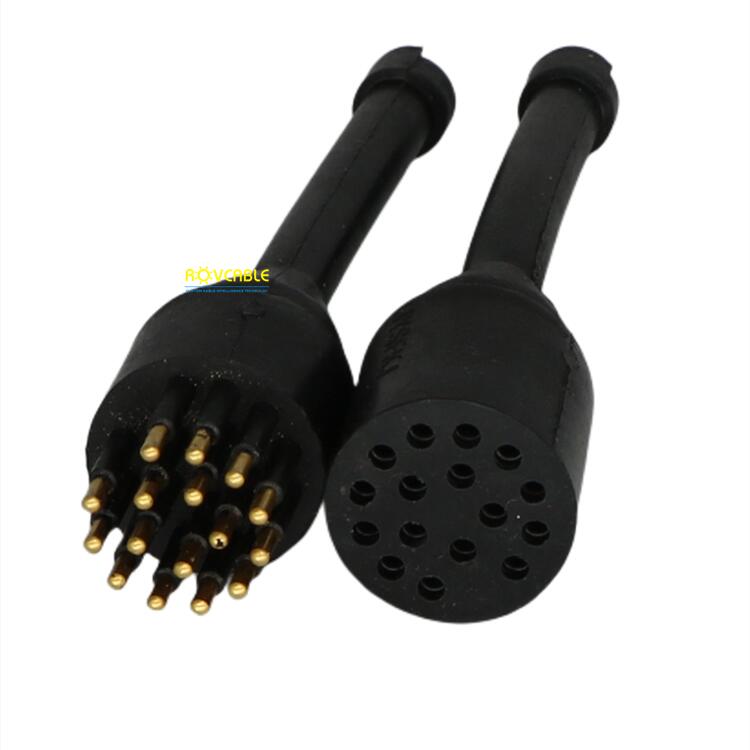

MCIL Male has pin contacts. MCIL Female has socket (barrel) contacts. MCIL Male mates with MCBH Female (socket bulkhead), and MCIL Female mates with MCBH Male (pin bulkhead). Specify clearly when ordering.

Can I order pre-terminated cable assemblies?

Yes. Specify cable OD, length, conductor cross-section, connector models at each end, and any overmold requirements. Factory-tested assemblies ship with a pressure test certificate.

Are these connectors compatible with SubConn MCIL?

Yes. Shanghai Kabel MCIL connectors are SubConn MCIL compatible -- they mate with OEM SubConn MCBH bulkheads in the field.

Applications

• ROV and AUV underwater vehicle systems requiring compact, reliable connectivity
• Subsea sensor instrumentation, oceanographic data acquisition platforms
• Underwater camera, video and LED lighting systems at varying depths
• Ocean bottom seismic systems and marine renewable energy installations
• Naval systems, diving equipment and offshore infrastructure monitoring

Customization Options

• Custom cable harness lengths, wire terminations and direct moulding services
• Alternative connector body materials: anodized aluminum, SS316, or titanium
• Certified hydrostatic pressure testing to customer-specified ocean depths
• Custom bulkhead thread lengths, O-ring configurations and locking sleeve options
