Micro Circular Underwater Connectors -- MCBH MCIL Series Full Range | IP68 | 7000m | SubConn Compatible

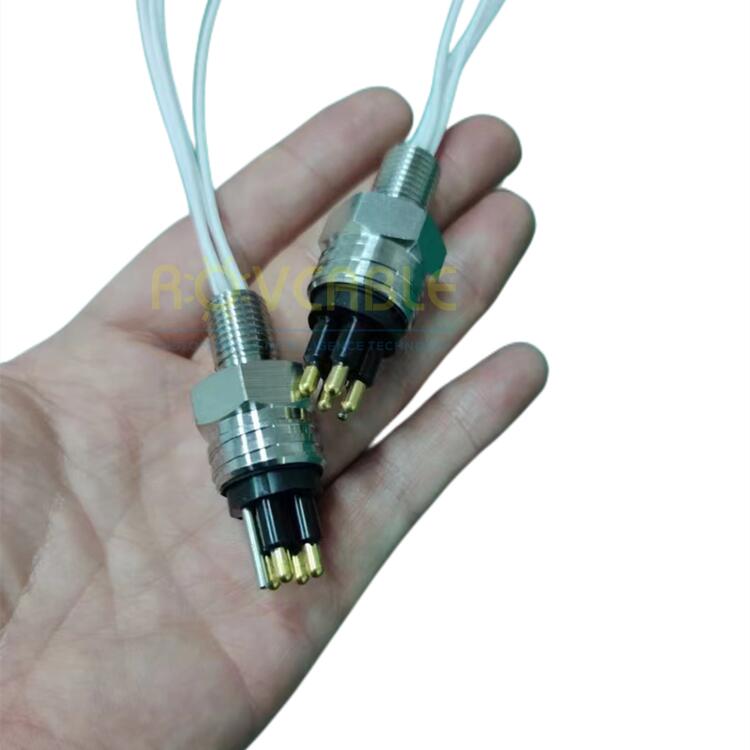

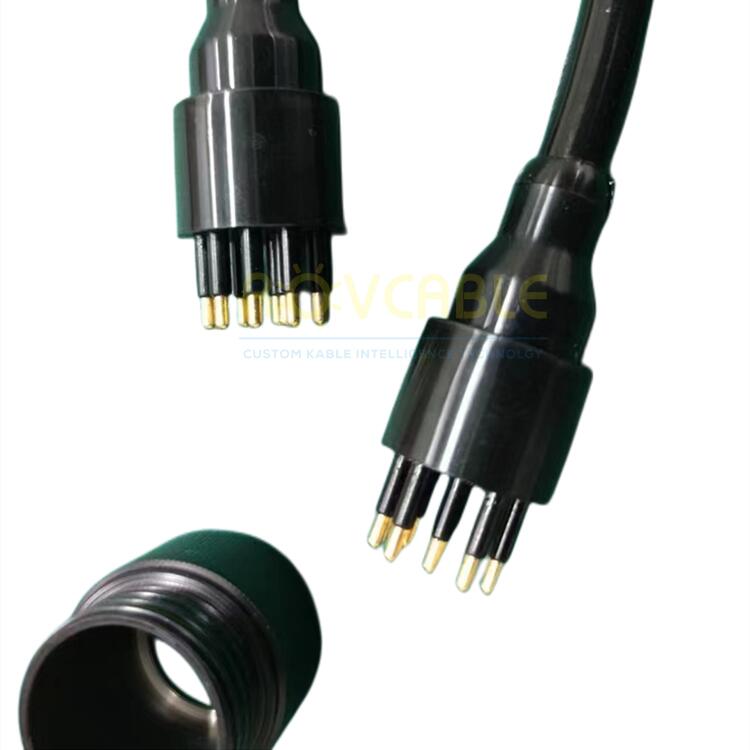

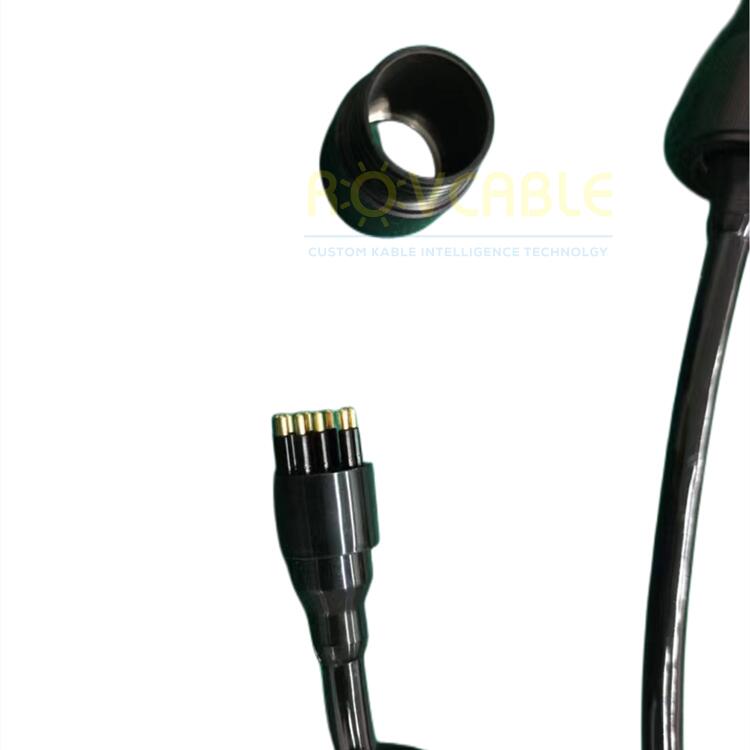

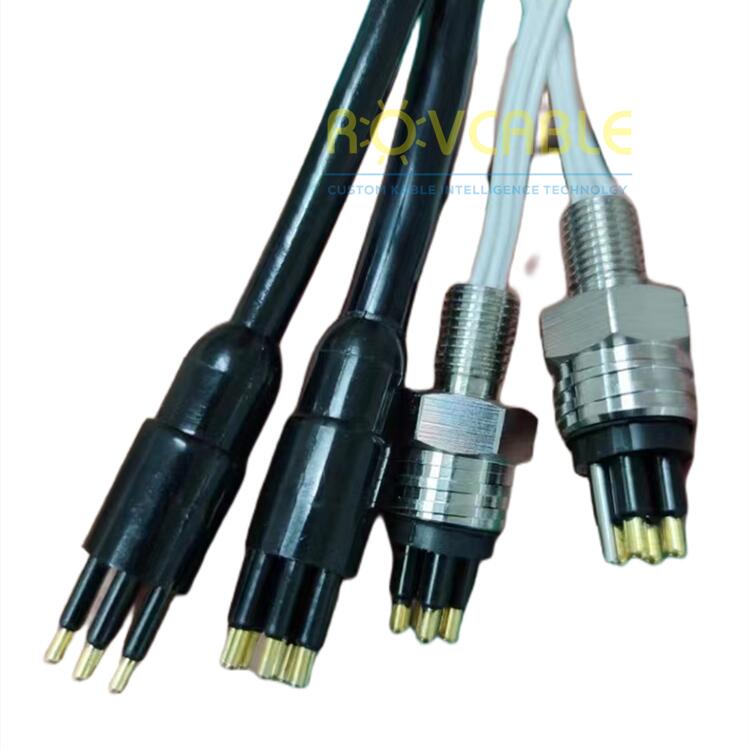

Shanghai Kabel Intelligence Technology Co., Ltd supplies the complete Micro Circular underwater connector platform -- MCBH (bulkhead) and MCIL (in-line) types -- in all standard contact counts from 2 to 21, plus right-angle (MCBHRA), stainless steel, and titanium shell variants. This is the most widely deployed subsea wet-mateable connector platform globally, used across ROV systems, AUVs, oceanographic instruments, and offshore oil and gas infrastructure.

All connectors are rated to 7,000 m depth, IP68 sealed, PEEK insulated, and directly compatible with SubConn® MCBH/MCIL series connectors.

Full Product Range Overview

Technical Specifications (All Models)

• Contact counts: 2, 3, 4, 5, 6, 8, 10, 12, 16, 21
• Depth rating: 7,000 m (700 bar hydrostatic)
• IP rating: IP68 (IP69K option for select models)
• Voltage rating: 600 V AC/DC per contact
• Current rating: Up to 10 A per contact (5 A for 21-contact)
• Shell material: Hard-anodized aluminium (standard) / Stainless steel 316 / Titanium Grade 5
• Insulator: PEEK
• Contact material: Gold-plated copper alloy
• Sealing: Dual O-ring per contact + face seal
• Hydrostatic test: 600 psig per unit, signed certificate
• Mating cycles: 500+
• Operating temperature: -20 to +85 degC
• Compatibility: SubConn MCBH / MCIL all contact counts

Selection Guide

• 2-contact: Single-circuit DC power or analog sensor
• 3-contact: Power + RS-485 or single-phase AC
• 4-contact: Power + dual RS-485 bus or 2 analog channels
• 5-contact: Thruster motor (3-phase) + feedback + ground
• 6-contact: Camera/lighting combo or dual-bus sensor
• 8-contact: Complex sensor or camera + all signal channels
• 10-12 contact: High channel count instrument or combined umbilical
• 16-21 contact: Maximum density -- multi-bus, multi-power, multi-analog

Applications

• Work-class and observation ROV systems
• AUV payload and navigation interfaces
• Oceanographic sensor arrays (CTD, ADCP, DO)
• Offshore oil and gas subsea control modules
• Tidal energy and offshore wind monitoring
• Commercial diving equipment panels
• Deep-sea research landers and moorings

For quotation and technical support:
Email: sales@rovcable.com
Website: www.rovconnector.com | www.rovcable.com
Address: No.100 Yezhuang Road, Fengxian District, Shanghai, China 201415

Frequently Asked Questions

Are all Shanghai Kabel Micro Circular connectors SubConn compatible?

Yes. All MCBH and MCIL models are manufactured to SubConn-compatible face geometry and thread dimensions for every contact count.

How do I choose between aluminium, stainless steel, and titanium shells?

Aluminium is lightest and most cost-effective for standard deployments. Stainless steel (316) suits long-term or tropical deployments. Titanium suits high-performance ROV frames where weight is critical and galvanic compatibility with carbon fibre is required.

Do you supply complete cable assemblies?

Yes. Specify cable OD, length, conductor spec, and connector models. Factory-tested assemblies with pressure test certificate available for all contact counts.

Applications

• ROV and AUV underwater vehicle systems requiring compact, reliable connectivity
• Subsea sensor instrumentation, oceanographic data acquisition platforms
• Underwater camera, video and LED lighting systems at varying depths
• Ocean bottom seismic systems and marine renewable energy installations
• Naval systems, diving equipment and offshore infrastructure monitoring

Customization Options

• Custom cable harness lengths, wire terminations and direct moulding services
• Alternative connector body materials: anodized aluminum, SS316, or titanium
• Certified hydrostatic pressure testing to customer-specified ocean depths
• Custom bulkhead thread lengths, O-ring configurations and locking sleeve options
