Shanghai Kabel Intelligence Technology Co., Ltd 4-contact right-angle micro circular connectors MCBHRA4M/MCIL4F. IP68, 7000m, 90-degree body. SubConn MCBHRA4 compatible. For space-constrained ROV panel installations.
Shanghai Kabel Intelligence Technology Co., Ltd supplies 4-contact right-angle micro circular underwater connectors including MCBHRA4M (right-angle bulkhead male, 10 A) and MCIL4F (in-line female). The 4-contact right-angle configuration is favoured in ROV and AUV chassis where a 90-degree cable exit is required and where 4 conductors -- typically 2 power + 2 signal -- are sufficient for the application.
Rated to 7,000 m depth, IP68, SubConn® MCBHRA4/MCIL4 compatible.
| Part Number | Type | Gender | Notes |
|---|---|---|---|
| MCBH4M | Straight Bulkhead | Male (pins) | Standard |
| MCBH4F | Straight Bulkhead | Female (sockets) | Standard |
| MCIL4M | In-Line | Male (pins) | Standard |
| MCIL4F | In-Line | Female (sockets) | Standard |

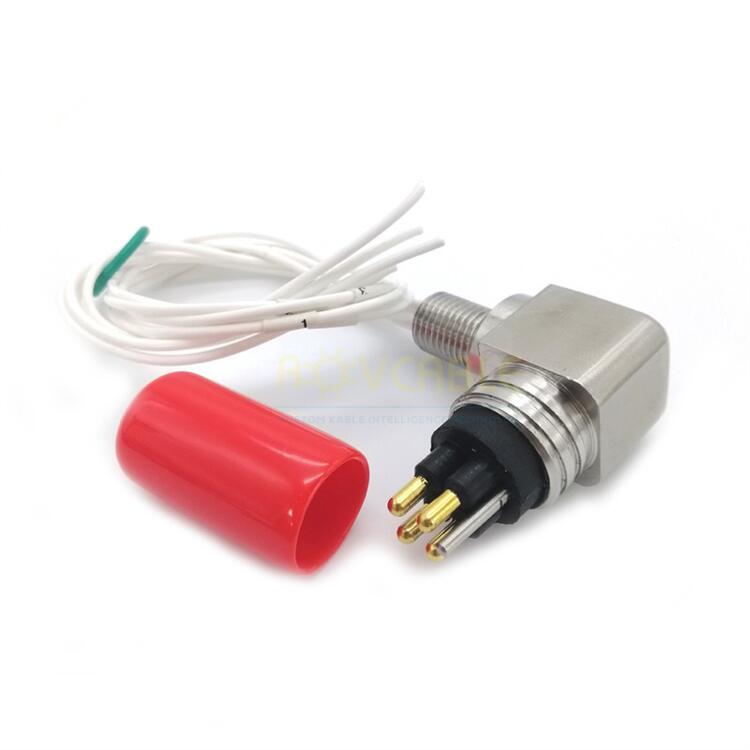

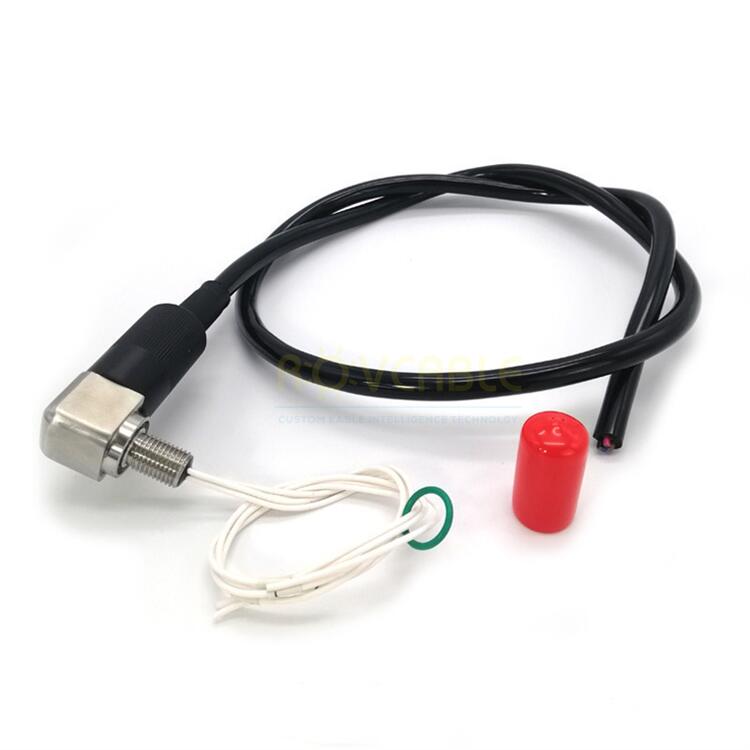

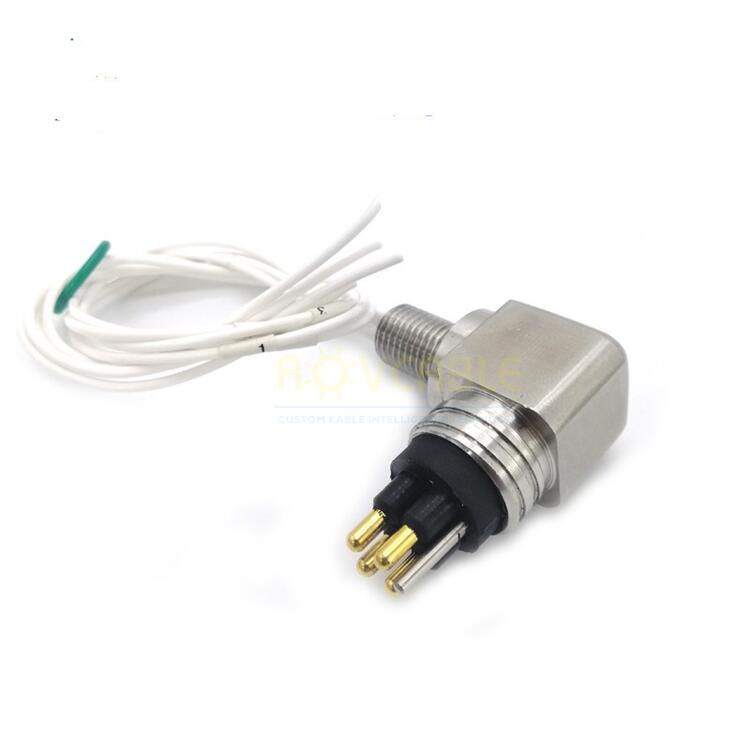

| MCBHRA4M | Right-Angle Bulkhead | Male (pins) | 90-degree, 10 A/contact |
| MCBHRA4F | Right-Angle Bulkhead | Female (sockets) | 90-degree |
| MCDC4F | Dummy Cap | -- | Protective |
For quotation and technical support:
Email: sales@rovcable.com
Website: www.rovconnector.com | www.rovcable.com
Address: No.100 Yezhuang Road, Fengxian District, Shanghai, China 201415

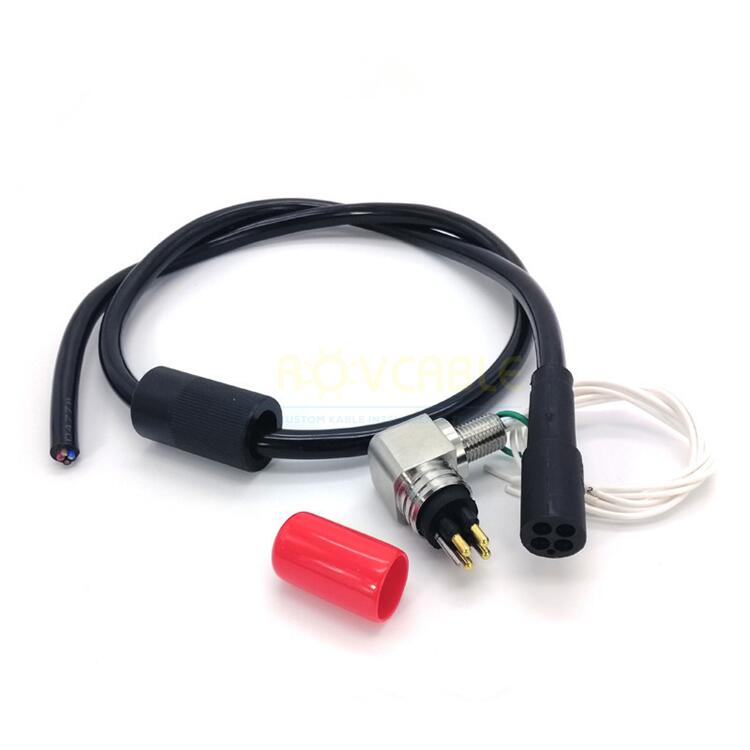

Yes. The right-angle MCBHRA4M bulkhead uses the same contact face as the straight MCBH4M, so standard MCIL4F in-line connectors mate with it directly.
Yes. SubConn MCIL4F mates directly with Shanghai Kabel MCBHRA4M -- no modification needed.
Right-angle reduces the depth footprint behind the panel wall. Use MCBHRA when the housing internal depth is less than the straight MCBH cable clearance requires, or when cables must exit parallel to the panel for routing reasons.
