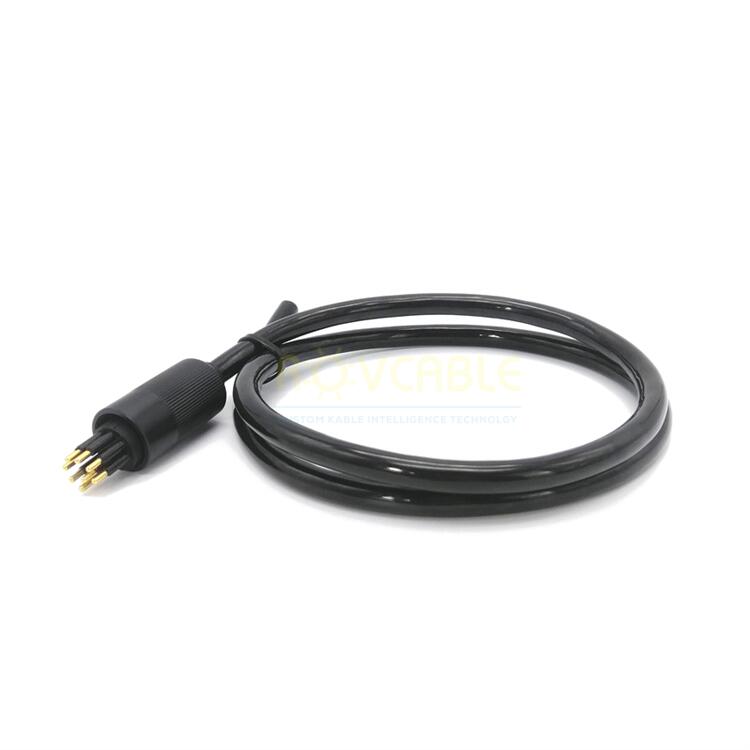

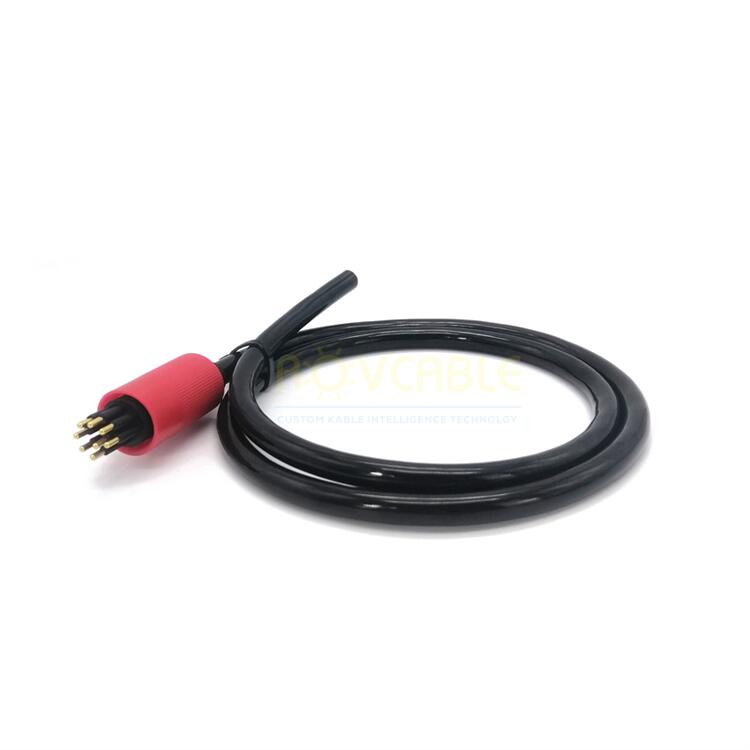

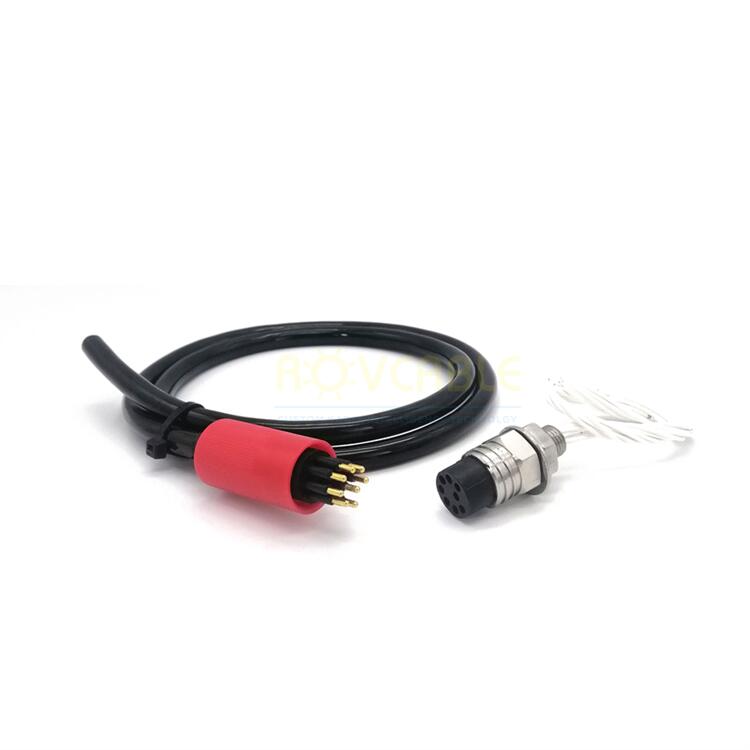

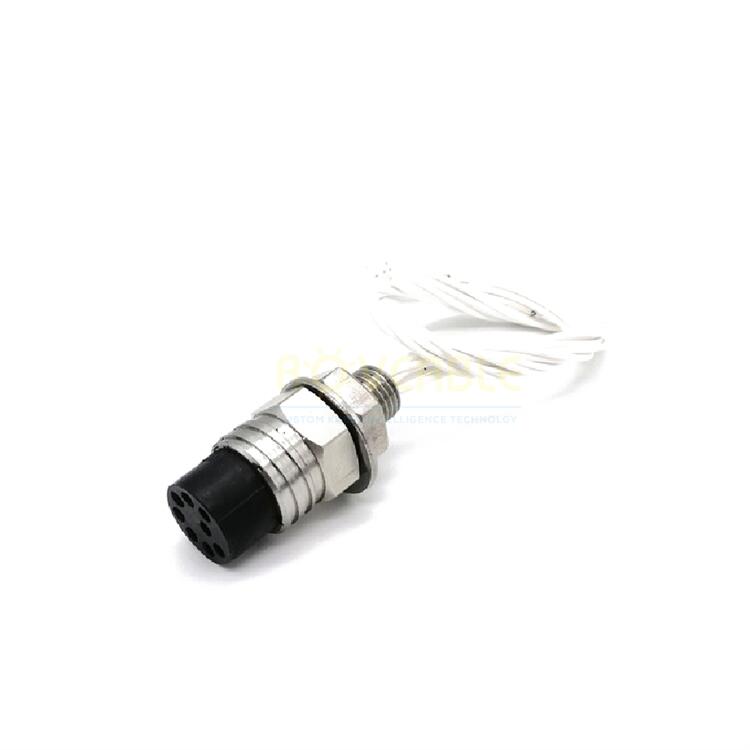

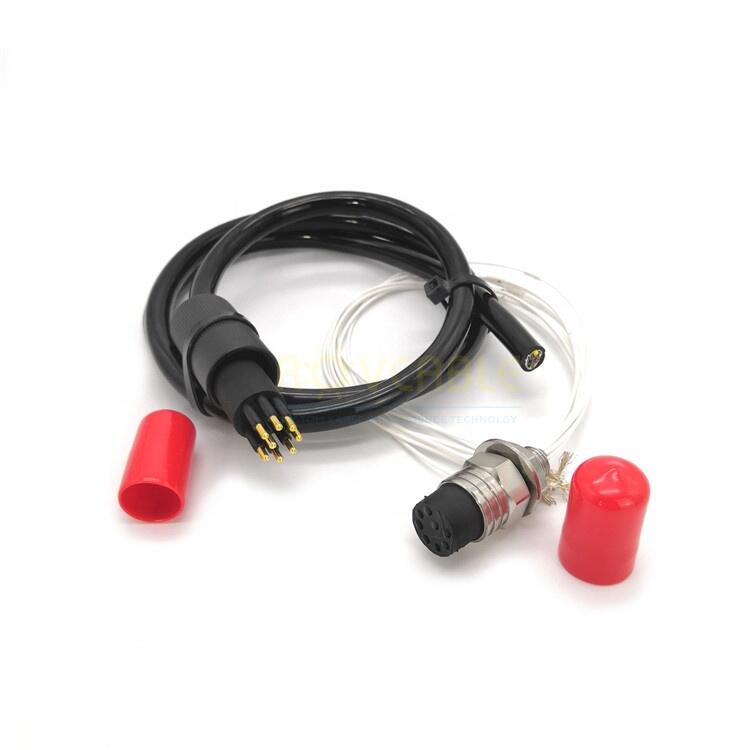

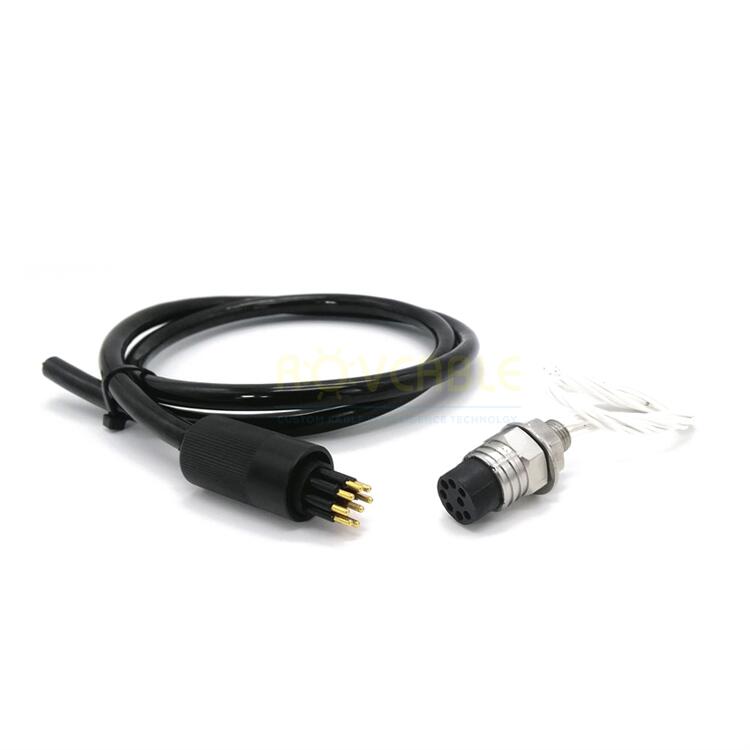

8 Pin Micro Circular Underwater Connector -- MCBH8F & MCIL8M | IP68 | 7000m | SubConn Compatible
Shanghai Kabel Intelligence Technology Co., Ltd supplies 8-contact micro circular wet-mateable underwater connectors including MCBH8F (bulkhead female) and MCIL8M (in-line male) -- the most widely used high-contact-count configuration in the standard Micro Circular platform. 8 contacts provide the maximum conductor count in a compact Micro Circular housing before stepping up to the larger 10/12/16-contact series.
Rated to 7,000 m depth, IP68, SubConn® MCBH8/MCIL8 compatible.
Available Models -- 8 Contact
|
Part Number
|
Type
|
Gender
|
Notes
|
|
MCBH8M
|
Bulkhead
|
Male (pins)
|
Standard
|
|
MCBH8F
|
Bulkhead
|
Female (sockets)
|
Standard
|
|
MCIL8M
|
In-Line
|
Male (pins)
|
Standard
|
|
MCIL8F
|
In-Line
|
Female (sockets)
|
Standard
|
|
MCBHRA8M
|
Right-Angle Bulkhead
|
Male (pins)
|
90-degree body
|
|
MCBHRA8F
|
Right-Angle Bulkhead
|
Female (sockets)
|
90-degree body
|
|
MCDC8F
|
Dummy Cap
|
--
|
Protects MCBH8M
|
Technical Specifications
-
Contact count: 8
-
Mount types: Bulkhead, In-Line, Right-Angle Bulkhead
-
Depth rating: 7,000 m
-
IP rating: IP68
-
Voltage: 600 V AC/DC
-
Current per contact: 10 A
-
Shell: Hard-anodized aluminium / Titanium / Stainless steel option
-
Insulator: PEEK
-
Contacts: Gold-plated copper alloy
-
Sealing: Dual O-ring per contact + face seal
-
Hydrostatic test: 600 psig, certificate included
-
Mating cycles: 500+
-
Compatibility: SubConn MCBH8 / MCIL8
Typical 8-Pin Wiring Allocations
-
ROV camera assembly: 2 power + 4 video differential (HDMI equiv.) + 1 trigger + 1 ground
-
Combined sensor: 2 power, 2 RS-485, 2 RS-232, 1 analog, 1 ground
-
Thruster with telemetry: 3-phase motor (3 contacts) + PWM feedback + temperature + fault + power + ground
-
Sonar head: 2 power + 4 transmit/receive differential + 2 sync/trigger
Applications
-
ROV main camera and lighting combined assemblies
-
Subsea sonar transducer head connectors
-
Multi-parameter oceanographic sensor packages
-
AUV navigation and payload interface connectors
-
Offshore subsea instrument junction boxes
-
Underwater acoustic Doppler current profilers (ADCP)
For quotation and technical support:
Email: sales@rovcable.com
Website: www.rovconnector.com | www.rovcable.com
Address: No.100 Yezhuang Road, Fengxian District, Shanghai, China 201415
Frequently Asked Questions
Does MCBH8F mate with SubConn MCIL8M?
Yes. Shanghai Kabel MCBH8F mates directly with OEM SubConn MCIL8M -- identical contact geometry and thread dimensions.
When should I choose 8-contact vs 10-contact?
8-contact fits within the standard compact Micro Circular housing. If you need more conductors and can accept a slightly larger housing, the 10-contact or 12-contact variants are available. 8 contacts is typically the sweet spot for camera, lighting, and dual-bus sensor assemblies.
Is a right-angle 8-contact connector available?
Yes. MCBHRA8M and MCBHRA8F are available for space-constrained panel installations.
Applications
-
ROV and AUV underwater vehicle systems requiring compact, reliable connectivity
-
Subsea sensor instrumentation, oceanographic data acquisition platforms
-
Underwater camera, video and LED lighting systems at varying depths
-
Ocean bottom seismic systems and marine renewable energy installations
-
Naval systems, diving equipment and offshore infrastructure monitoring
Customization Options
-
Custom cable harness lengths, wire terminations and direct moulding services
-
Alternative connector body materials: anodized aluminum, SS316, or titanium
-
Certified hydrostatic pressure testing to customer-specified ocean depths
-
Custom bulkhead thread lengths, O-ring configurations and locking sleeve options
