6 Pin Micro Circular Underwater Connector -- MCIL6F & MCBH6M | IP69K | ROV Subsea

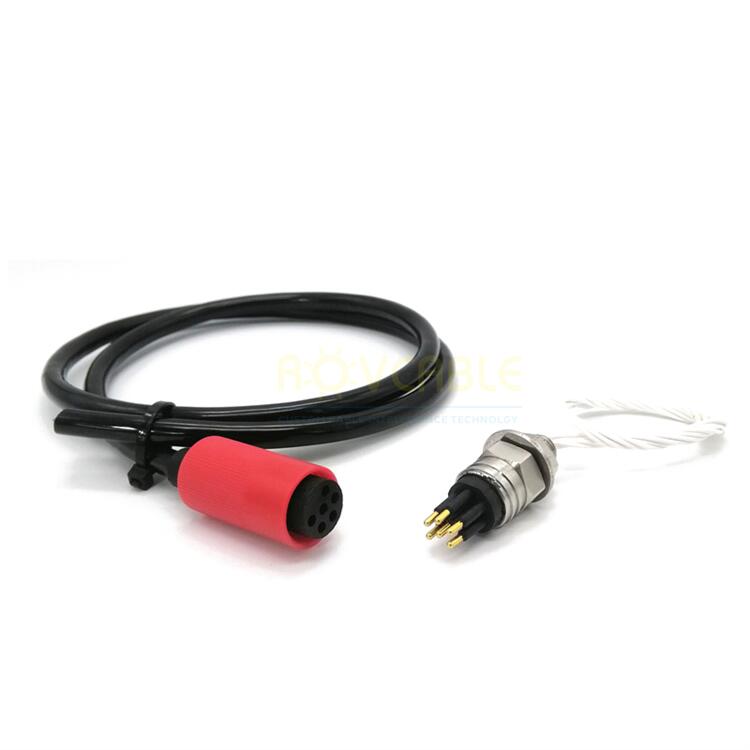

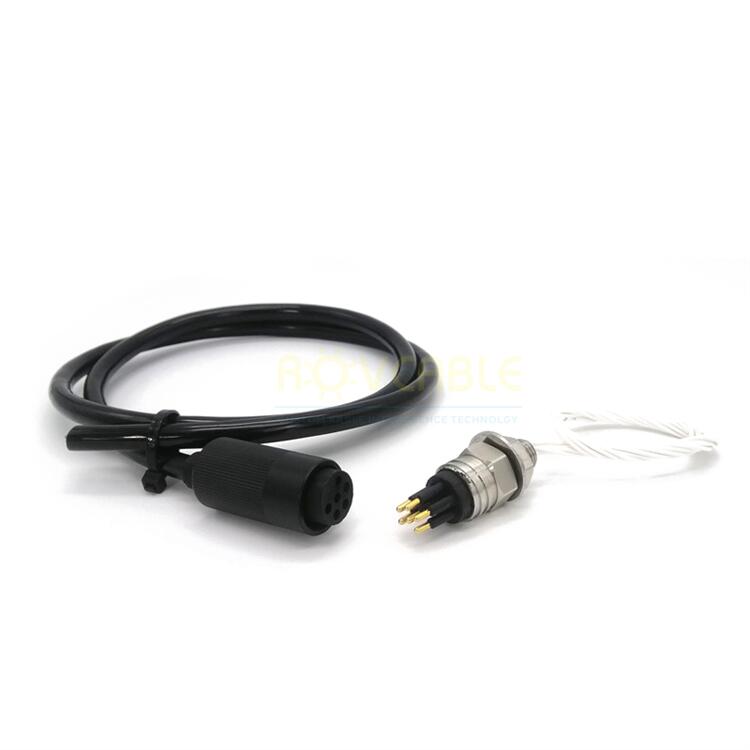

Shanghai Kabel Intelligence Technology Co., Ltd supplies 6-contact micro circular wet-pluggable underwater connectors including MCIL6F (in-line female) and MCBH6M (bulkhead male). The 6-contact configuration is one of the most versatile in the Micro Circular platform -- widely used for combined power and data across all major ROV systems. Available with IP68 and IP69K ratings. Rated to 7,000 m depth.
Available Models -- 6 Contact
|
Part Number
|
Type
|
Gender
|
IP Rating
|
|
MCBH6M
|
Bulkhead
|
Male (pins)
|
IP68 / IP69K
|
|
MCBH6F
|
Bulkhead
|
Female (sockets)
|
IP68 / IP69K
|
|
MCIL6M
|
In-Line
|
Male (pins)
|
IP68 / IP69K
|
|

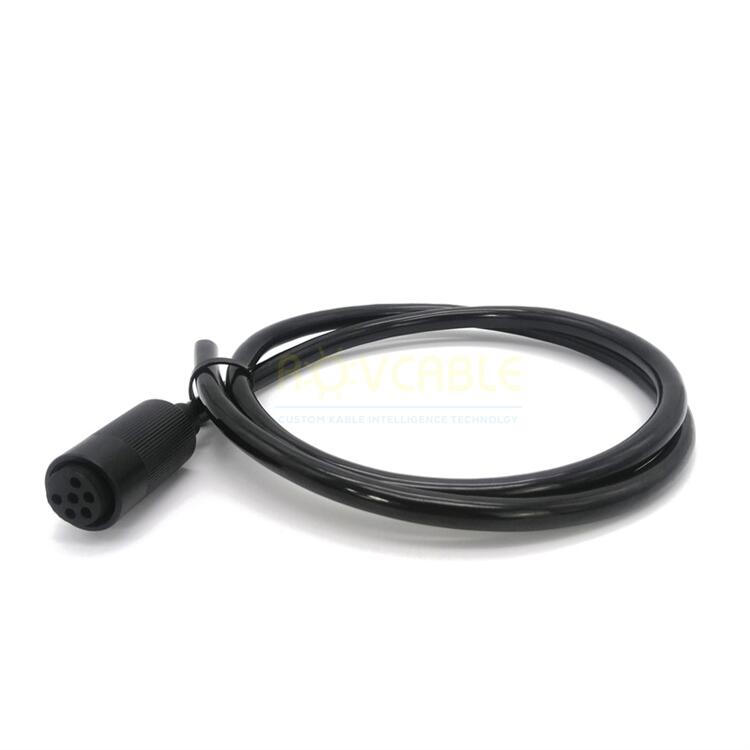

MCIL6F
|
In-Line
|
Female (sockets)
|
IP68 / IP69K
|
|
MCBHRA6M
|
Right-Angle Bulkhead
|
Male (pins)
|
IP68
|
|
MCDC6F
|
Dummy Cap
|
--
|
IP68
|
Technical Specifications
-
Contact count: 6
-
Mount types: Bulkhead (MCBH6), In-Line (MCIL6), Right-Angle (MCBHRA6)
-
Depth rating: 7,000 m
-
IP rating: IP68 standard / IP69K option
-
Voltage: 600 V AC/DC
-
Current per contact: 10 A
-
Shell: Hard-anodized aluminium / Stainless steel / Titanium
-
Insulator: PEEK
-
Contacts: Gold-plated copper alloy
-
Sealing: Dual O-ring per contact + face seal
-
Hydrostatic test: 600 psig, certificate included
-
Compatibility: SubConn MCBH6 / MCIL6 series
Typical 6-Pin Wiring Allocations
-
Camera + power: 2 power + 2 video + 1 trigger + 1 ground
-
Sensor interface: 2 power, 2 RS-485, 1 analog, 1 ground
-
Small thruster: 3-phase motor (3 contacts) + 3 signal/ground
Applications
-
ROV observation camera connectors
-
Subsea sonar head power and data connectors
-
Underwater LED lighting assemblies
-
AUV navigation sensor interfaces
-
Oceanographic mooring instrument connectors
-
Offshore oil and gas subsea sensor connectors
For quotation and technical support:
Email: sales@rovcable.com
Website: www.rovconnector.com | www.rovcable.com
Address: No.100 Yezhuang Road, Fengxian District, Shanghai, China 201415
Frequently Asked Questions
Is MCIL6F compatible with SubConn MCBH6M?
Yes. Shanghai Kabel MCIL6F mates directly with OEM SubConn MCBH6M -- identical contact geometry and thread dimensions.
What is the difference between IP68 and IP69K for this connector?
IP68 covers continuous underwater submersion to 7,000 m. IP69K additionally certifies the connector to withstand 80 degC high-pressure water jets at 100 bar -- required for equipment subject to topside pressure washing. Both ratings are available; specify when ordering.
Is a stainless steel 6-pin connector available?
Yes. Stainless steel shell (316) variants are available for MCBH6M and MCBH6F. Lead time 2-3 weeks.
Applications
-
ROV and AUV underwater vehicle systems requiring compact, reliable connectivity
-
Subsea sensor instrumentation, oceanographic data acquisition platforms
-
Underwater camera, video and LED lighting systems at varying depths
-
Ocean bottom seismic systems and marine renewable energy installations
-
Naval systems, diving equipment and offshore infrastructure monitoring
Customization Options
-
Custom cable harness lengths, wire terminations and direct moulding services
-
Alternative connector body materials: anodized aluminum, SS316, or titanium
-
Certified hydrostatic pressure testing to customer-specified ocean depths
-
Custom bulkhead thread lengths, O-ring configurations and locking sleeve options
