Super Miniature Underwater Connectors -- Micro Circular Sub-Miniature Series | IP68 | ROV AUV Sensors
Shanghai Kabel Intelligence Technology Co., Ltd supplies super miniature (sub-miniature) underwater connectors for applications where the standard Micro Circular connector diameter is too large. These ultra-compact wet-mateable connectors are designed for micro-ROV, micro-AUV, miniature oceanographic sensors, and compact scientific instruments operating in space-constrained underwater environments.
Rated to 7,000 m depth, IP68 sealed, with PEEK insulation and gold-plated contacts. SubConn Micro Series compatible.
Sub-Miniature vs Standard Micro Circular -- Size Comparison
|
Feature
|
Standard Micro Circular
|
Super Miniature
|
|

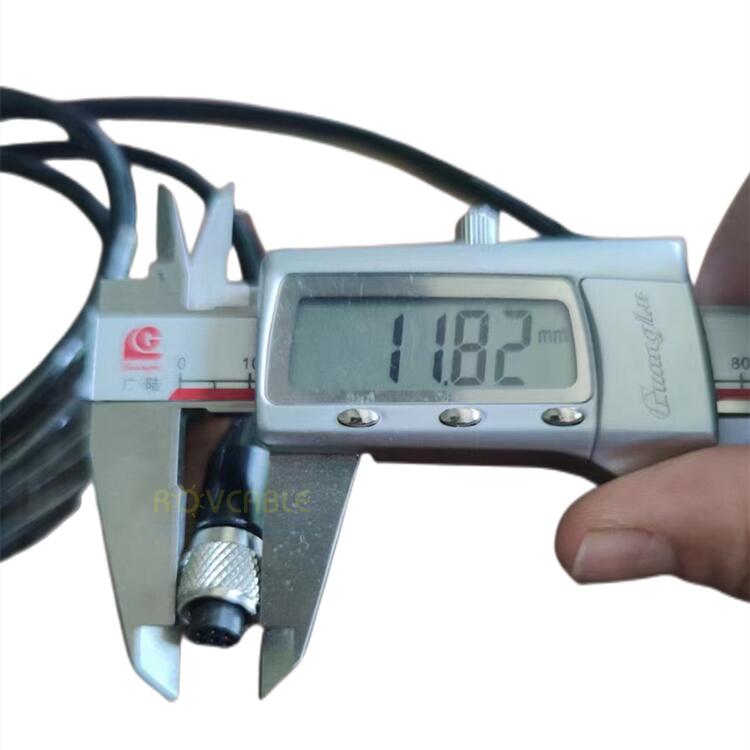

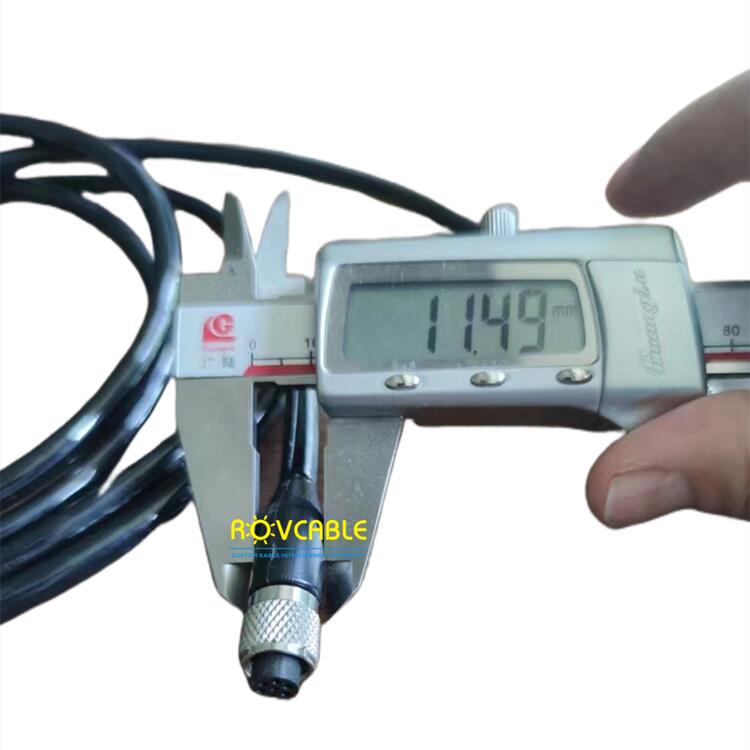

Housing outer diameter
|
~25-35 mm (contact dependent)
|
~12-18 mm
|
|
Contact counts
|
2-21
|
2-6 (typical)
|
|
Current per contact
|
10 A
|
3-5 A (reduced)
|
|
Weight
|
Standard
|
30-50% lighter
|
|
Depth rating
|
7,000 m
|
7,000 m
|
|
IP rating
|
IP68
|
IP68
|

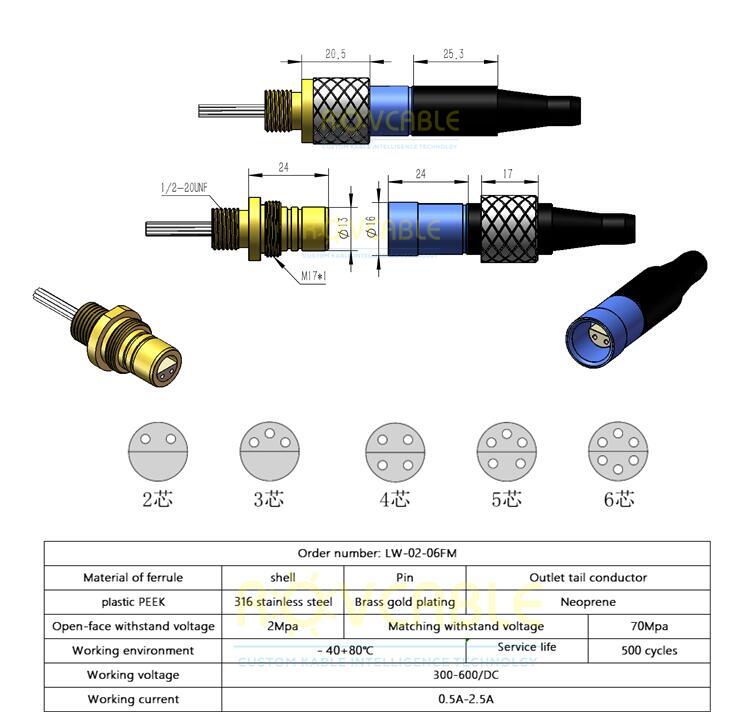

Technical Specifications
-
Series: Super Miniature / Sub-Miniature Micro Circular
-
Contact counts: 2, 3, 4, 5, 6 (contact us for other counts)
-
Depth rating: 7,000 m
-
IP rating: IP68
-
Voltage: 300 V AC/DC
-
Current per contact: 3-5 A (application dependent)
-
Shell: Titanium or hard-anodized aluminium
-
Insulator: PEEK
-
Contacts: Gold-plated copper alloy
-
Sealing: Dual O-ring + face seal
-
Hydrostatic test: 600 psig, certificate supplied
Where Super Miniature Connectors Are Required
-
Micro-ROV systems: Sub-150 mm diameter vehicles where each gram and millimetre counts
-
Miniature AUVs: Torpedo-body vehicles with 50-100 mm diameter pressure housings
-
Compact oceanographic floats: Profiling floats (Argo type) and wave gliders
-
Scientific instrument microsystems: Micro-CTD, micro-DO, and miniature pH sensors
-
Underwater drones: Consumer and prosumer underwater camera drones
Applications
-
Micro-ROV thruster and camera connectors
-
Miniature AUV payload interface
-
Compact oceanographic profiling floats
-
Underwater scientific microsensor packages
-
Miniature underwater lighting fixtures
-
Marine biology research instruments
For quotation and technical support:
Email: sales@rovcable.com
Website: www.rovconnector.com | www.rovcable.com
Address: No.100 Yezhuang Road, Fengxian District, Shanghai, China 201415
Frequently Asked Questions
Are super miniature connectors compatible with standard MCBH/MCIL?
No. Super miniature connectors use a smaller contact and thread standard and do not mate with the standard Micro Circular (MCBH/MCIL) series. They are compatible with SubConn Micro Series connectors of the same contact count.
What is the minimum cable OD I can use with super miniature connectors?
Super miniature connectors typically accommodate cable ODs from 2.5 mm to 6 mm depending on the back-shell type. Contact our technical team with your cable specification for confirmation.
Can I get custom contact counts?
Contact counts beyond the standard range (2-6) are available as custom orders. Lead time is typically 4-6 weeks. Contact sales@rovcable.com with your requirements.
Applications
-
ROV and AUV underwater vehicle systems requiring compact, reliable connectivity
-
Subsea sensor instrumentation, oceanographic data acquisition platforms
-
Underwater camera, video and LED lighting systems at varying depths
-
Ocean bottom seismic systems and marine renewable energy installations
-
Naval systems, diving equipment and offshore infrastructure monitoring
Customization Options
-
Custom cable harness lengths, wire terminations and direct moulding services
-
Alternative connector body materials: anodized aluminum, SS316, or titanium
-
Certified hydrostatic pressure testing to customer-specified ocean depths
-
Custom bulkhead thread lengths, O-ring configurations and locking sleeve options
