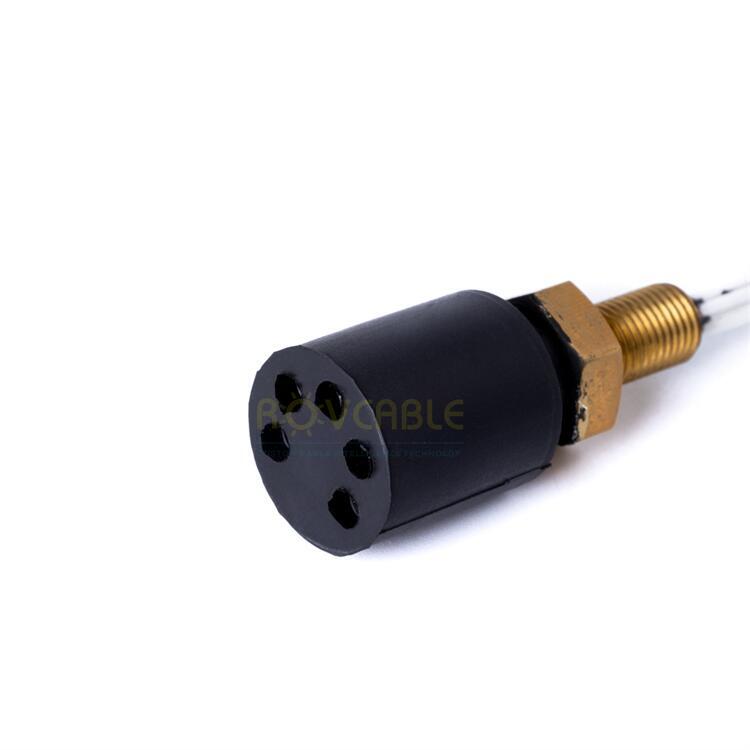

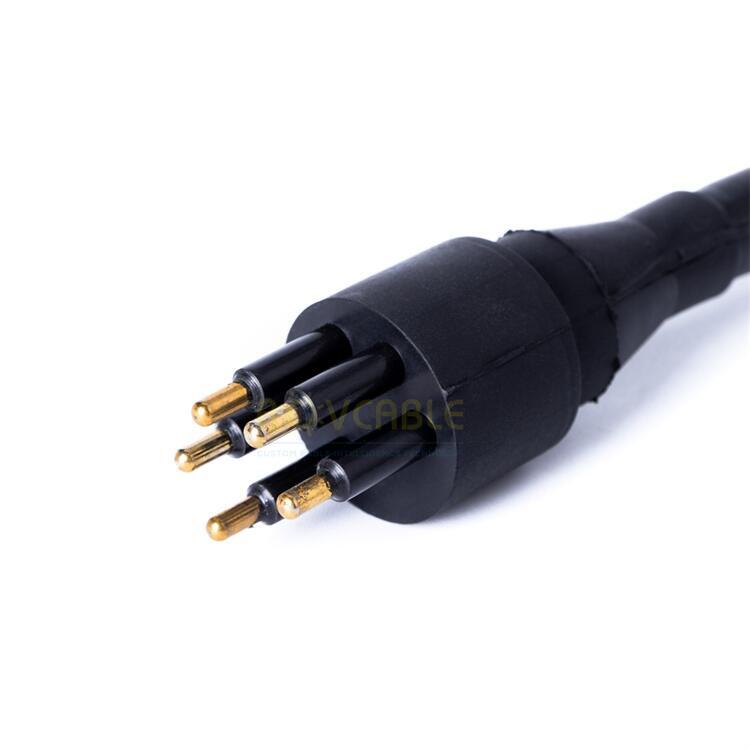

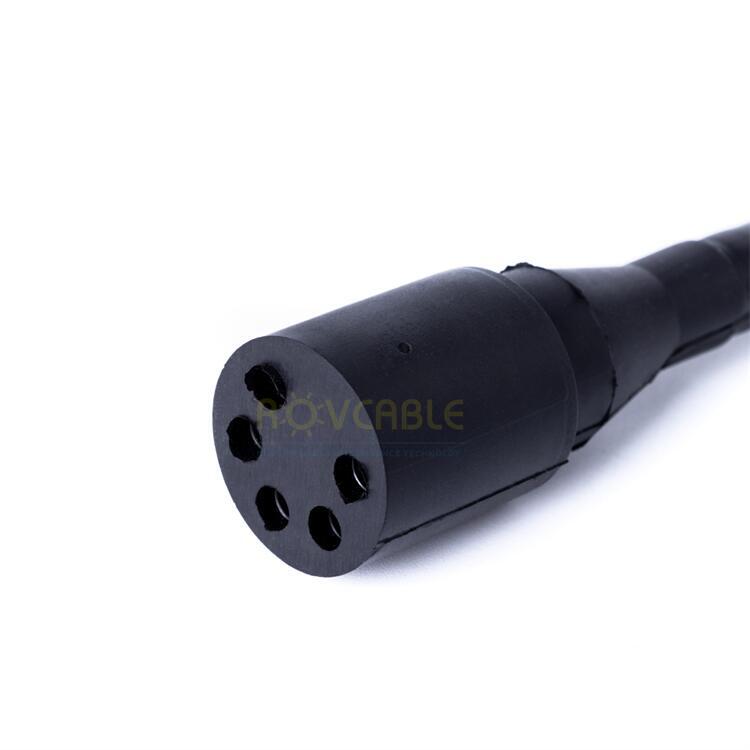

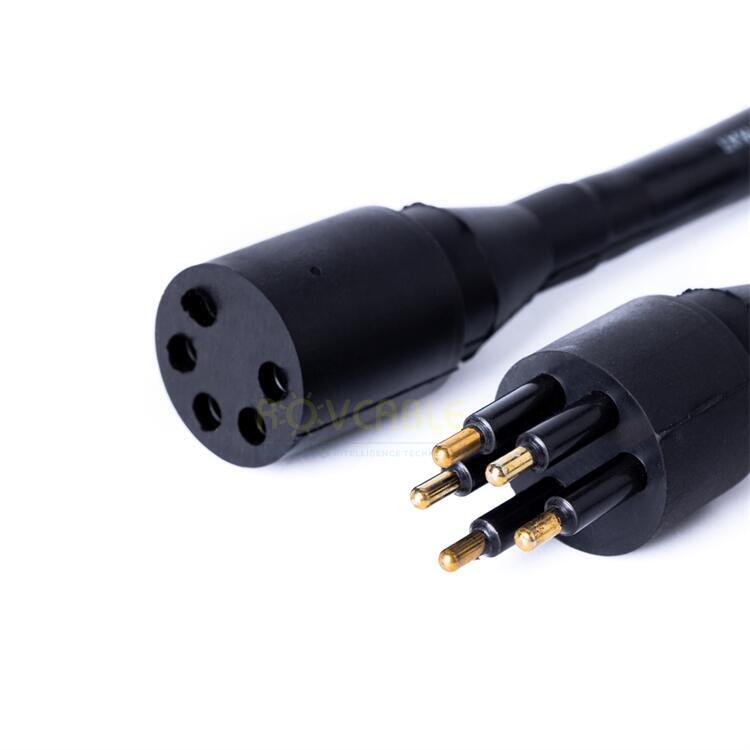

Shanghai Kabel Intelligence Technology Co., Ltd Circular Series 5-pin inline and bulkhead underwater connectors. IP68, 7000m, 20A per contact. Power plus data in one connector. SubConn Circular 5 compatible.
The 5-contact Circular Series from Shanghai Kabel Intelligence Technology Co., Ltd is the entry point for mixed power-and-data Circular connectors -- three or four contacts carry power at 20 A each while the remaining contacts carry a serial data bus or analog signal, eliminating the need for a separate signal connector. COBH5 and COIL5 deliver IP68 protection, 7,000 m depth rating, and direct SubConn Circular 5-contact interchangeability.
| Parameter | Value |
|---|---|
| Contact count | 5 |
| Available models | COBH5M, COBH5F, COIL5M, COIL5F |
| Depth rating | 7,000 m |
| IP rating | IP68 |
| Voltage | 600 V AC/DC |
| Current per contact | 20 A |
| Shell | Anodized aluminium / Titanium option |
| Insulator | PEEK |
| Compatibility | SubConn Circular 5-contact COBH/COIL |
Email: sales@rovcable.com | www.rovconnector.com
All 5 contacts are rated 20 A. However, for signal circuits carrying milliamp-level currents alongside 20 A power contacts, specify shielded cable and ensure the connector shell is grounded to minimise inductive coupling from the power contacts.
