Shanghai Kabel Intelligence Technology Co., Ltd Circular Series 6-pin inline and bulkhead underwater connectors. IP68, 7000m, 15A per contact. SubConn Circular 6-contact compatible.

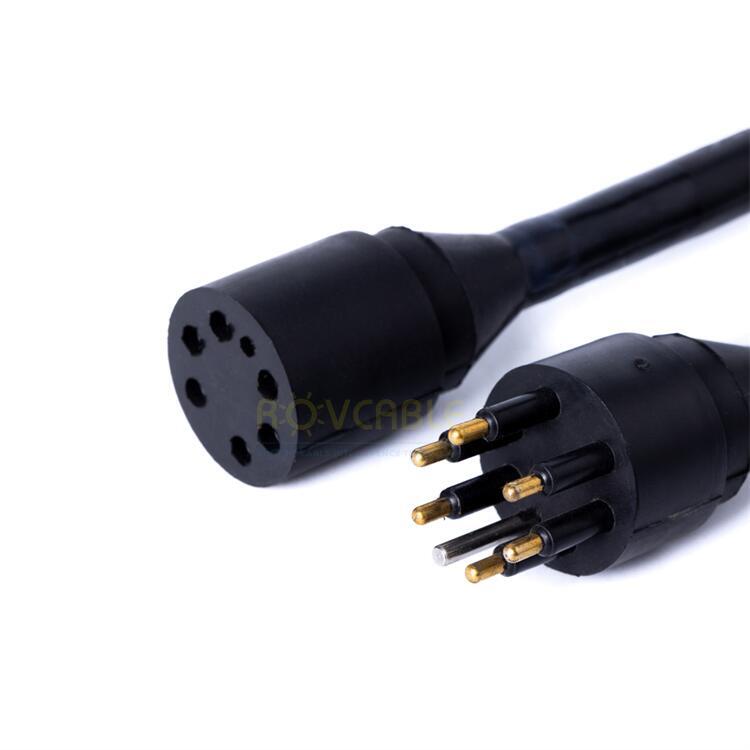

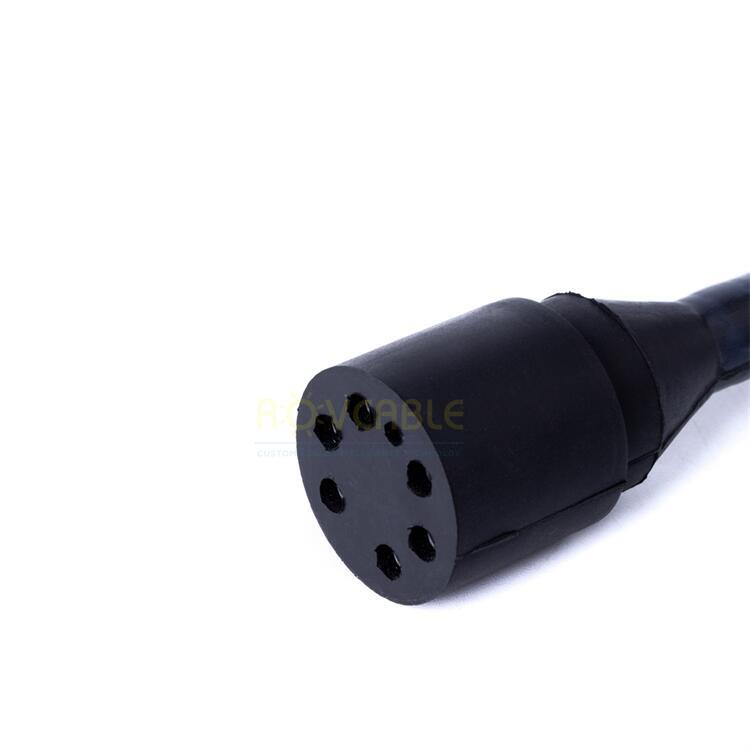

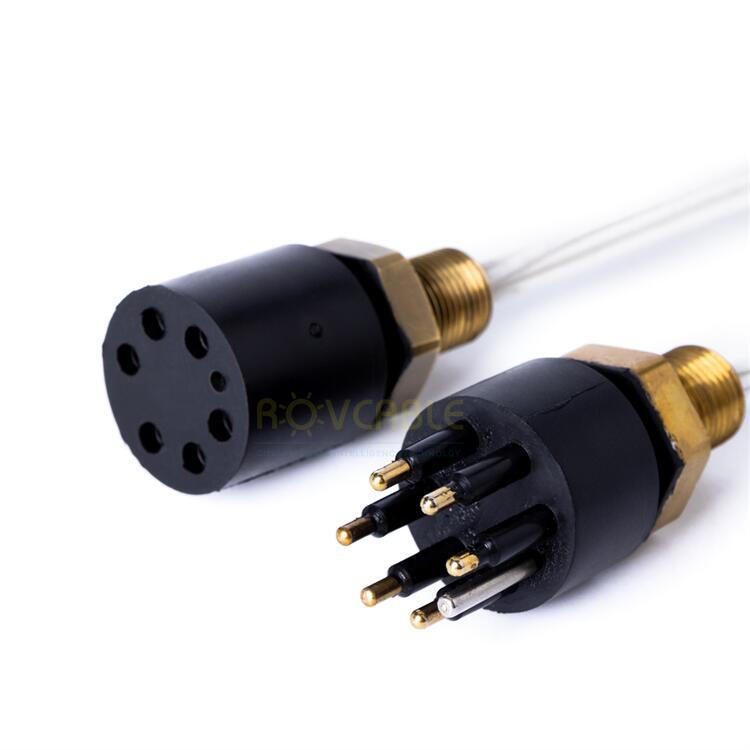

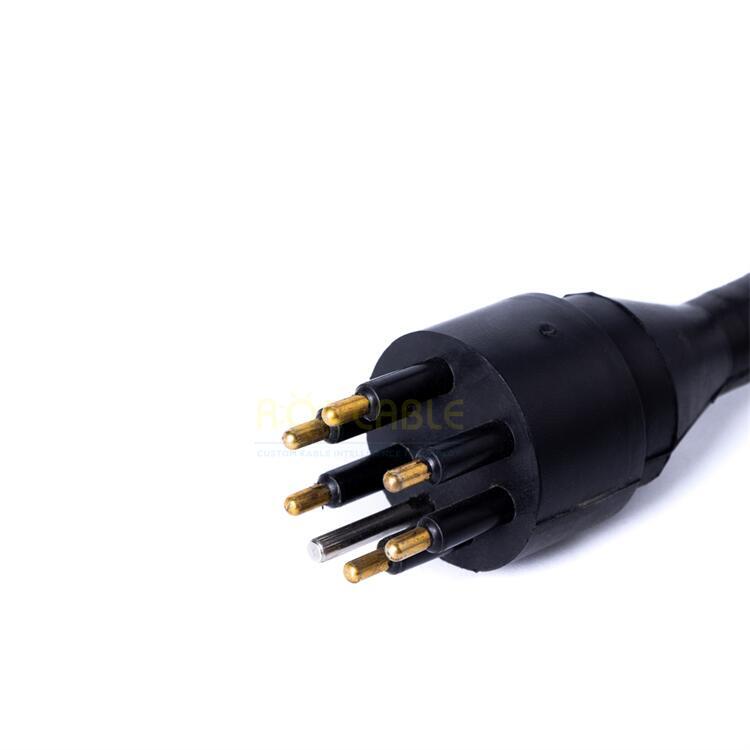

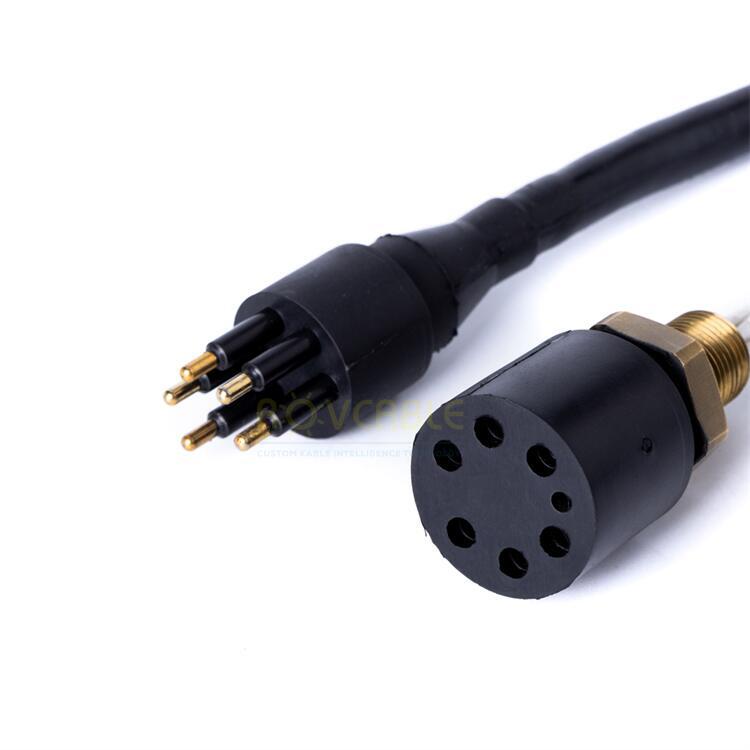

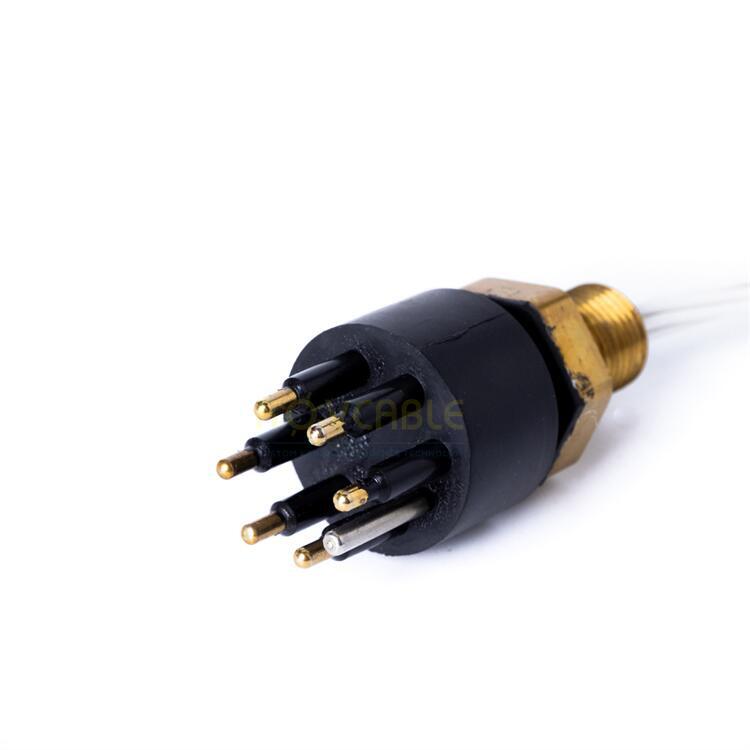

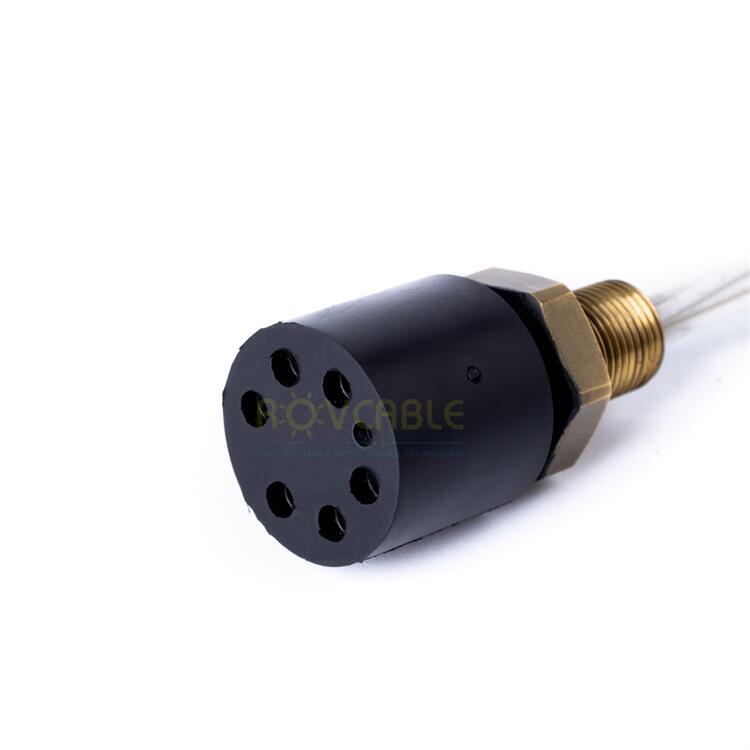

The 6-contact Circular Series from Shanghai Kabel Intelligence Technology Co., Ltd provides a balanced combination of current capacity and circuit count -- commonly deployed for systems needing 3-phase motor power plus two or three ancillary signal contacts in a single wet-mateable connector. COBH6 bulkhead and COIL6 inline connectors are IP68 sealed, 7,000 m rated, and SubConn Circular 6-contact compatible.
| Parameter | Value |
|---|---|
| Contact count | 6 |
| Available models | COBH6M, COBH6F, COIL6M, COIL6F |
| Depth rating | 7,000 m |
| IP rating | IP68 |
| Voltage | 600 V AC/DC |
| Current per contact | 15 A |
| Shell | Anodized aluminium / Titanium option |
| Insulator | PEEK |
| Sealing | Dual O-ring + face seal, wet-mateable |
| Compatibility | SubConn Circular 6-contact COBH/COIL |
Email: sales@rovcable.com | www.rovconnector.com
Most ROV observation-class thrusters draw 5-12 A per phase at peak load, so 15 A provides a comfortable safety margin. For work-class thrusters drawing over 15 A per phase, consider our 2-pin or 4-pin 25 A Circular Series variants for dedicated per-phase circuits.
