Circular Series 8-Pin Underwater Connector -- Inline and Bulkhead

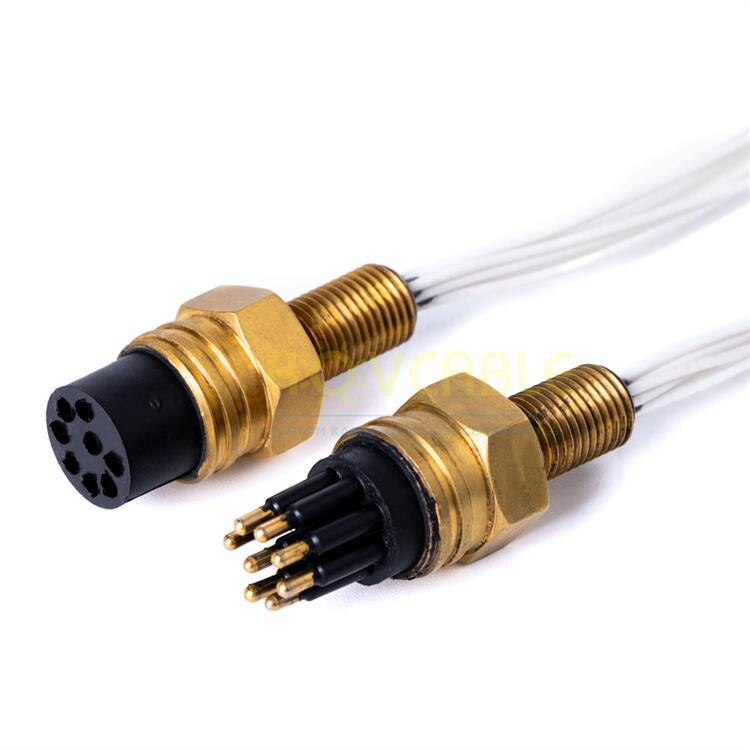

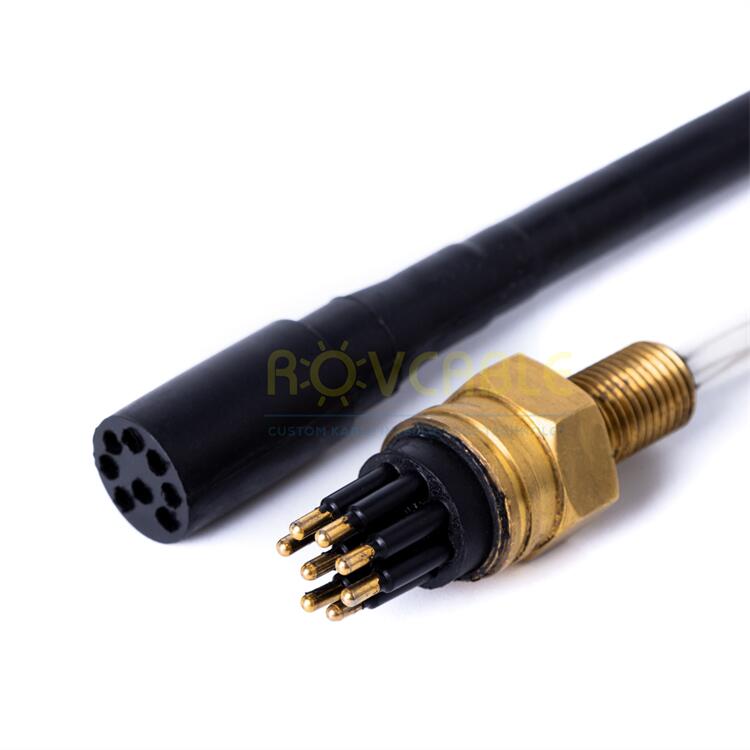

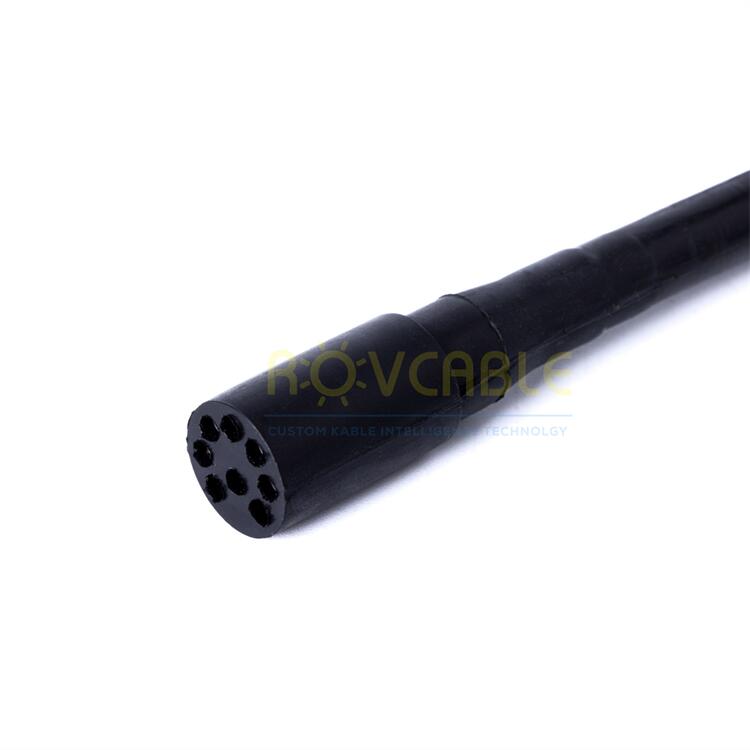

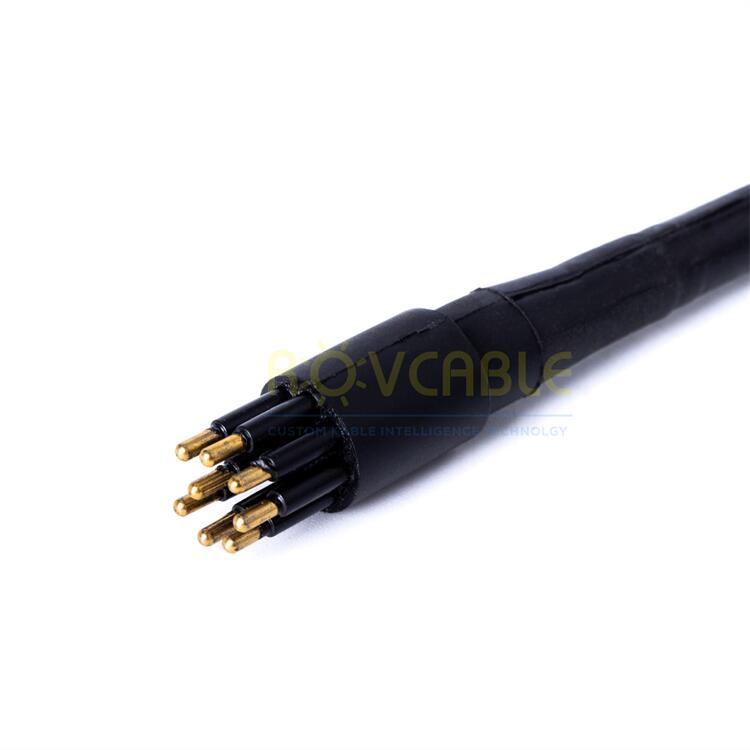

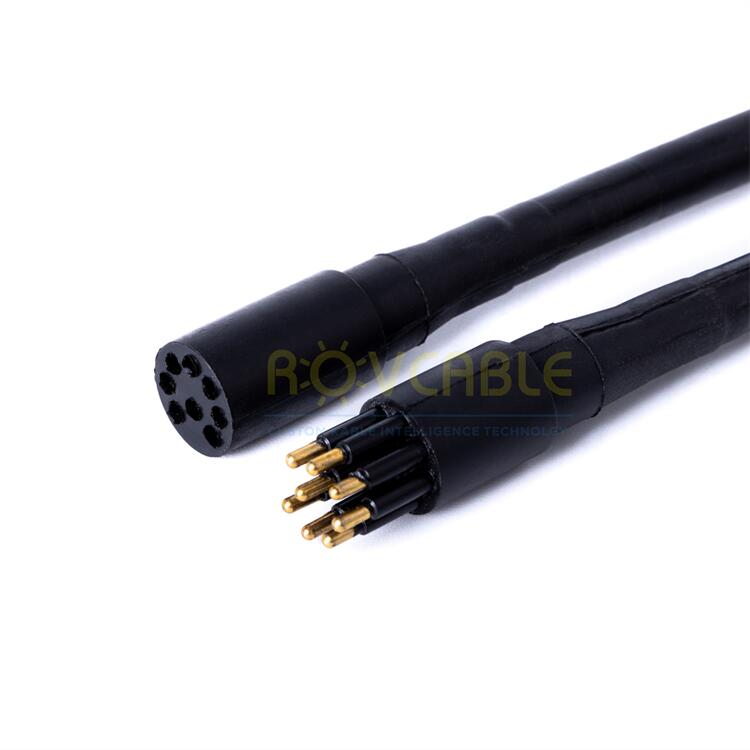

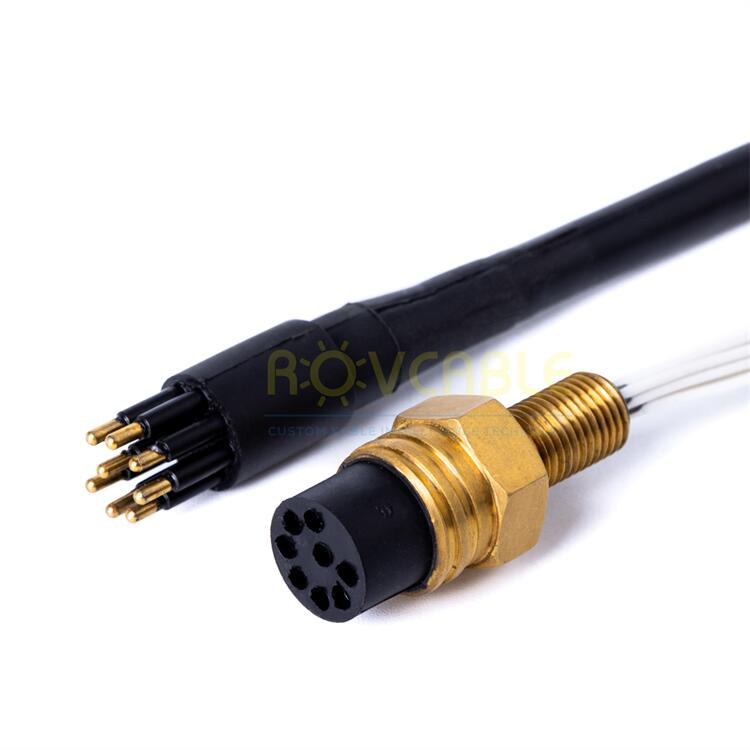

Shanghai Kabel Intelligence Technology Co., Ltd 8-contact Circular Series connectors (COBH8 bulkhead and COIL8 inline) are a versatile choice for ROV and AUV subsystems that need to combine power supply with multiple data channels in one wet-mateable connection. With 8 contacts at 15 A each and a 7,000 m depth rating, these connectors handle demanding mixed power-and-signal duties.

Specifications

Typical Pin Assignment (8-contact power+data)

• Contacts 1-2: 48 V DC power supply (+ and -)
• Contacts 3-4: RS-485 data bus (A and B)
• Contacts 5-6: Ethernet pair (TX+/TX-)
• Contacts 7-8: Ethernet pair (RX+/RX-) or auxiliary analog

Applications

• ROV camera and lighting head -- power + video signal + PTZ control
• Subsea sonar with power + multi-channel digital output
• AUV science payload with power + RS-232 + analog sensors
• Subsea DVL (Doppler Velocity Log) interface connector

Email: sales@rovcable.com | www.rovconnector.com

Frequently Asked Questions

Does COBH8 mate with SubConn OEM COIL8?

Yes. Direct cross-brand mating -- identical mating face, thread, and contact geometry. Confirmed by our field test programme.

Can I order COBH8M and COIL8F as a matched pair?

Yes. We supply matched pairs including cable assembly with potted COIL8 for direct deployment. Specify cable OD, length, and conductor spec when ordering.

Applications

• ROV power and signal distribution systems requiring mixed-contact configurations
• Subsea control systems, offshore platform equipment and underwater instrumentation
• Marine renewable energy, oceanographic research and environmental monitoring
• Naval defense systems, sonar arrays and underwater communication networks
• Diving systems, underwater tools and remotely operated equipment connectivity

Customization Options

• Customised harness cables with direct moulding to selected polyurethane cables
• Customer-specified cable types, wire lead lengths and bulkhead thread dimensions
• Pressure-proof dummy connectors, locking sleeves and additional accessories
• Certified pressure testing to specific ocean depths with full documentation
