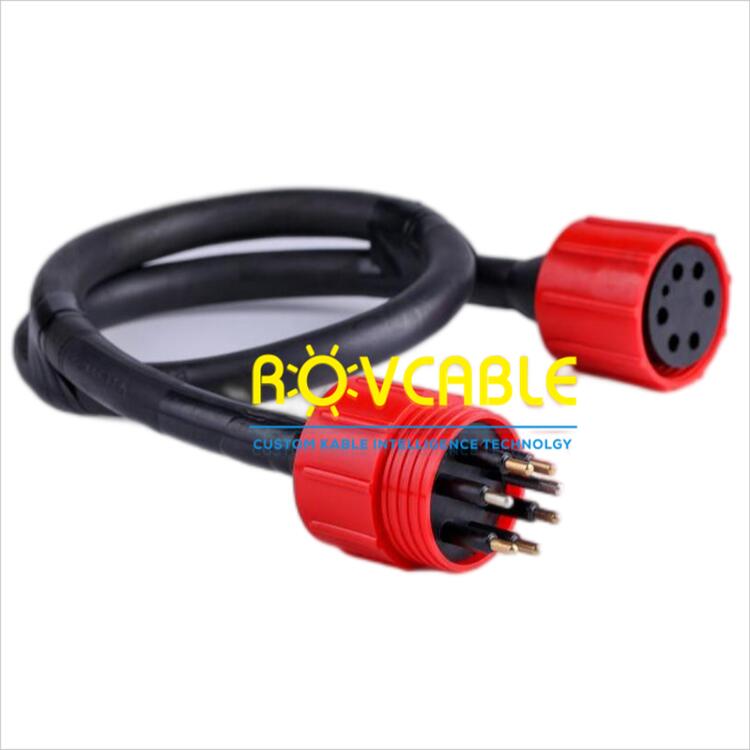

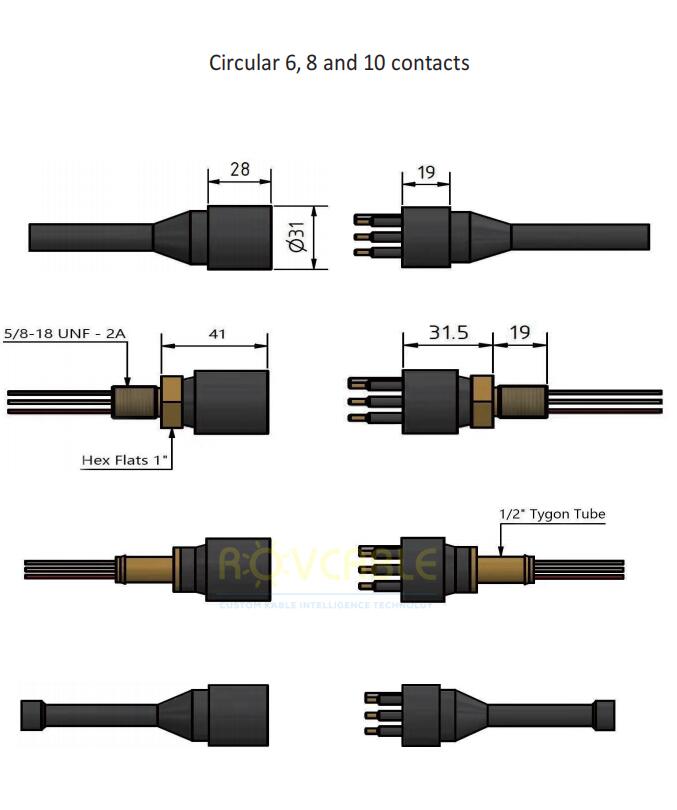

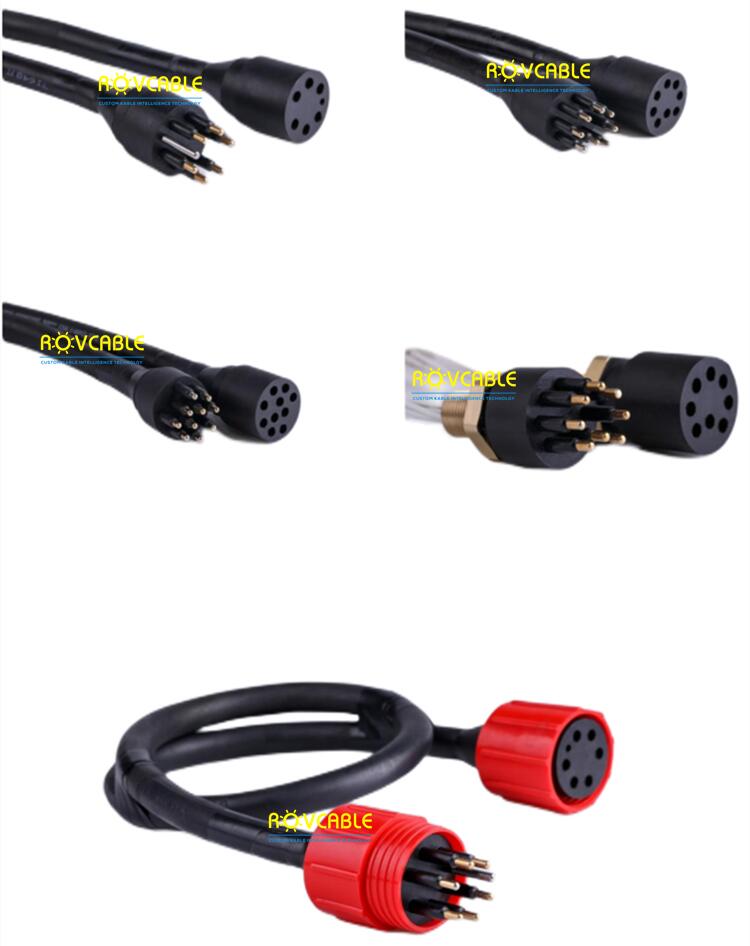

Circular Series 6, 8, and 10 Contact Underwater Connectors

The 6, 8, and 10-contact configurations of the Circular Series are the most common choices for mid-complexity ROV and AUV subsystems -- enough contacts to carry both power and data signals in a single connector without the bulk of higher-count formats. Shanghai Kabel Intelligence Technology Co., Ltd supplies these as both COBH bulkhead and COIL in-line variants with IP68, 7,000 m depth rating, and direct SubConn Circular interchangeability.

Specifications

• Depth: 7,000 m | IP68 | Voltage: 600 V AC/DC
• Shell: Anodized aluminium (standard) / Titanium (option)
• Insulator: PEEK | Contacts: Gold-plated copper alloy
• SubConn Circular 6/8/10-contact direct replacement

Applications

• ROV camera pan-tilt-zoom systems combining power + video + control
• Subsea sonar head power and multi-channel data
• AUV payload bay connectors carrying mixed power and signal
• Offshore subsea sensor nodes -- power + RS-232/485/CAN bus

Email: sales@rovcable.com | www.rovconnector.com

Frequently Asked Questions

Can 6, 8, or 10-pin COBH mate with a SubConn OEM COIL of the same count?

Yes. The mating face and thread are identical to SubConn Circular -- cross-brand mating works without any modification in the field.

Is titanium shell standard or special order?

Titanium Grade 5 shells are available on request for all contact counts. Add 2-3 weeks to standard lead time. Titanium is recommended for long-term deployments in warm or brackish water environments.

Applications

• ROV power and signal distribution systems requiring mixed-contact configurations
• Subsea control systems, offshore platform equipment and underwater instrumentation
• Marine renewable energy, oceanographic research and environmental monitoring
• Naval defense systems, sonar arrays and underwater communication networks
• Diving systems, underwater tools and remotely operated equipment connectivity

Customization Options

• Customised harness cables with direct moulding to selected polyurethane cables
• Customer-specified cable types, wire lead lengths and bulkhead thread dimensions
• Pressure-proof dummy connectors, locking sleeves and additional accessories
• Certified pressure testing to specific ocean depths with full documentation
